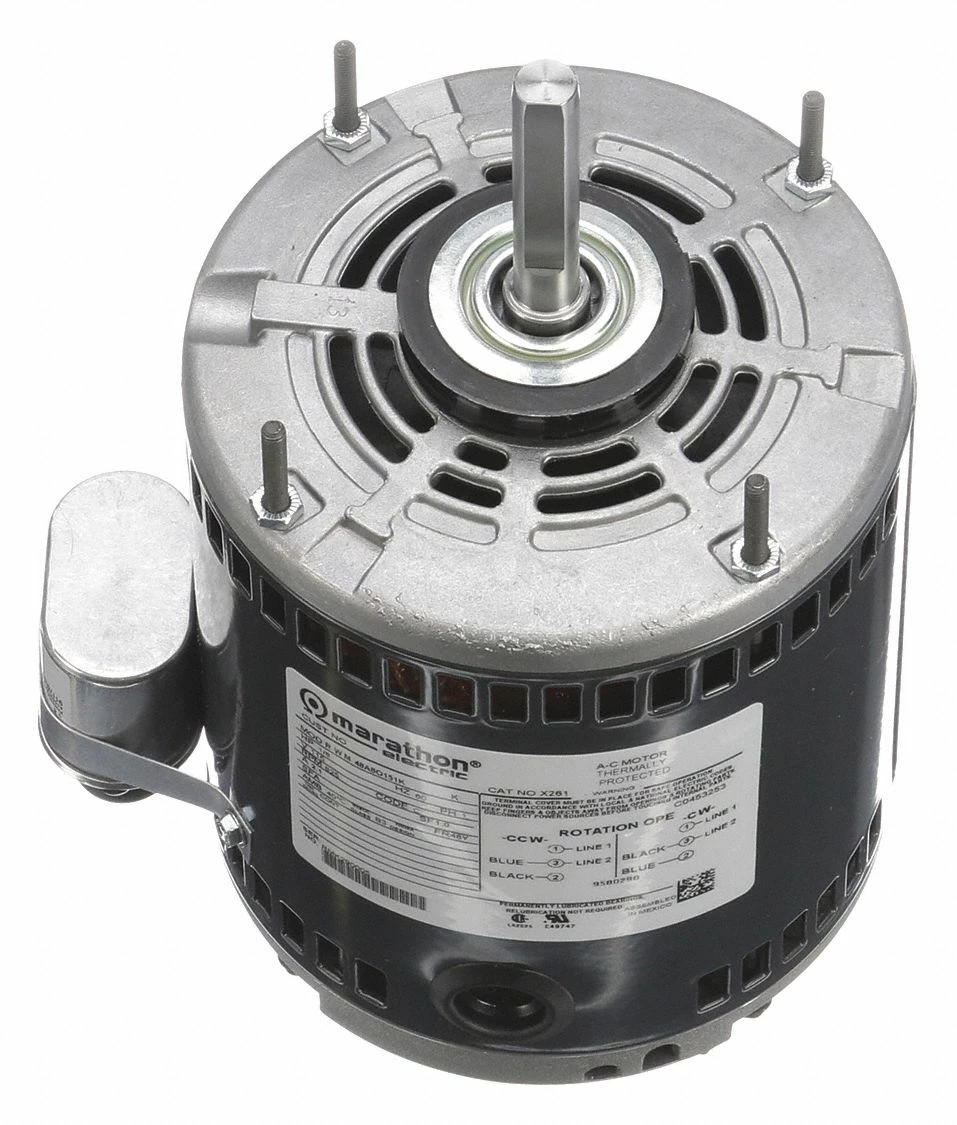

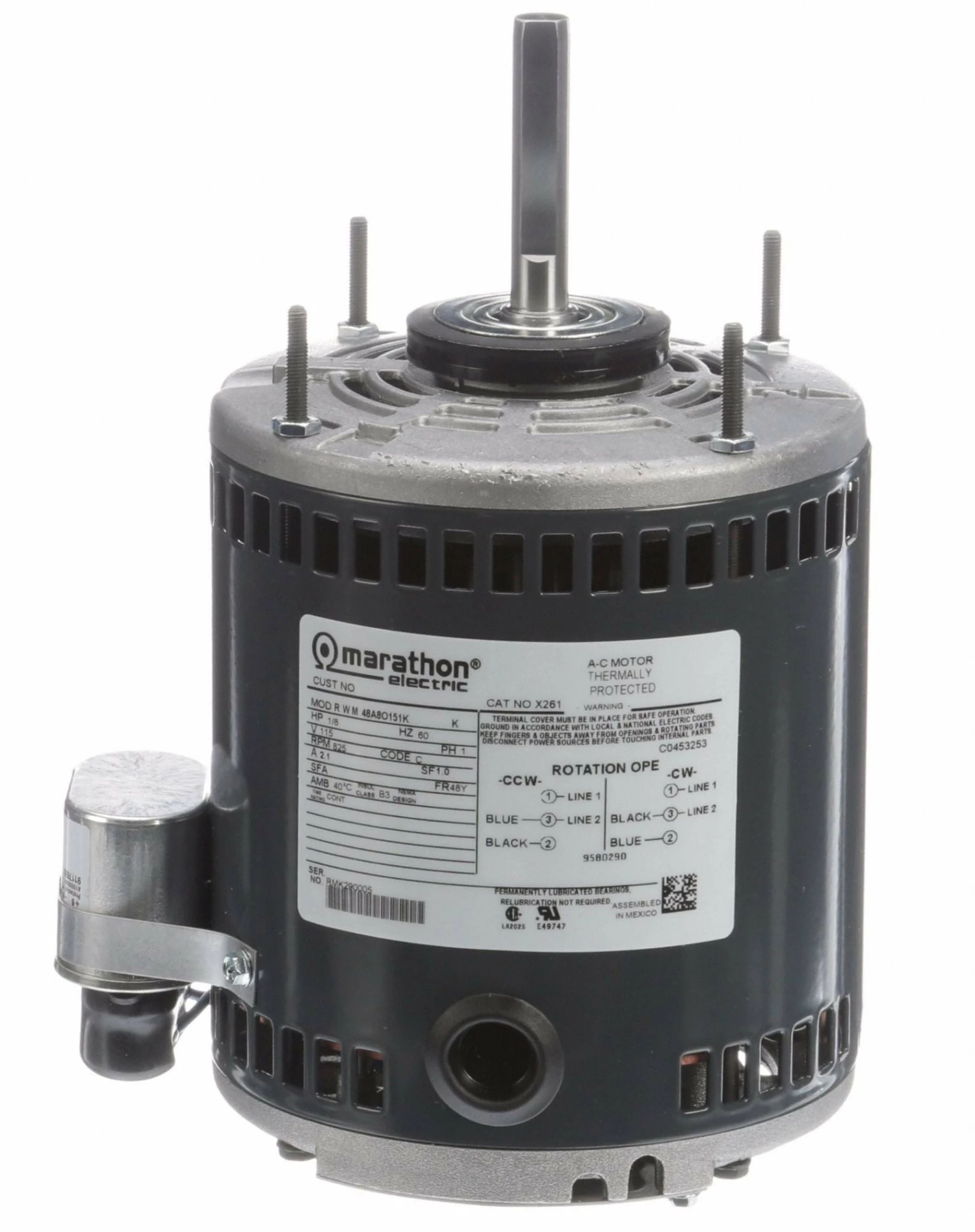

Marathon Motors OEM Replacement Motor, PSC, Open, 1/8 HP – 048A8O151

Direct Drive Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/8; No. of Speeds: 1; Voltage: 115; Motor Shaft Rotation: CW/CCW; Frame: 48Y; Motor Enclosure Design: Open; Motor Mounting Type: Stud; Shaft Dia.: 1/2 in; Shaft Length: 2 9/16 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 825; Motor Application: OEM Replacement; Motor Sub Application: Direct Drive Fan/Blower; Full Load Amps: 2.1; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Ball; Body Dia.: 5 11/16 in; Length Less Shaft: 7 1/2 in; Overall Length: 10 1/16 in; Stud Size: 10-32 UNF -2A; Capacitor Required: Included; Application: Fans and Blowers; Standards: CSA Certified (LR2025), UL Recognized (E6312)
