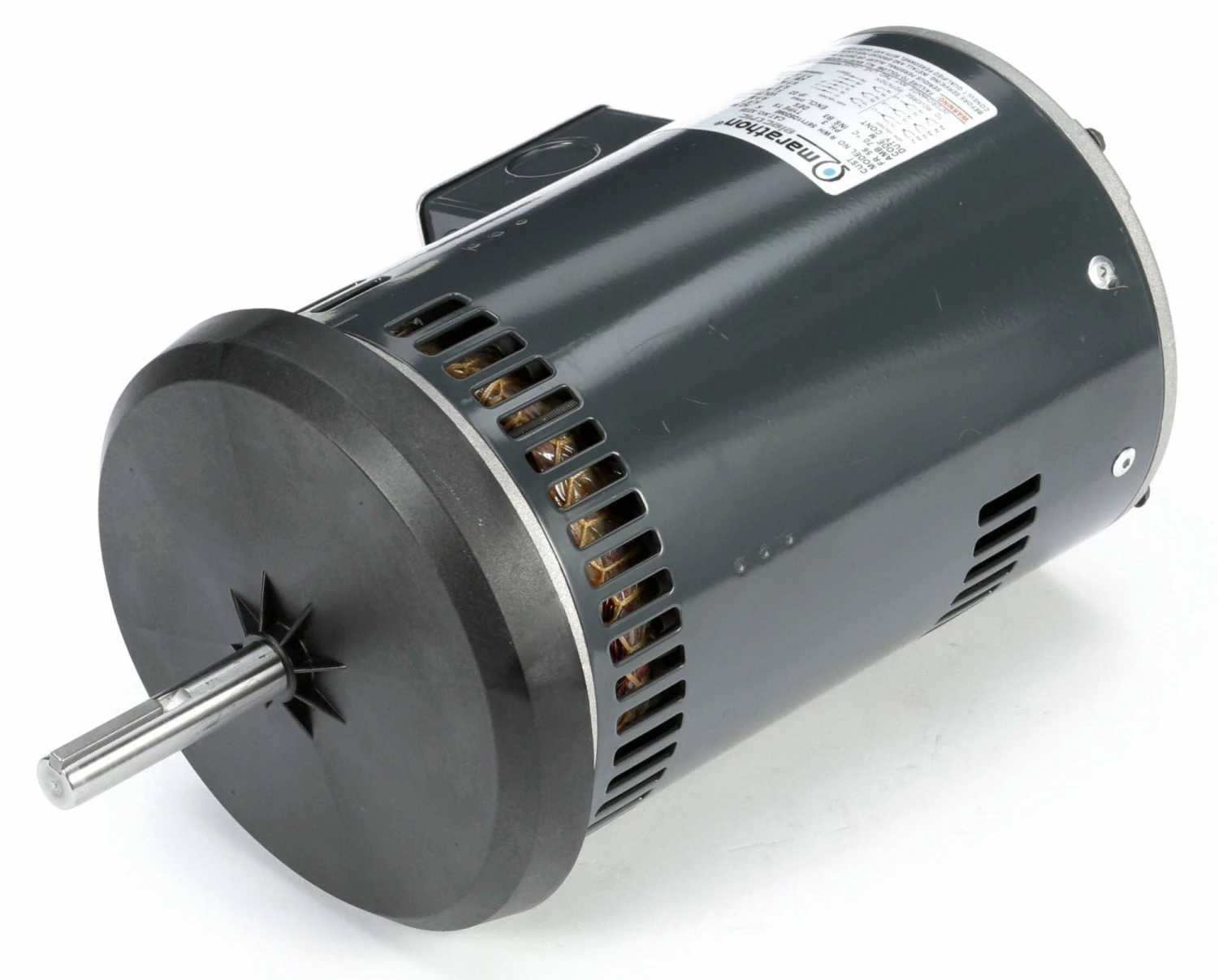

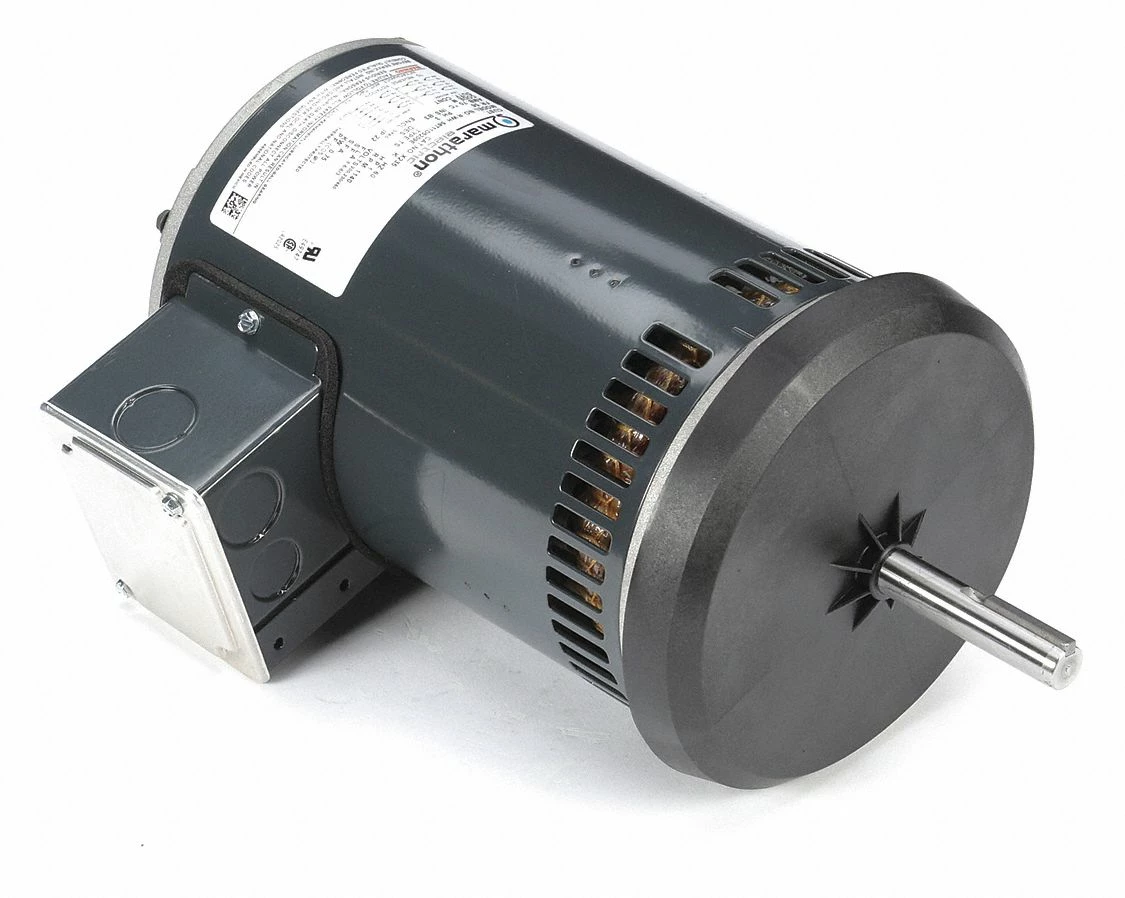

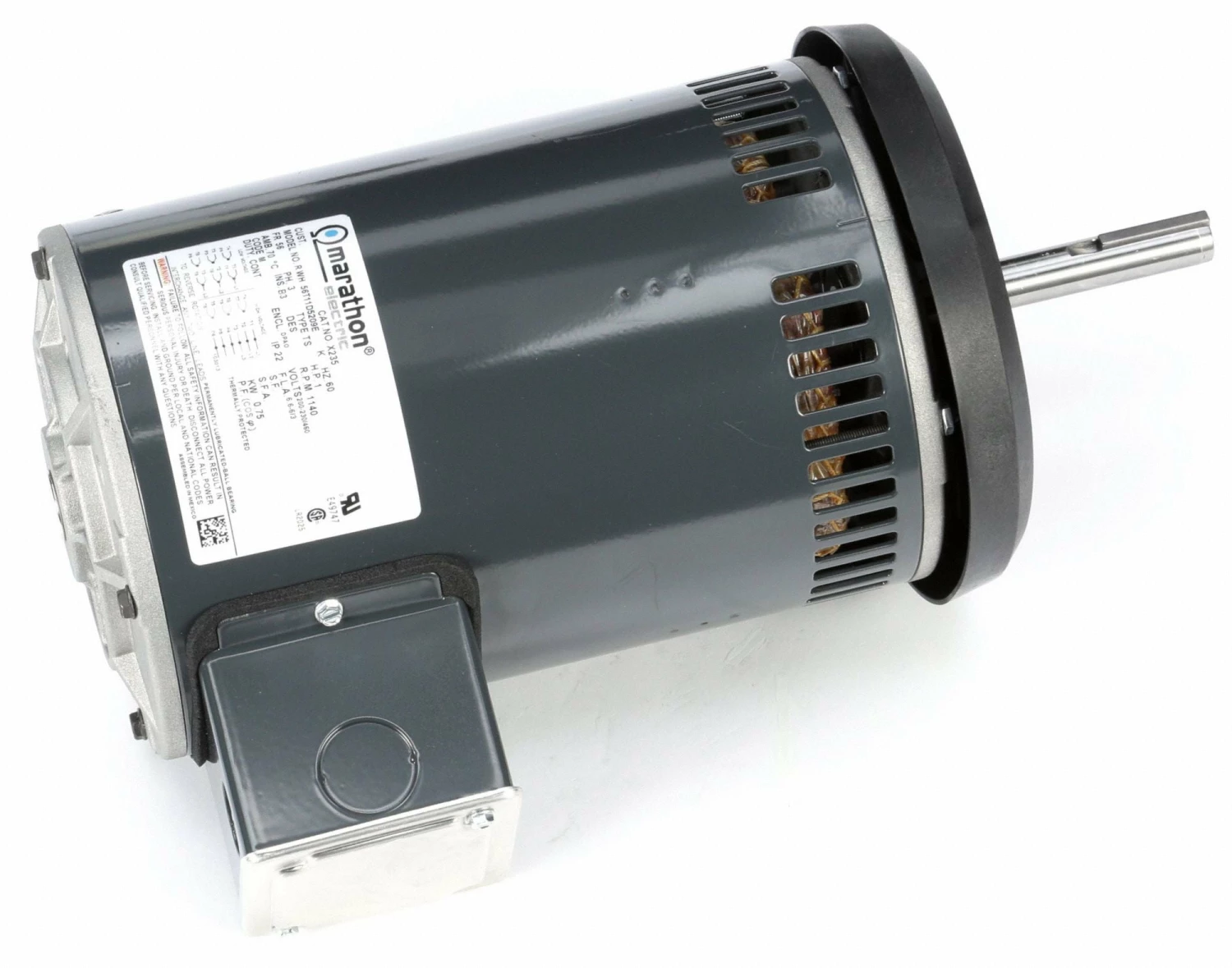

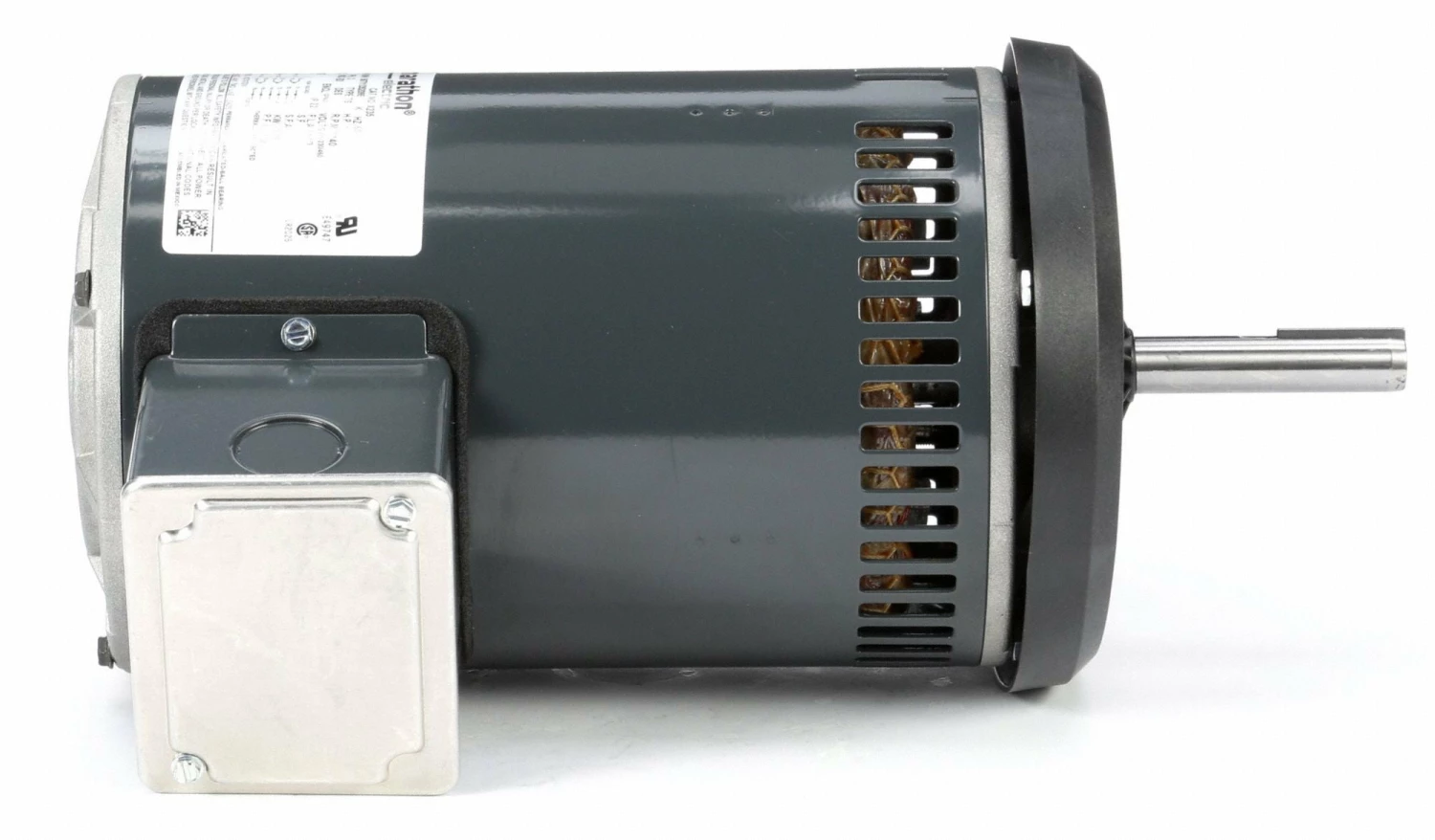

Marathon Motors OEM Replacement Motor, 3-Ph, 1 HP – 056T11D5209
Original price was: $339.00.$97.99Current price is: $97.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Direct Drive Motor; Motor Design: 3-Phase; Phase: 3; HP: 1; No. of Speeds: 1; Voltage: 200-230/460; Motor Shaft Rotation: CW/CCW; Frame: 56; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Band; Shaft Dia.: 5/8 in; Shaft Length: 3 3/4 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1140; Motor Application: OEM Replacement; Motor Sub Application: Direct Drive Fan/Blower; Full Load Amps: 6.6-6/3; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Ball; Body Dia.: 7 1/16 in; Length Less Shaft: 11 in; Overall Length: 14 13/16 in; Stud Size: 10-32 UNF -2A; Capacitor Required: No; Application: Fans and Blowers; Standards: CSA Certified (LR2025), UL Recognized (E6312)
