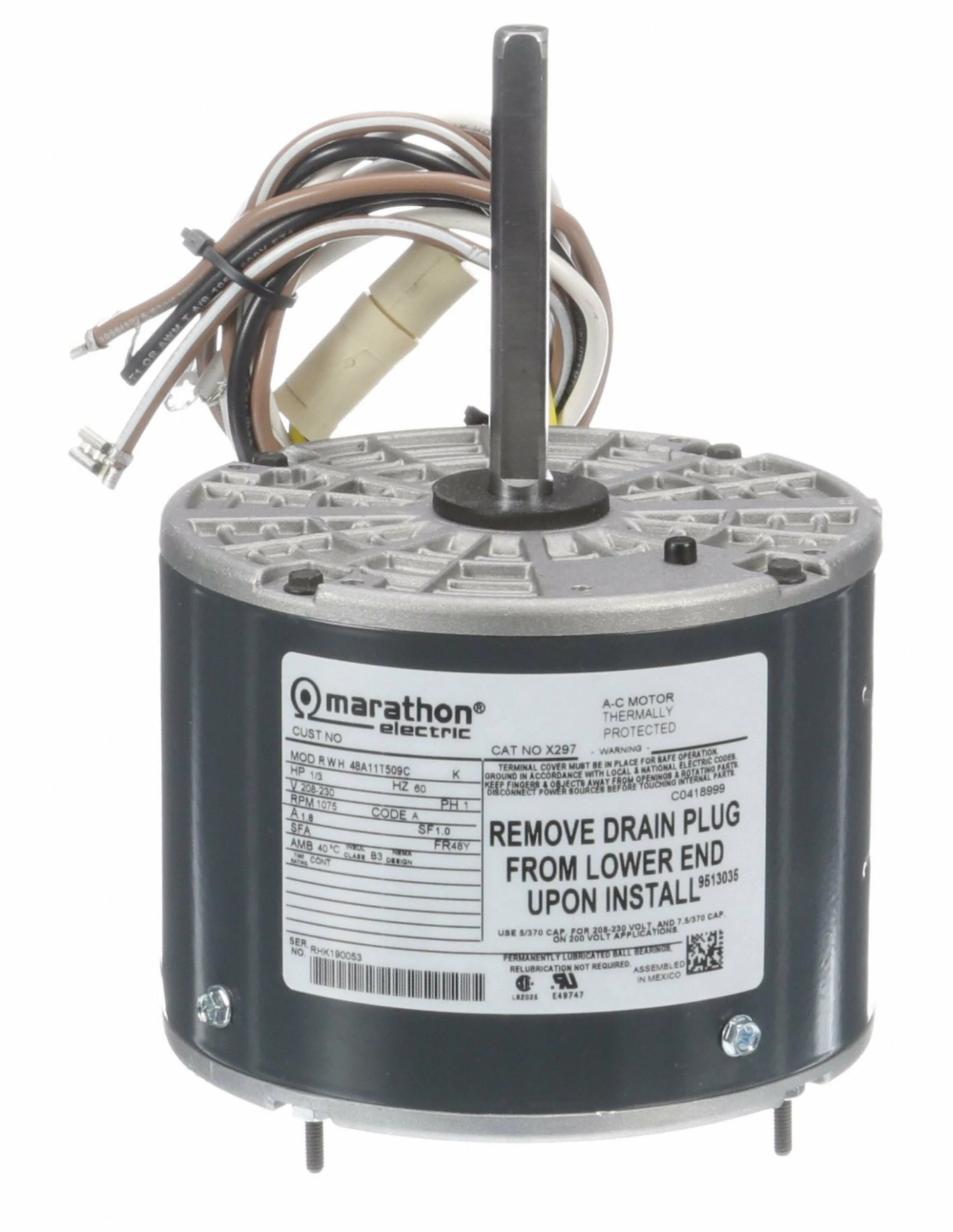

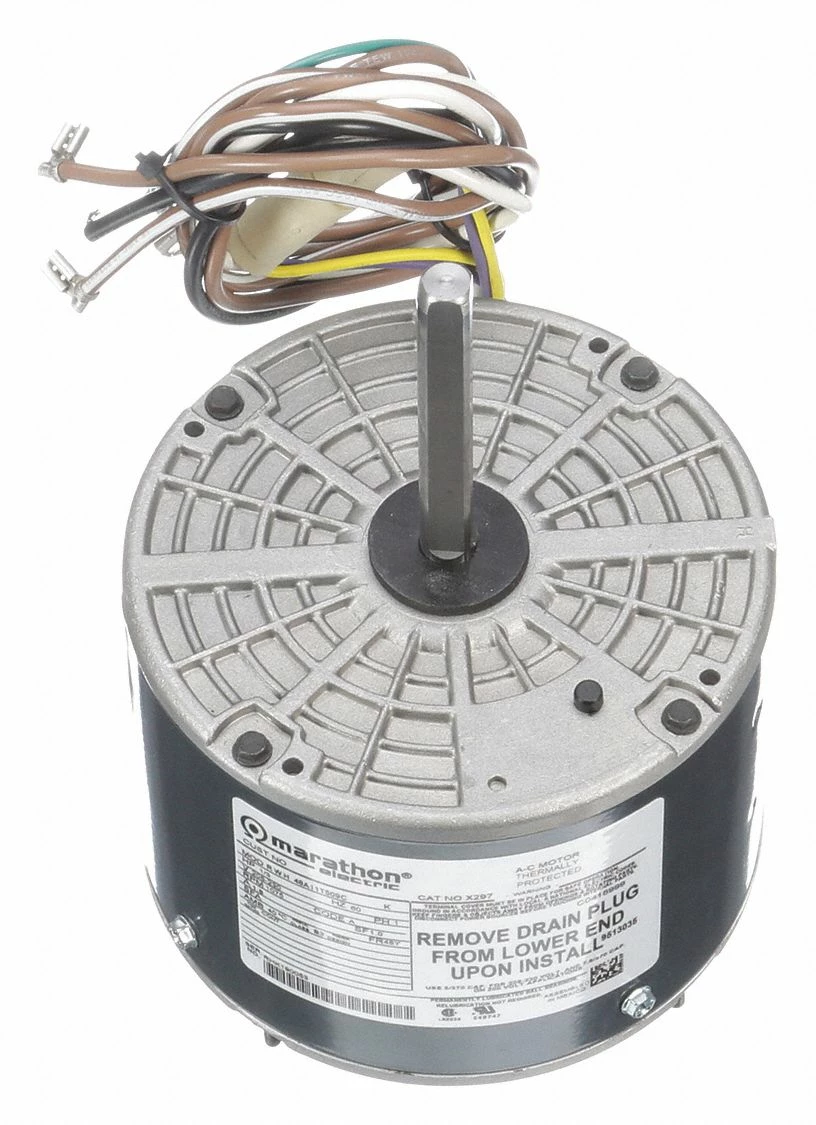

Marathon Motors Cond Fan Mtr, PSC, TEAO, 1/3HP, 1Ph, 1075 Rpm – 048A11T509
Original price was: $205.10.$97.99Current price is: $97.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Direct Drive Blower Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/3; No. of Speeds: 1; Voltage: 208-230; Motor Shaft Rotation: CW/CCW; Frame: 48Y; Motor Enclosure Design: Totally Enclosed Air-Over; Motor Mounting Type: Stud; Shaft Dia.: 1/2 in; Shaft Length: 3 13/16 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1075; Motor Application: HVAC/R; Motor Sub Application: Condenser Fan; Full Load Amps: 1.8; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Ball; Motor Shaft Design: Flat; Body Dia.: 5 11/16 in; Length Less Shaft: 4 1/4 in; Overall Length: 8 1/16 in; Bolt Circle Dia.: 5 1/8 in; Mounting Stud Pattern: 3-5/8 in x 3-5/8 in; Stud Size: #8-32; Capacitor Required: 2MDV4; Application: General Purpose; Manufacturers Warranty Length: 1 yr; Standards: UL Recognized ( E6312); CSA Certified(LR2025); Duty: Continuous
