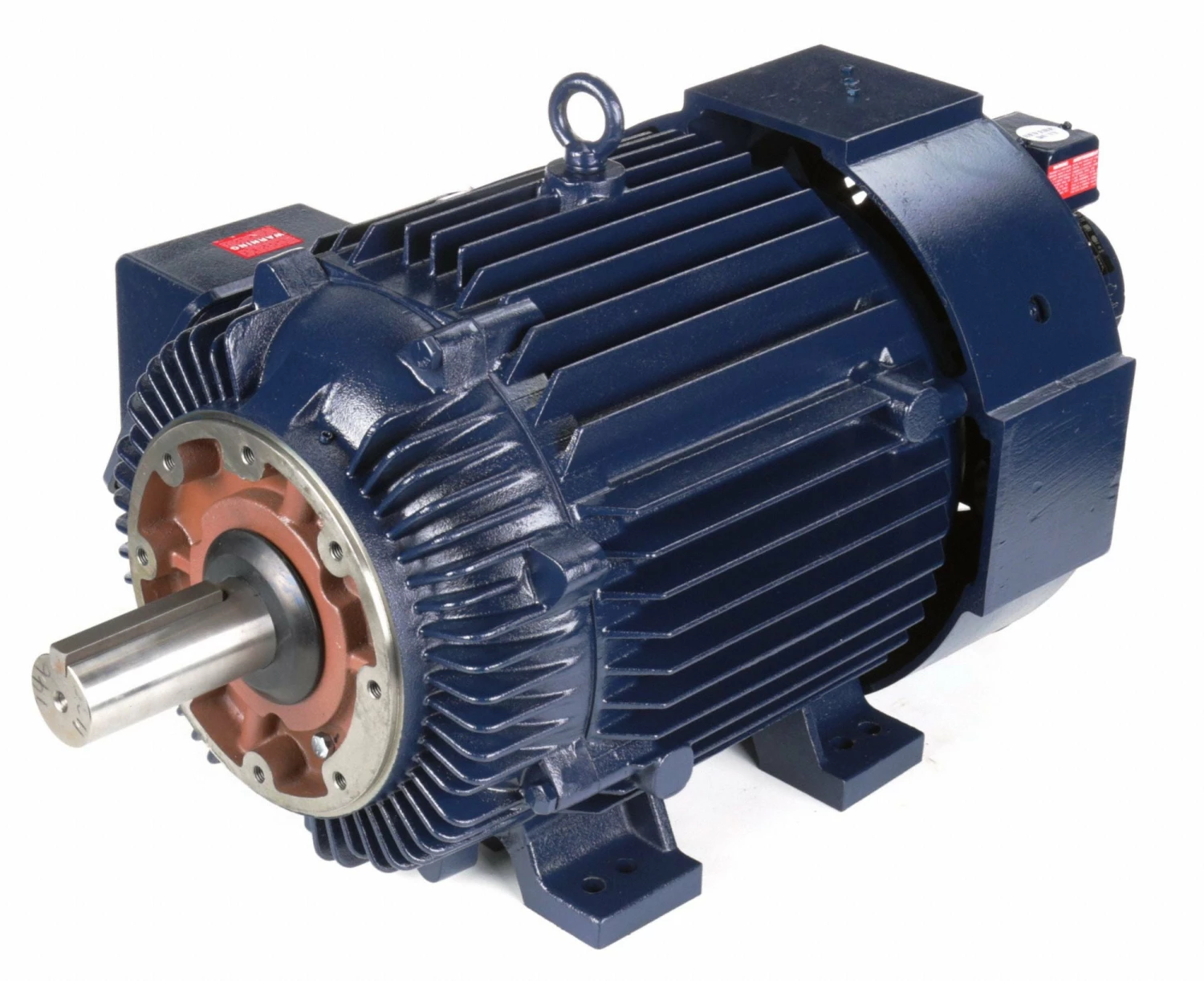

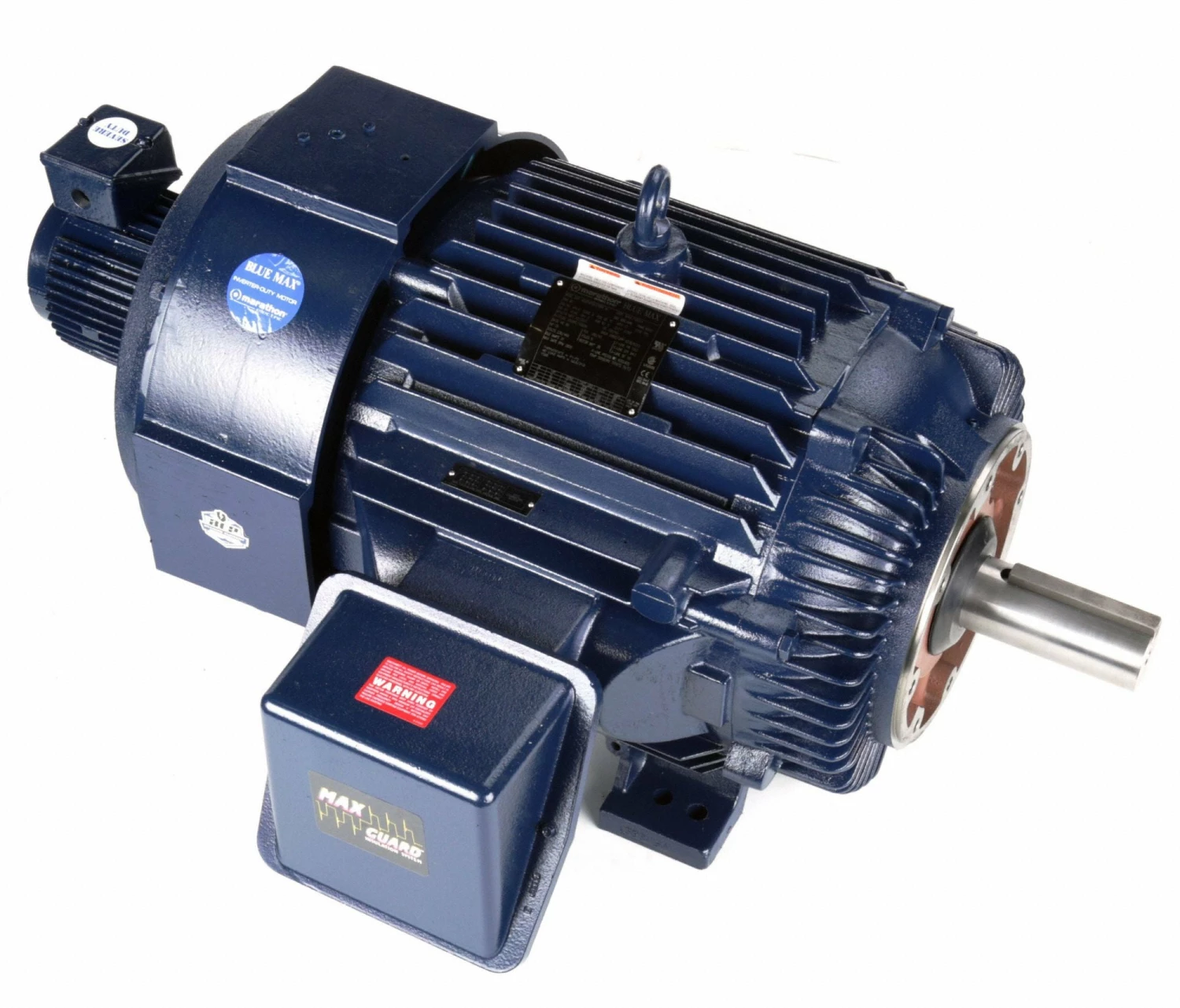

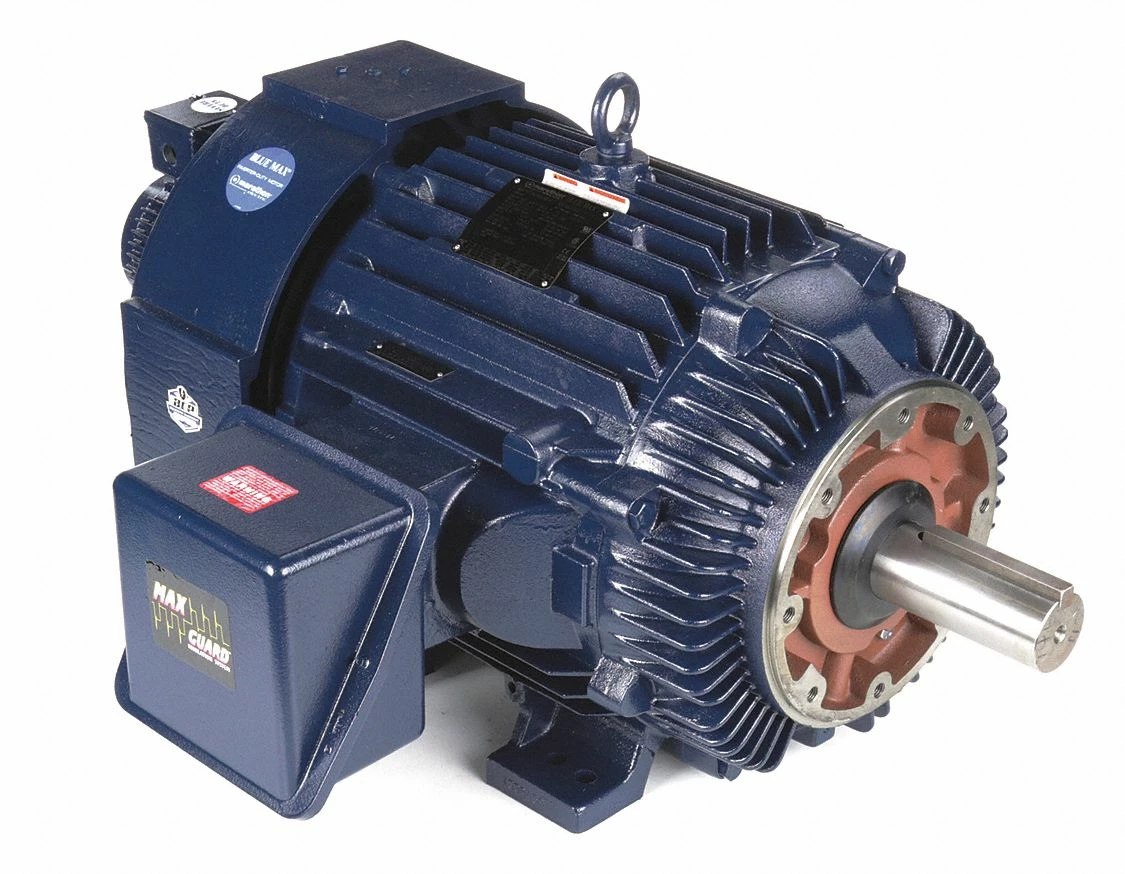

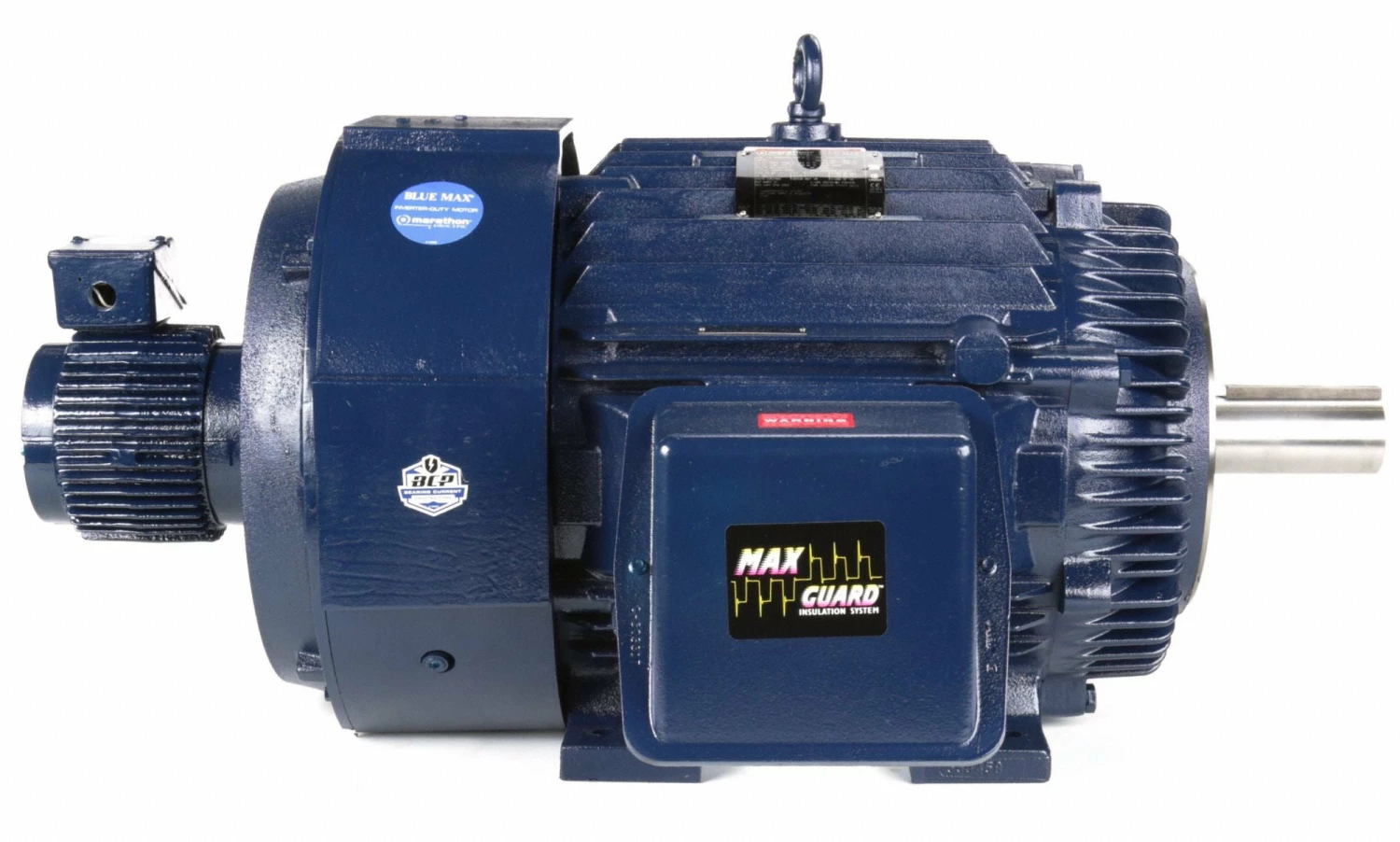

Marathon Motors 75 HP Vector Motor,3-Phase,1185 Nameplate RPM,230/460 Voltage,Frame 405TC – 405THFS8378
Original price was: $362.00.$98.99Current price is: $98.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Blower-Cooled; HP: 75; Nameplate RPM: 1185; Speed Range: 2000:1 CT; Max. Speed: 2,800 RPM; Frame: 405TC; Max. Operating Frequency: 90 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 180/90; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: H; Insulation Feature: Class F; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 61.4 %; Motor Efficiency Group: Energy Efficient; NEMA Design: B; Motor Frame Material: Cast Iron; Finish: Blue Enamel; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 1 in x 1-3/4 in; Motor Shaft Design: Keyed; Shaft Dia.: 2 7/8 in; Shaft Length: 7 in; Overall Length: 49 3/4 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); Warranty: 3 yr; RPM Range: 1101-1200; Voltage Compatibility: 220-230/460, 230/460, 460
