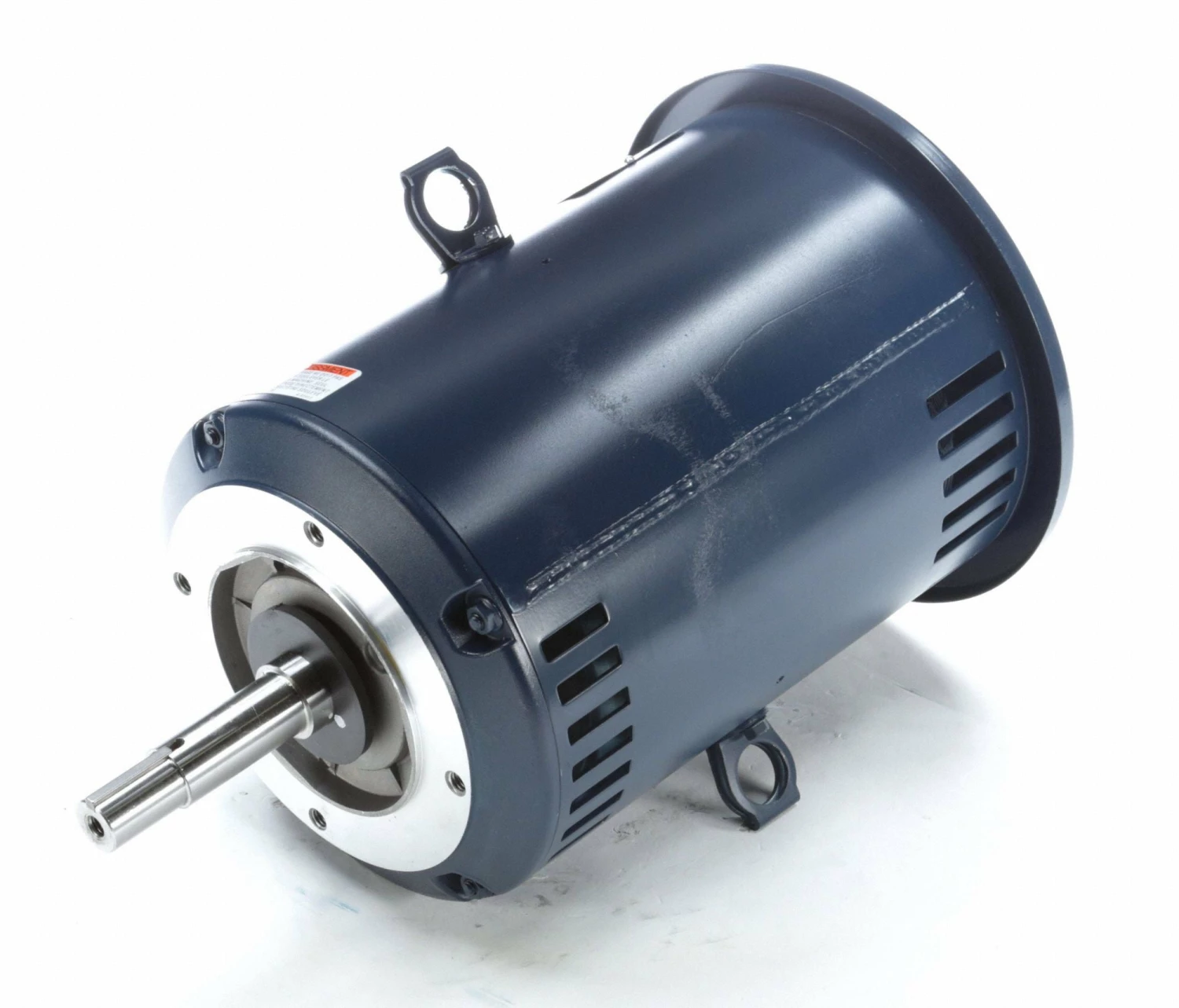

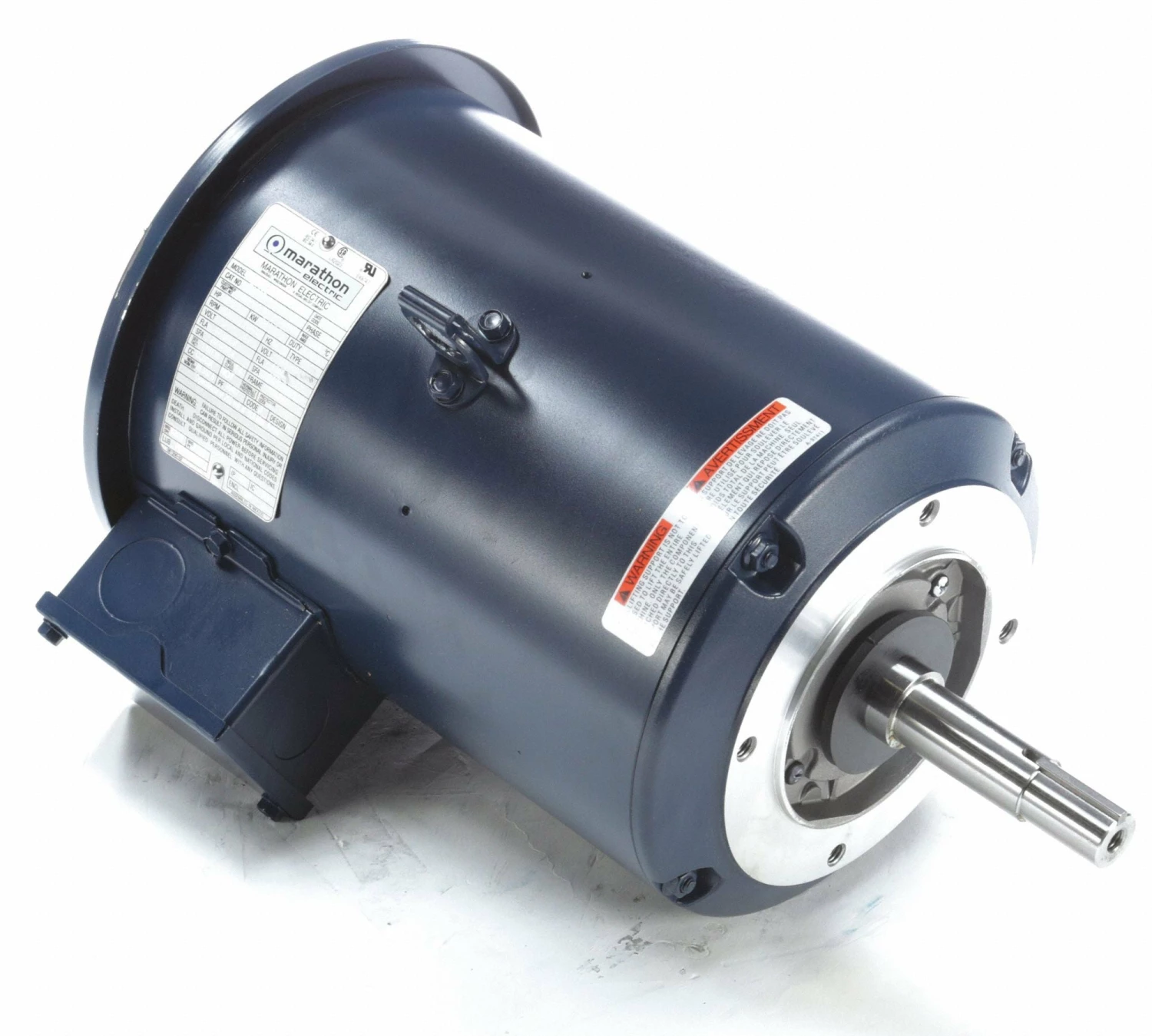

Marathon Motors 7 1/2 HP Close-Coupled Pump Motor,3-Phase,3490 Nameplate RPM,230/460 Voltage,184JMV – 184TTDW16310
Original price was: $379.00.$98.99Current price is: $98.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 7 1/2; Nameplate RPM: 3490; Frame: 184JMV; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 17.8/8.9; Phase: 3; Hz: 60/50; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 4 1/8 in; Motor Shaft Design: Keyed and Drilled On Center; Length Less Shaft: 13 in; Overall Length: 17 1/8 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 88.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: No; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
