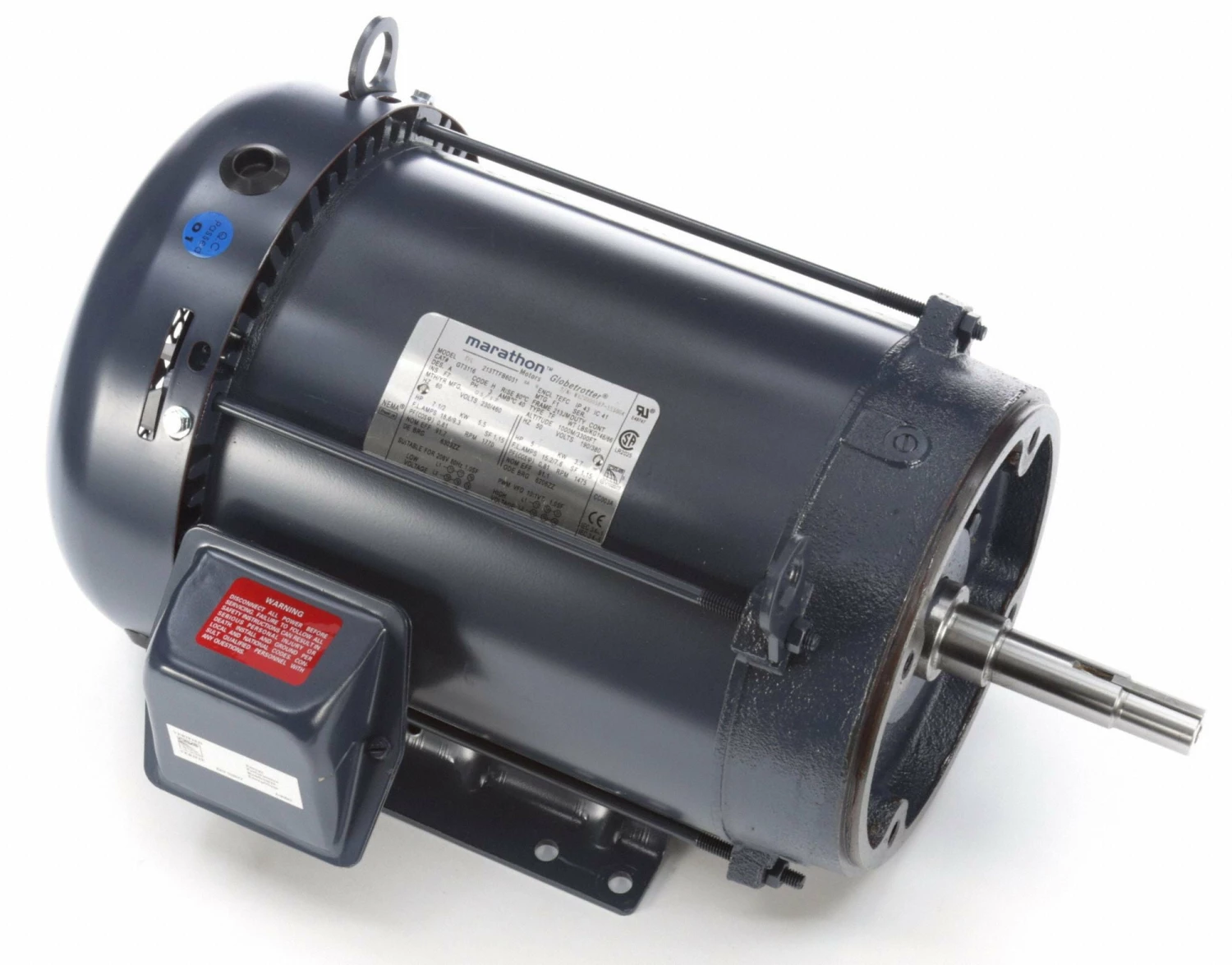

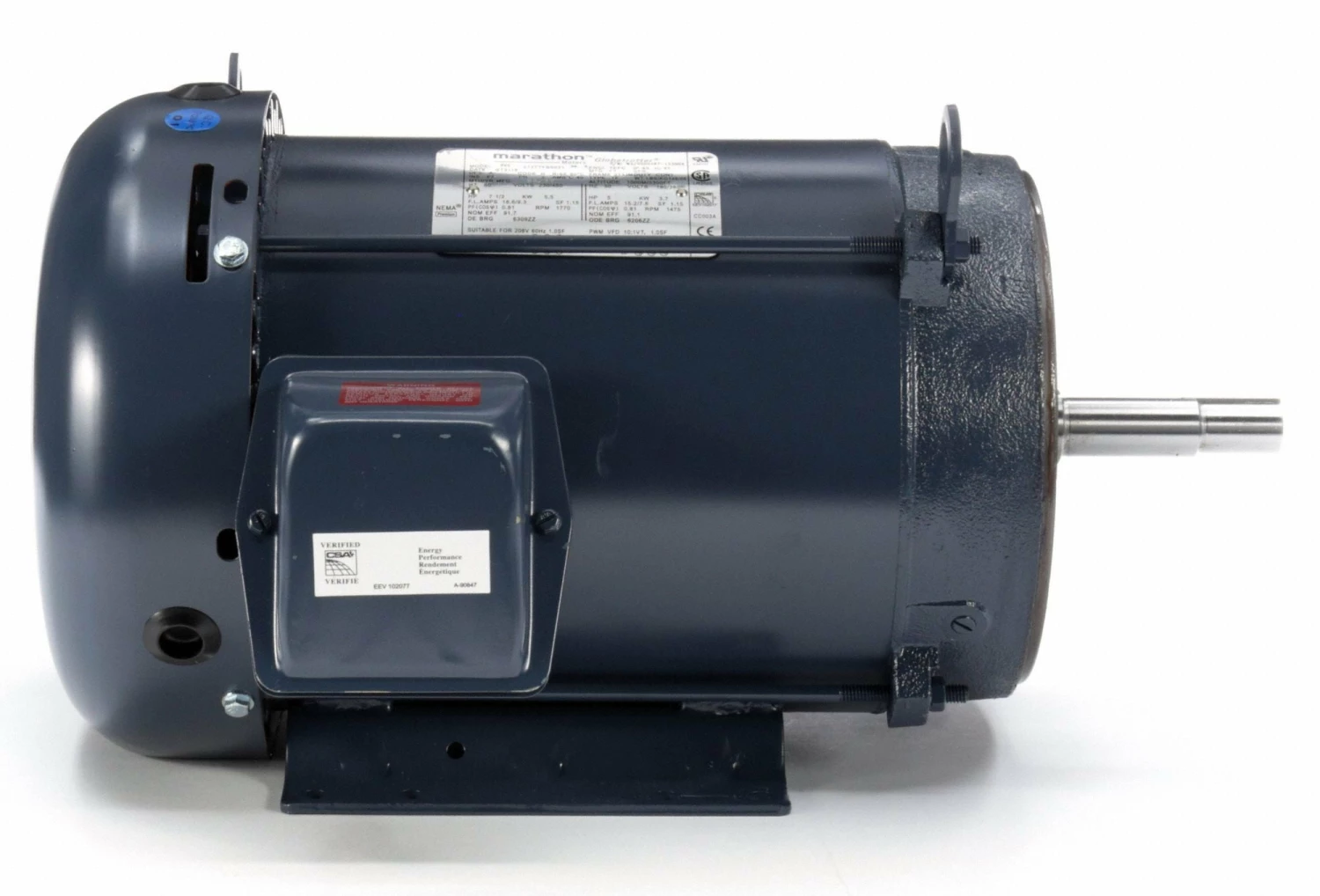

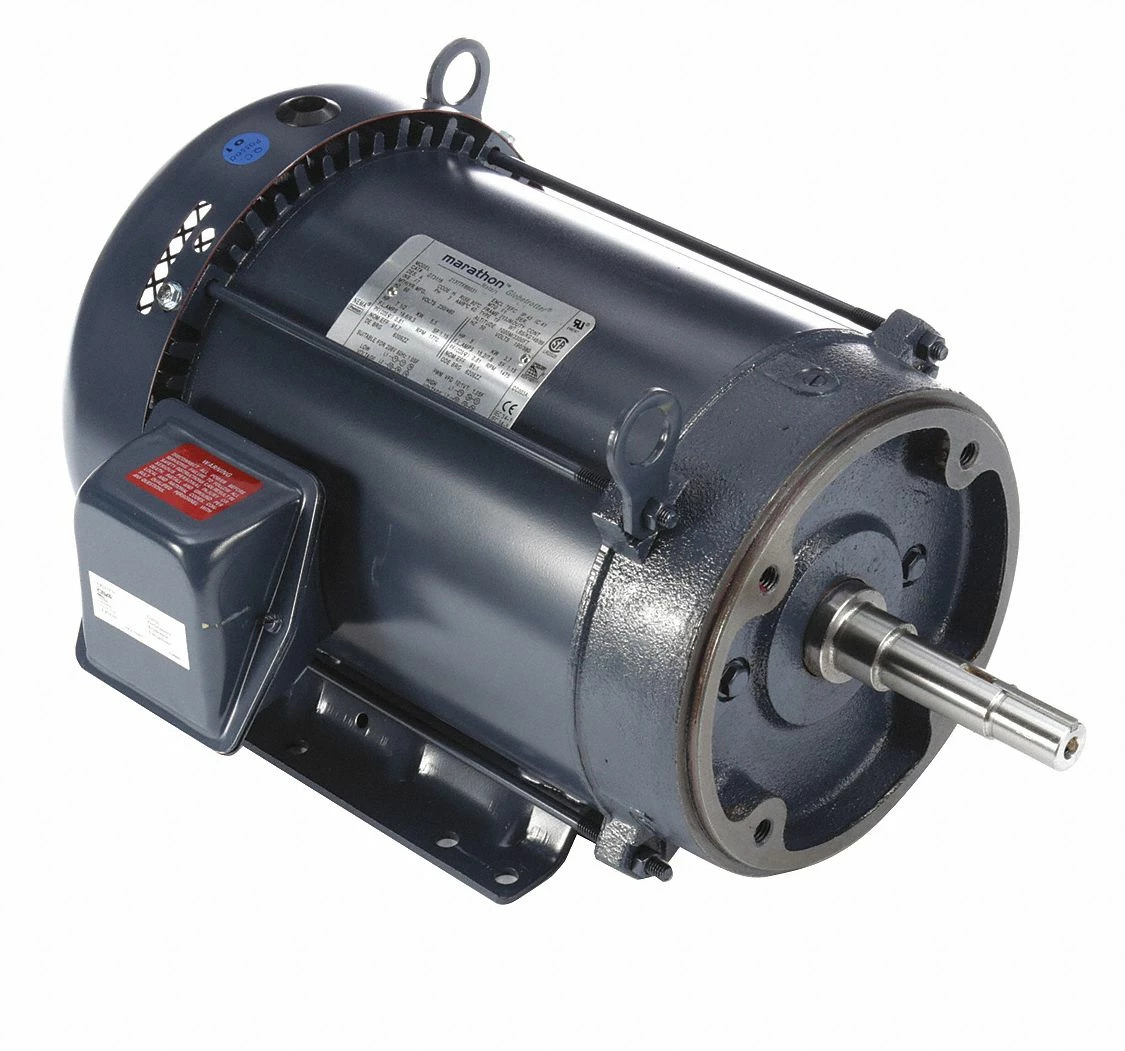

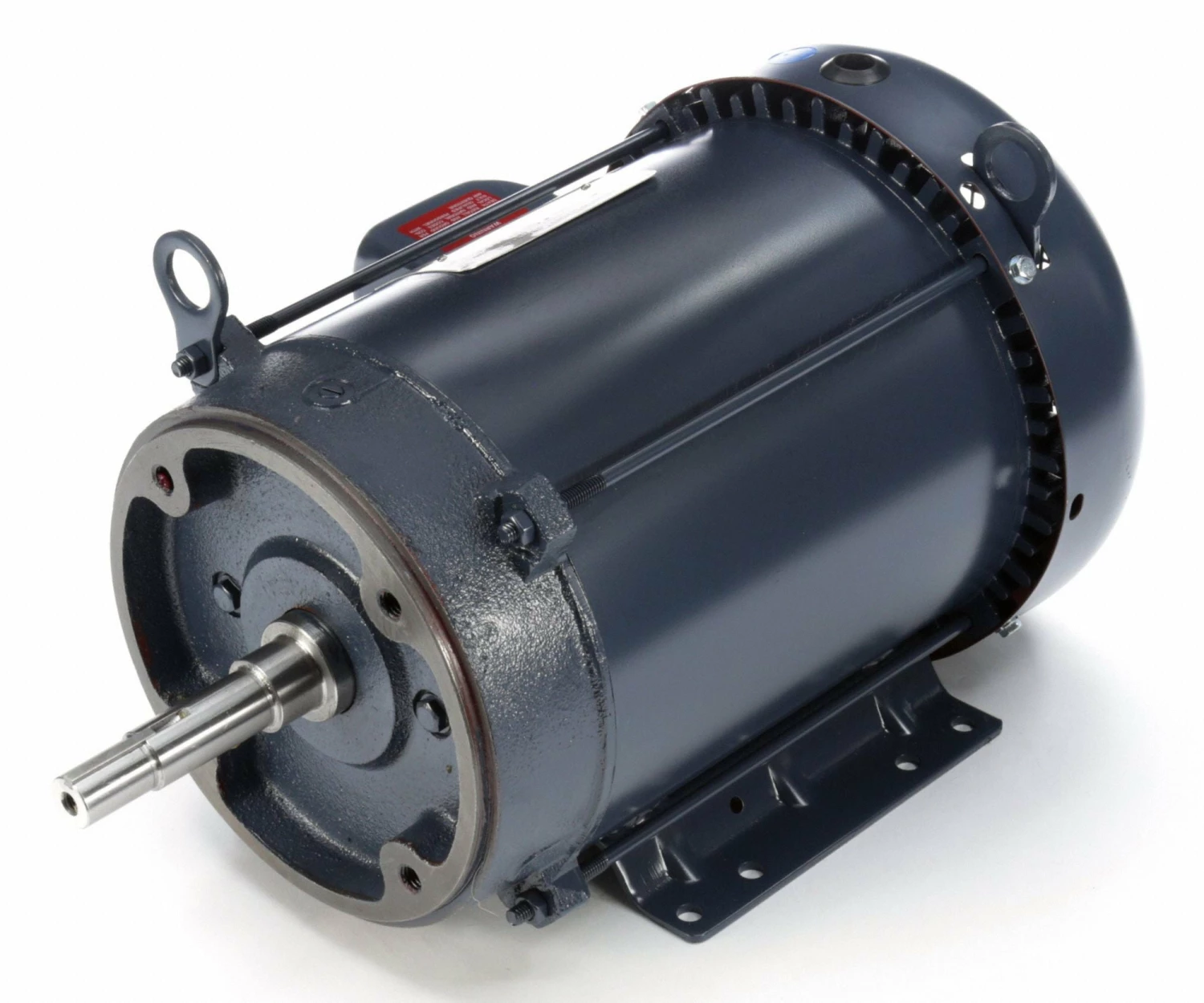

Marathon Motors 7 1/2 HP Close-Coupled Pump Motor,3-Phase,1770 Nameplate RPM,230/460 Voltage,213JM – 213TTFBD6031
Original price was: $316.00.$99.99Current price is: $99.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 7 1/2; Nameplate RPM: 1770; Frame: 213JM; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 18.6/9.3; Phase: 3; Hz: 60/50; Motor Mounting Type: Face/Base; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 4 1/4 in; Motor Shaft Design: Keyed; Length Less Shaft: 16 3/8 in; Overall Length: 20 5/8 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 86.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: Yes; Standards: CE Compliant, CSA (LR2025), UL (E49747); Voltage Compatibility: 220-230/460, 230/460, 460
