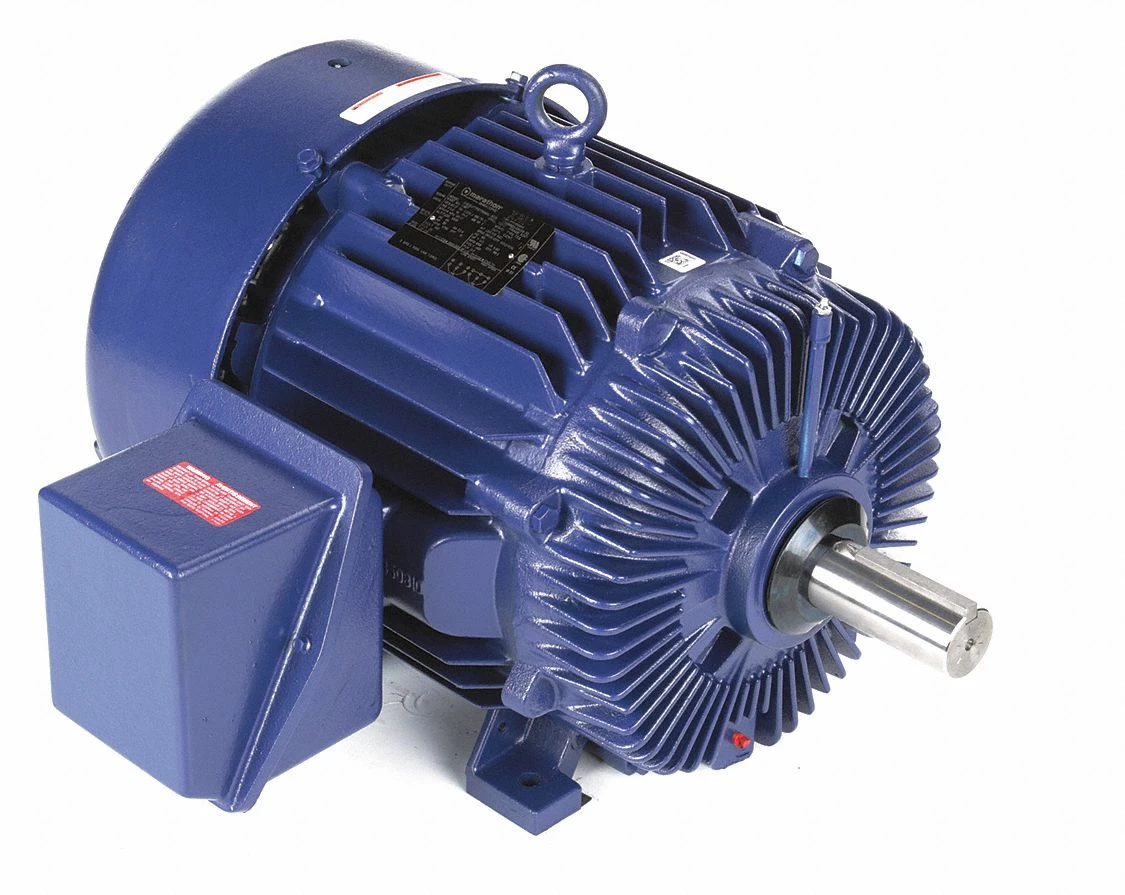

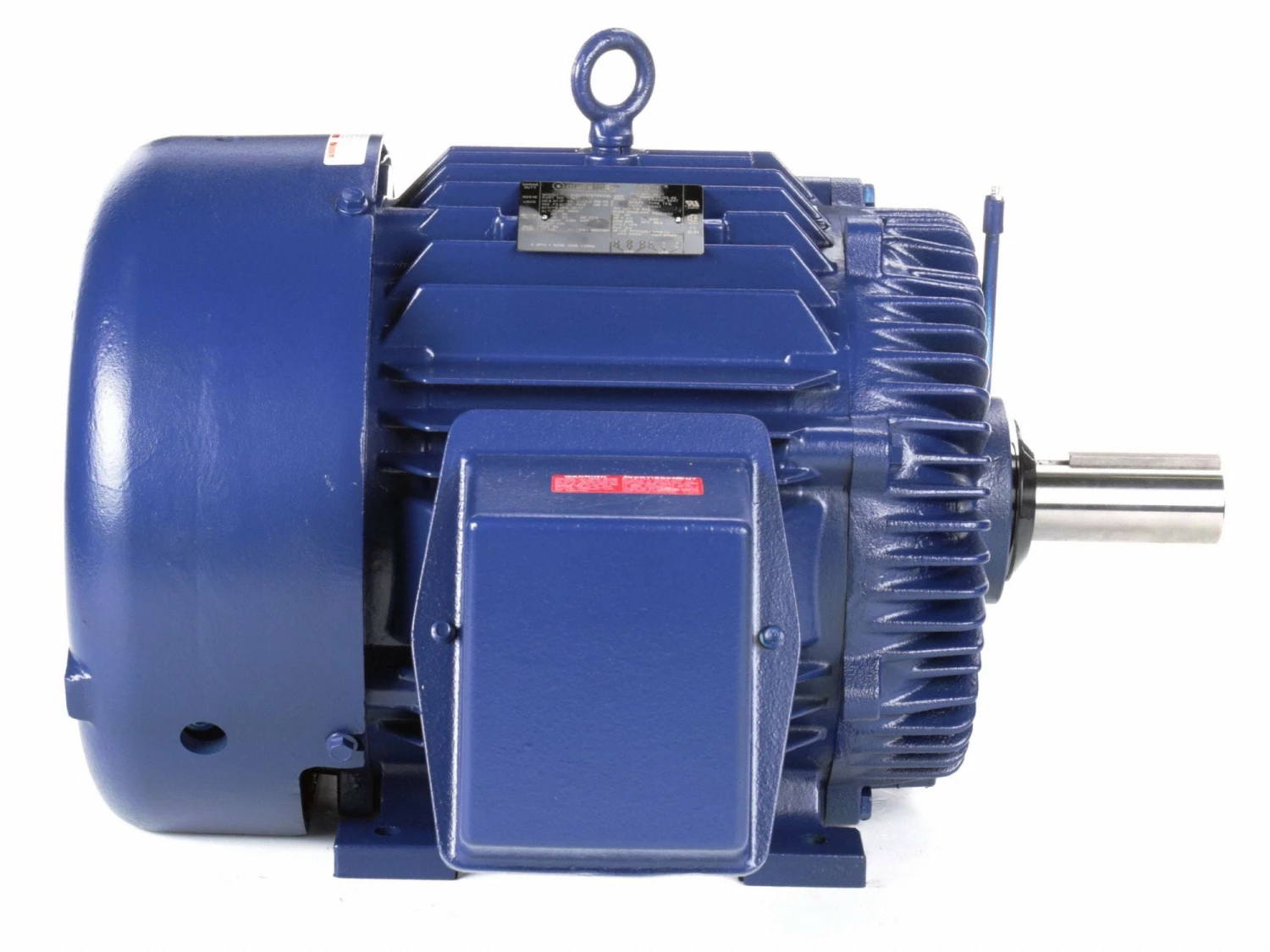

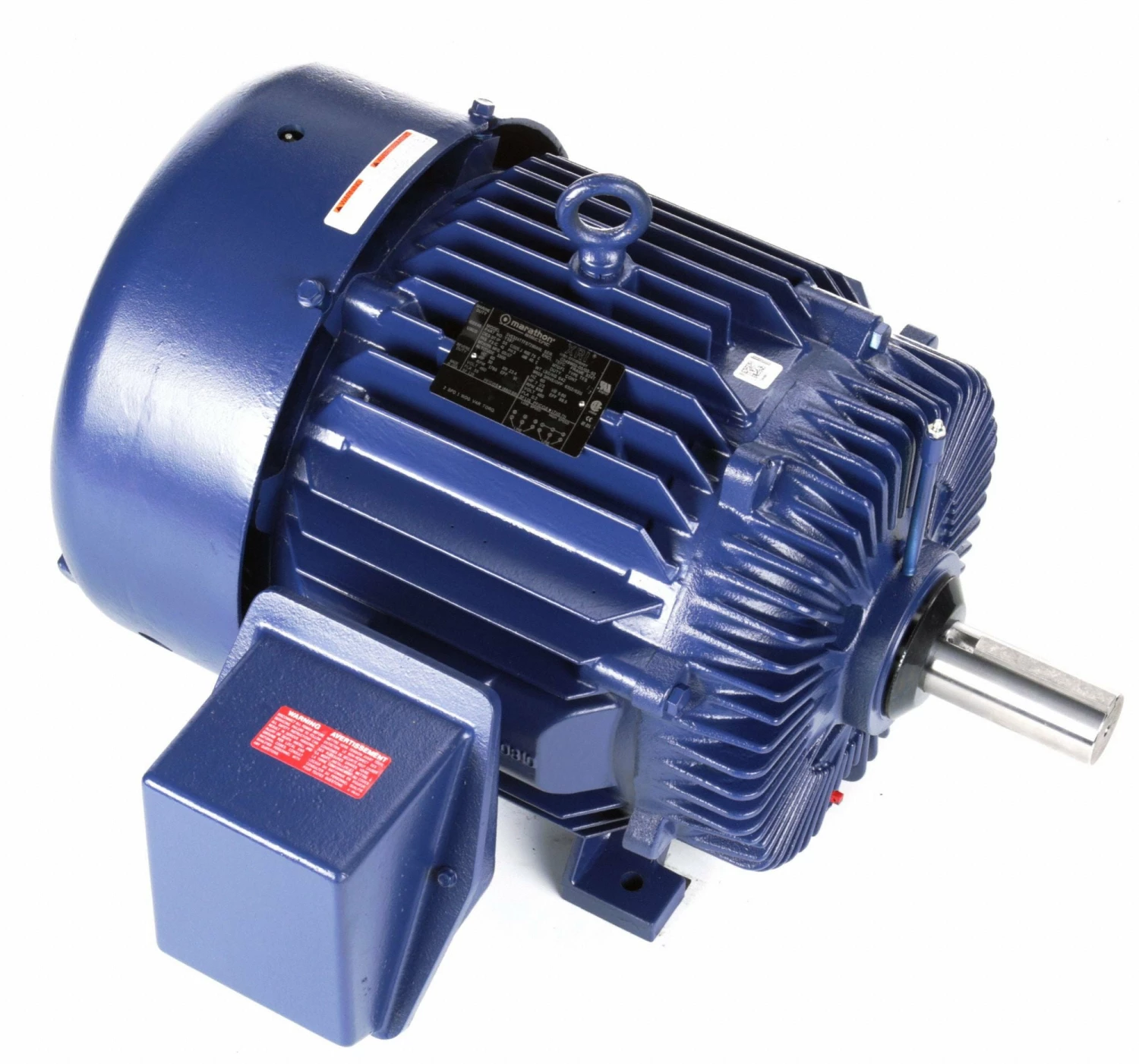

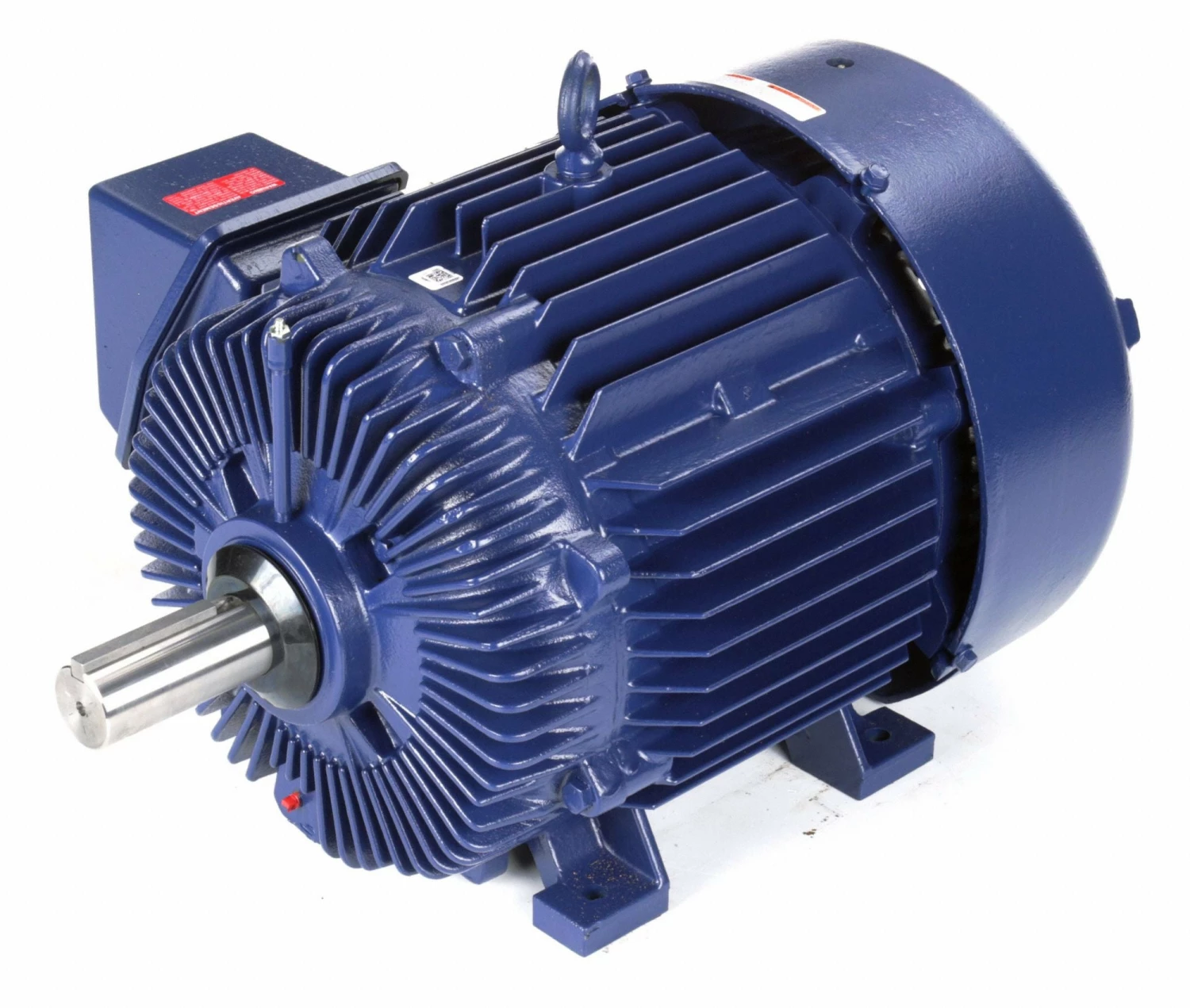

Marathon Motors 7 1/2, 30 HP Cooling Tower Motor,3-Phase,1785/888 Nameplate RPM,230/460 Voltage,Frame 324T – 324TTFS7290
Original price was: $307.00.$97.99Current price is: $97.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 7 1/2, 30; Nameplate RPM: 1785/888; Frame: 324T; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 35/11.2; Phase: 3; Hz: 60; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 2 1/8 in; Shaft Length: 5 1/2 in; Length Less Shaft: 23 3/8 in; Overall Length: 28 7/8 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 95.8 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Blue Epoxy; Standards: CSA (LR2025), UL (E49747); Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 208-230/460, 460
Be the first to review “Marathon Motors 7 1/2, 30 HP Cooling Tower Motor,3-Phase,1785/888 Nameplate RPM,230/460 Voltage,Frame 324T – 324TTFS7290”
