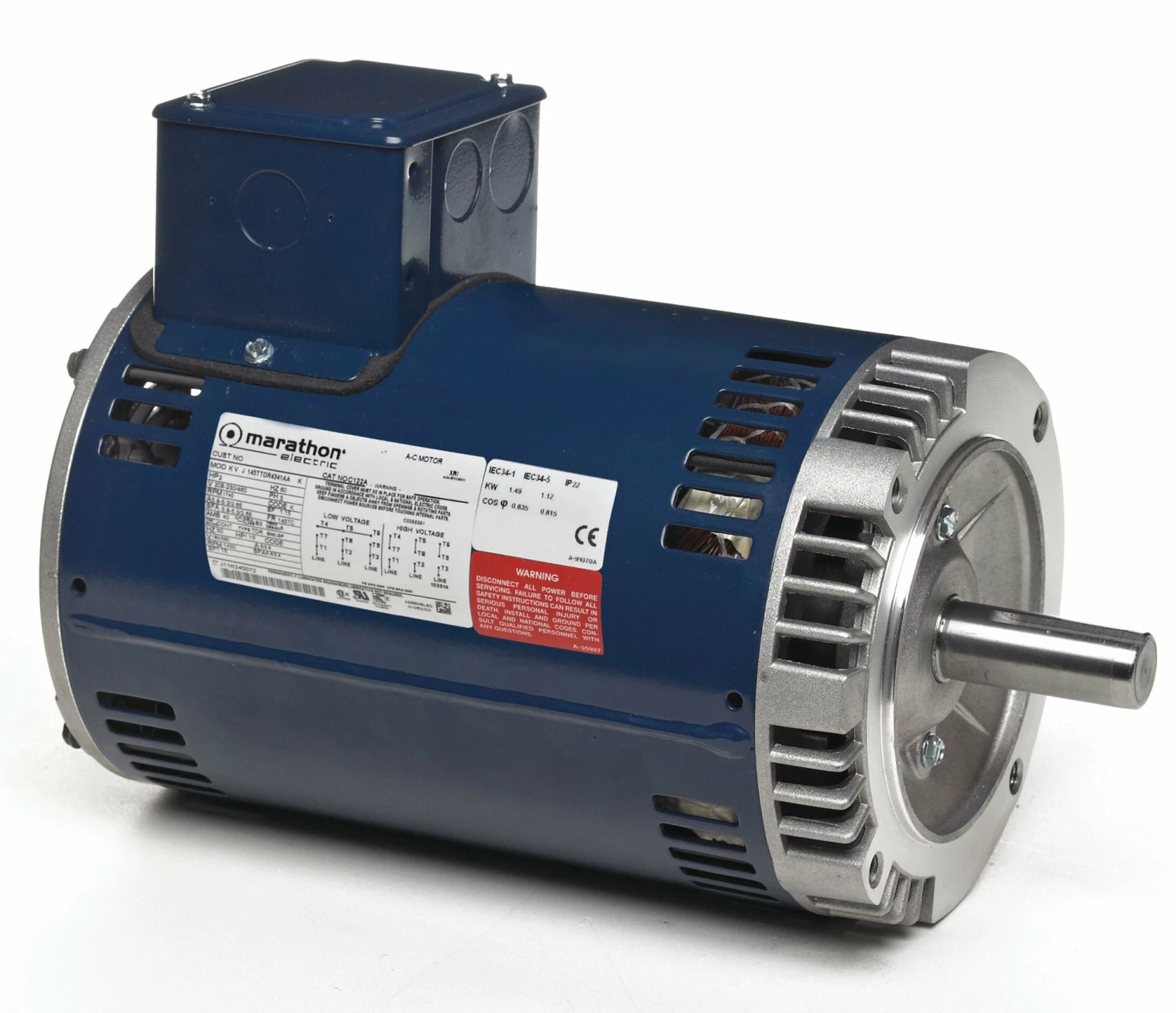

Marathon Motors 5 HP, General Purpose Motor, 3-Phase, 3500 Nameplate RPM, 230/460 Voltage, 182TC Frame – 182TTDBD6004
Original price was: $393.00.$99.99Current price is: $99.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 5; Nameplate RPM: 3500; Frame: 182TC; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 12.4/6.2; No. of Speeds: 1; Motor Mounting Type: Face; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 1/8 in; Shaft Length: 2 5/8 in; Length Less Shaft: 11 in; Overall Length: 13 3/4 in; Motor Shaft Design: Keyed; Standards: CE, CSA (LR2025), UL (E49747); Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 89.5 %; CC Number: CC003A; Inverter Rated: No; Manufacturers Warranty Length: 1 yr
