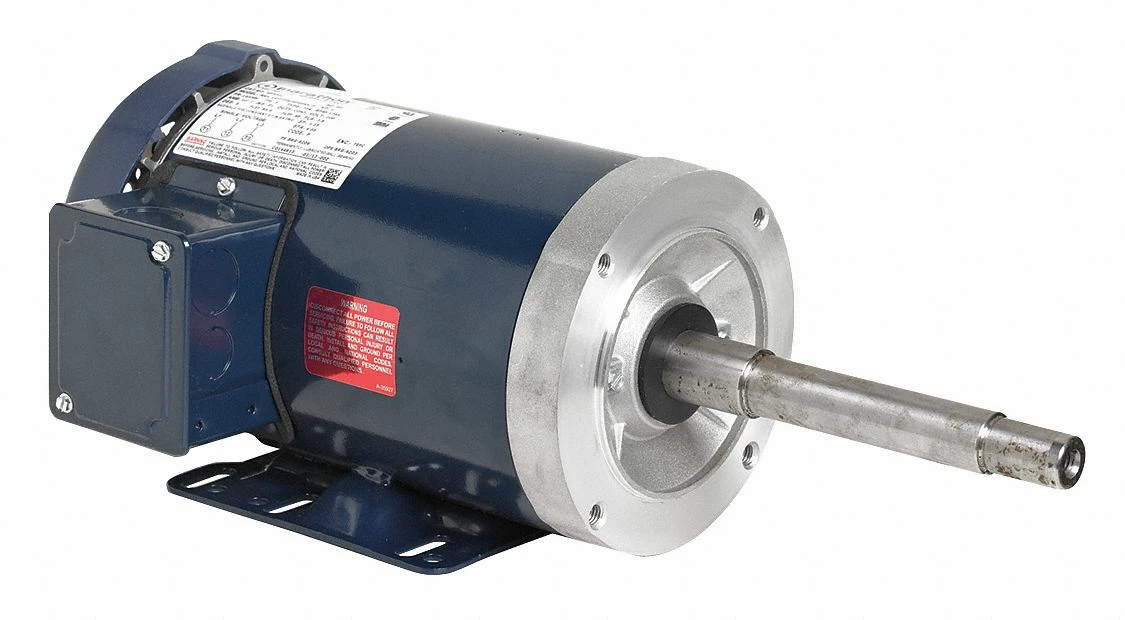

Marathon Motors 5 HP Close-Coupled Pump Motor,3-Phase,3505 Nameplate RPM,230/460 Voltage,184JP – 184TTFBD6012
Original price was: $363.00.$96.99Current price is: $96.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 5; Nameplate RPM: 3505; Frame: 184JP; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 12/6; Phase: 3; Hz: 60/50; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 7 3/8 in; Motor Shaft Design: JP Threaded; Length Less Shaft: 12 11/16; Overall Length: 20 1/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 88.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Standards: CE, CSA Certified, UL Recognized; Voltage Compatibility: 220-230/460, 230/460, 460
