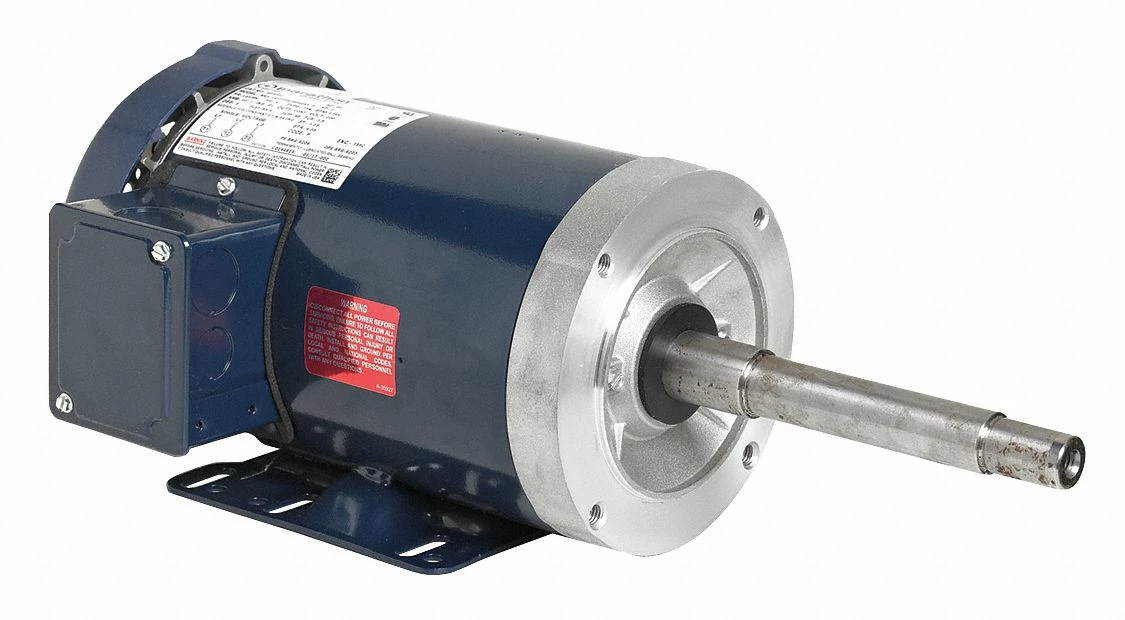

Marathon Motors 5 HP Close-Coupled Pump Motor,3-Phase,1758 Nameplate RPM,230/460 Voltage,184JP – 184TTFBD6037
Original price was: $346.00.$97.99Current price is: $97.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 5; Nameplate RPM: 1758; Frame: 184JP; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 12.4/6.2; Phase: 3; Hz: 60/50; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 7 3/8 in; Motor Shaft Design: JP Threaded; Length Less Shaft: 12 11/16; Overall Length: 20 1/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 89.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Standards: CE, CSA Certified, UL Listed; Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
Be the first to review “Marathon Motors 5 HP Close-Coupled Pump Motor,3-Phase,1758 Nameplate RPM,230/460 Voltage,184JP – 184TTFBD6037”
