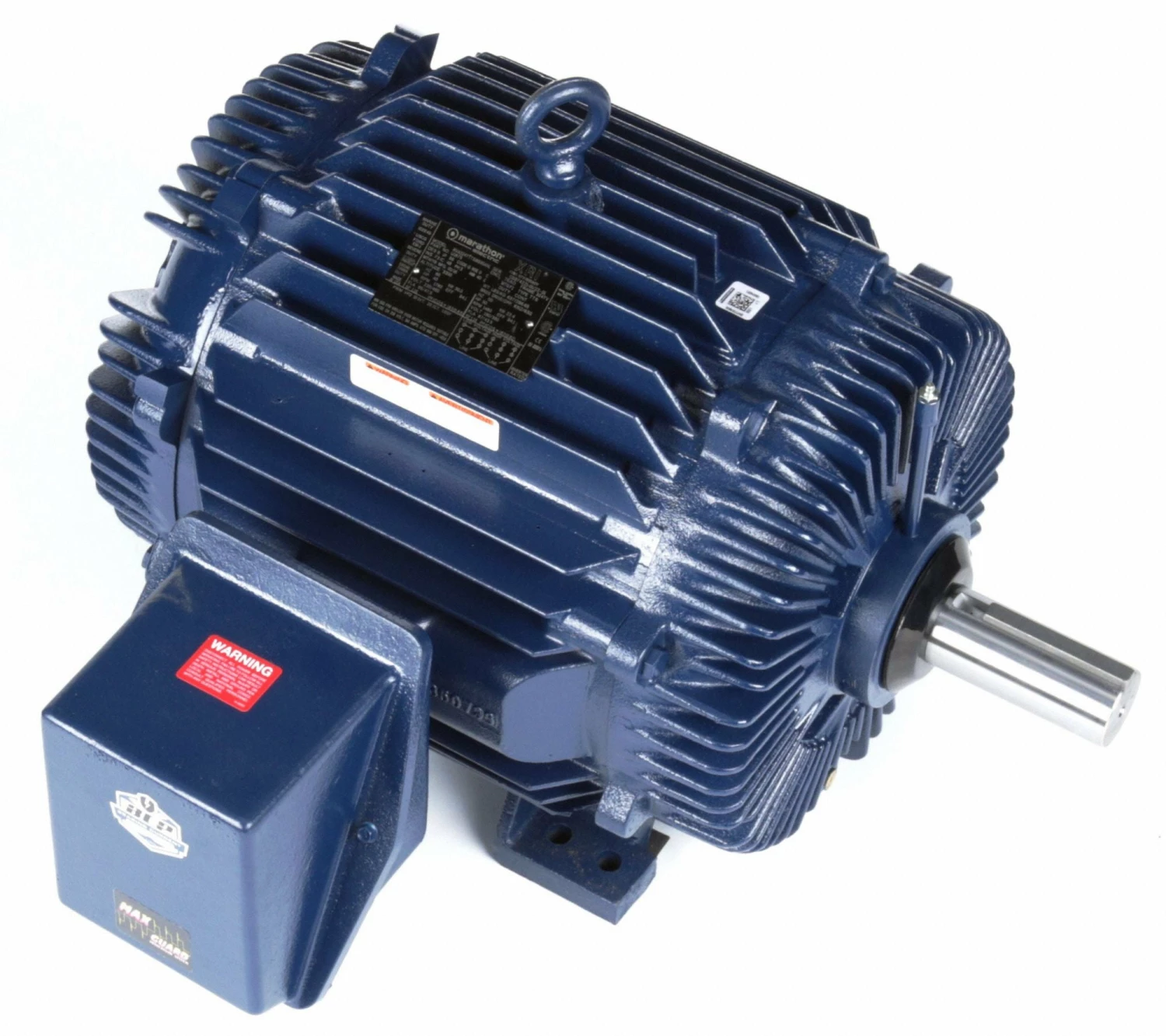

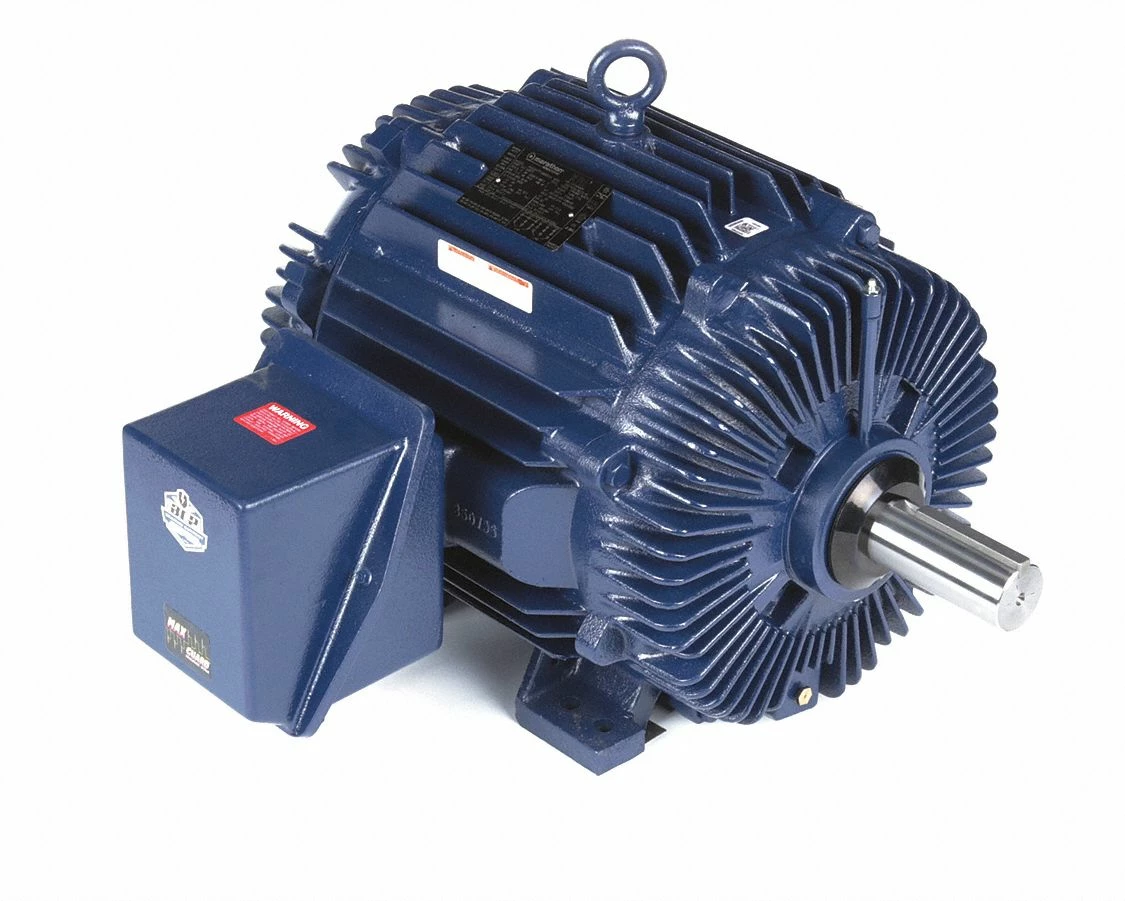

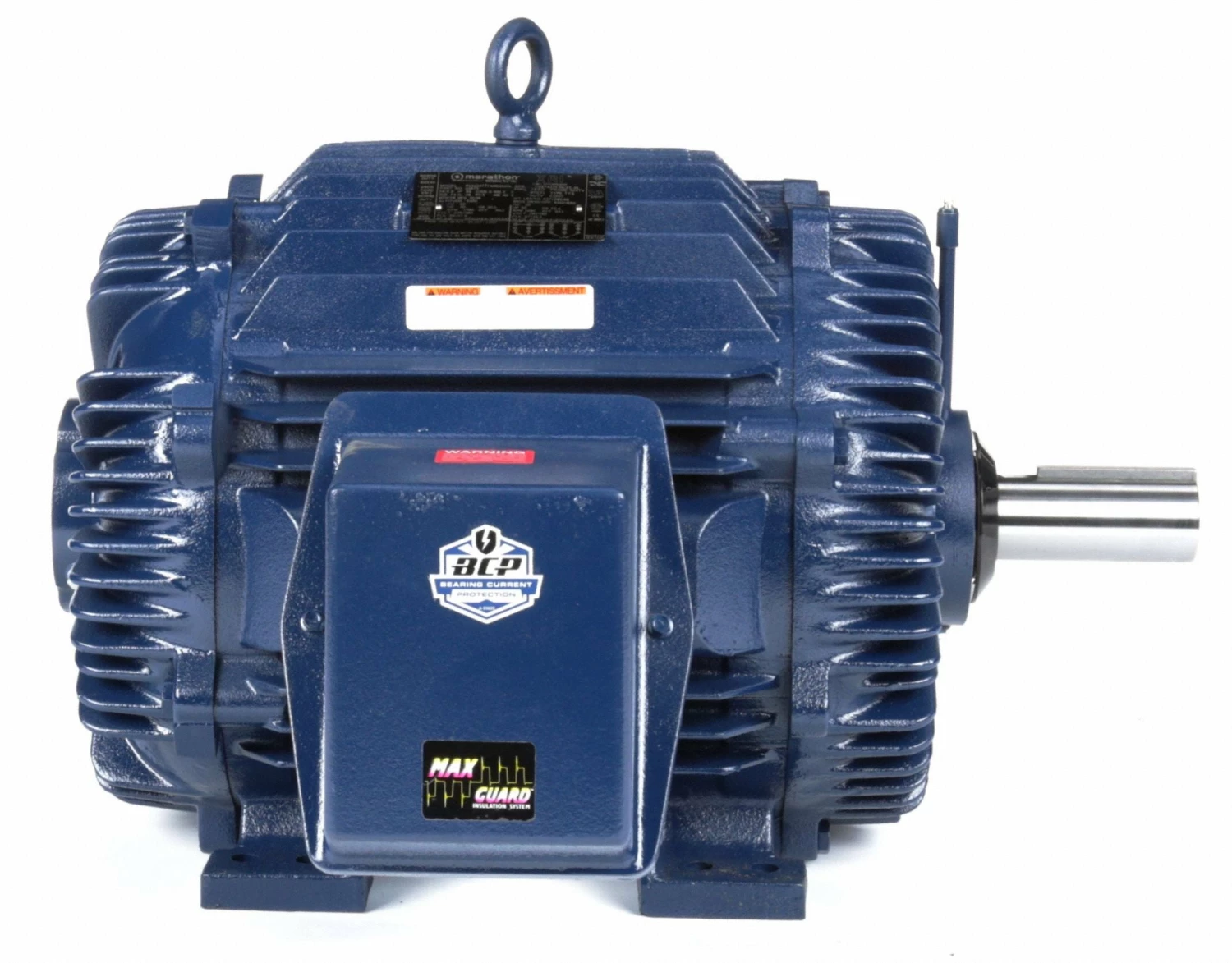

Marathon Motors 40 HP Cooling Tower Motor,3-Phase,1780 Nameplate RPM,230/460 Voltage,Frame 324TV – 324TTTCD16535
Original price was: $343.00.$95.99Current price is: $95.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Air-Over; HP: 40; Nameplate RPM: 1780; Frame: 324TV; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 94/47.5; Phase: 3; Hz: 60; Motor Mounting Type: Rigid Base; Motor Mounting Position: All Angle; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 2 1/8 in; Shaft Length: 5 1/4 in; Length Less Shaft: 21 in; Overall Length: 26 1/4 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 95.8 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Epoxy; Standards: CSA (LR2025), UL (E49747); Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
