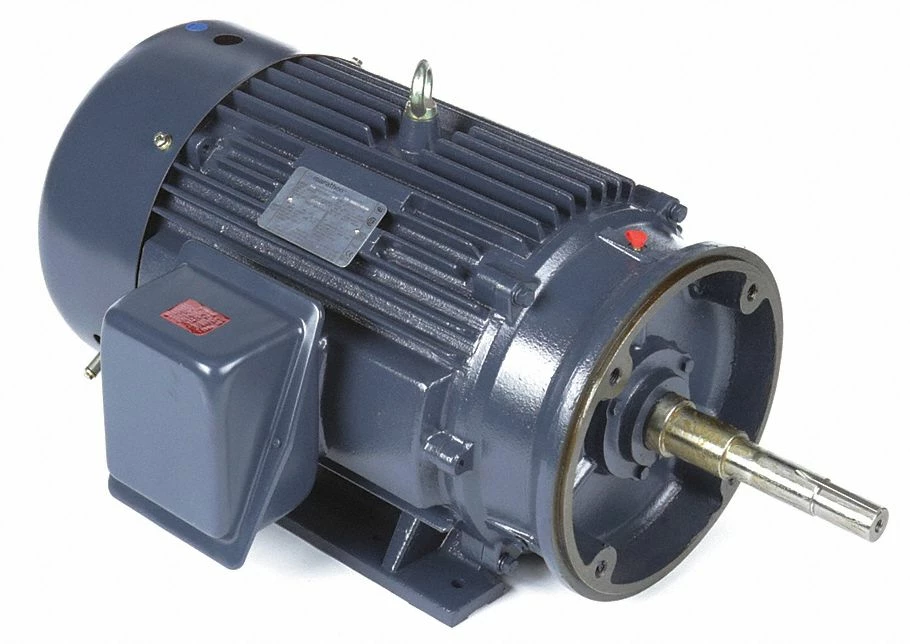

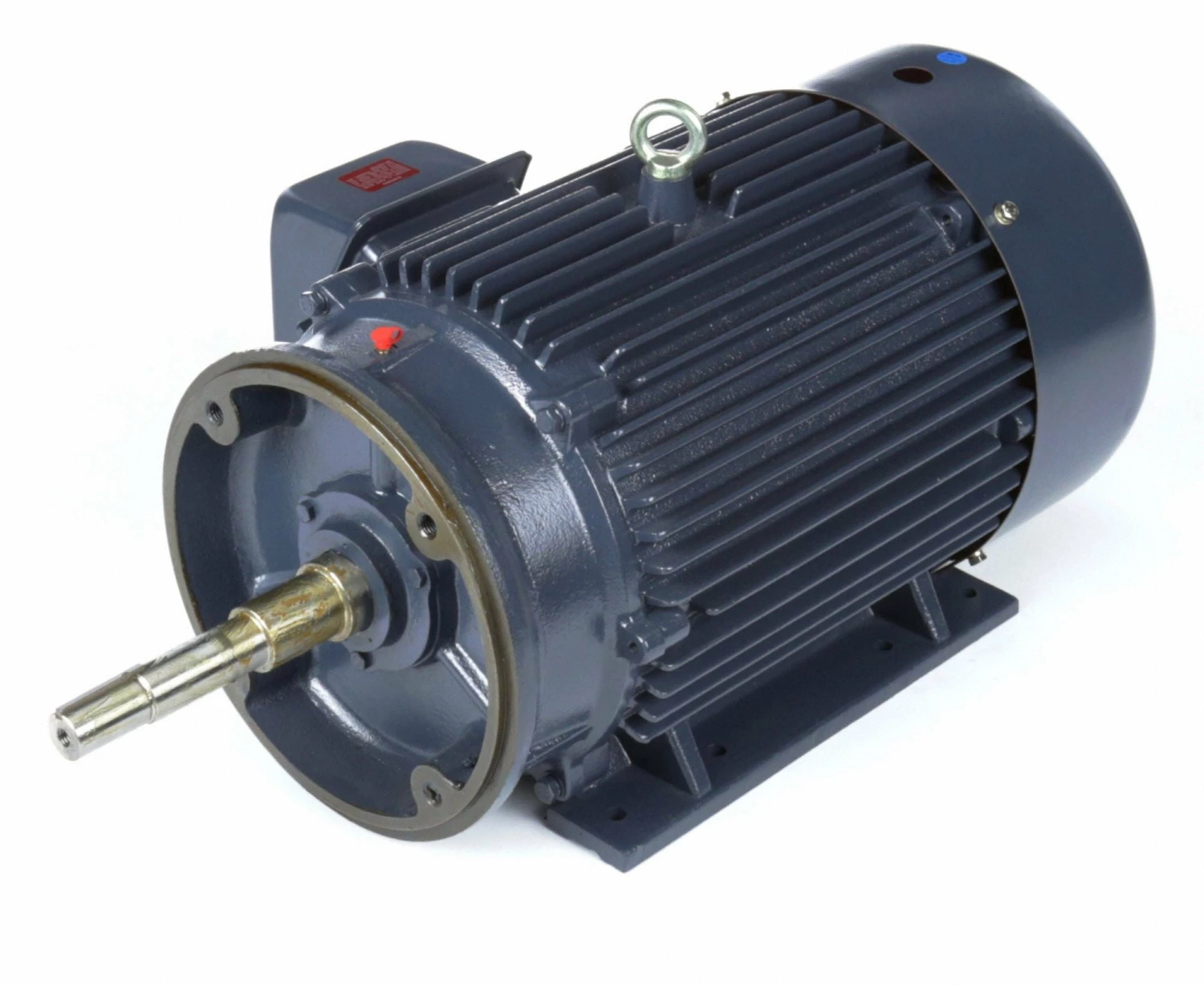

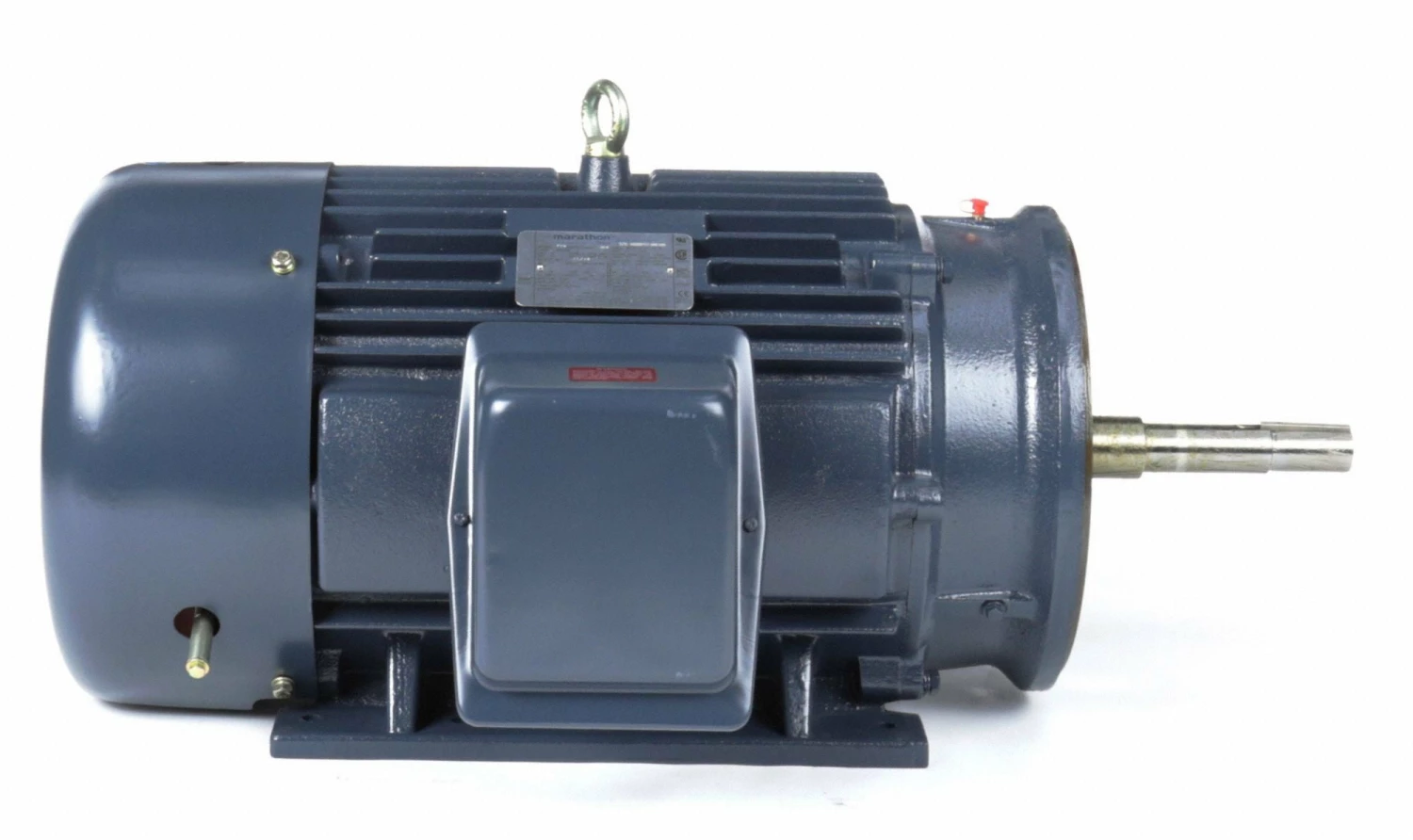

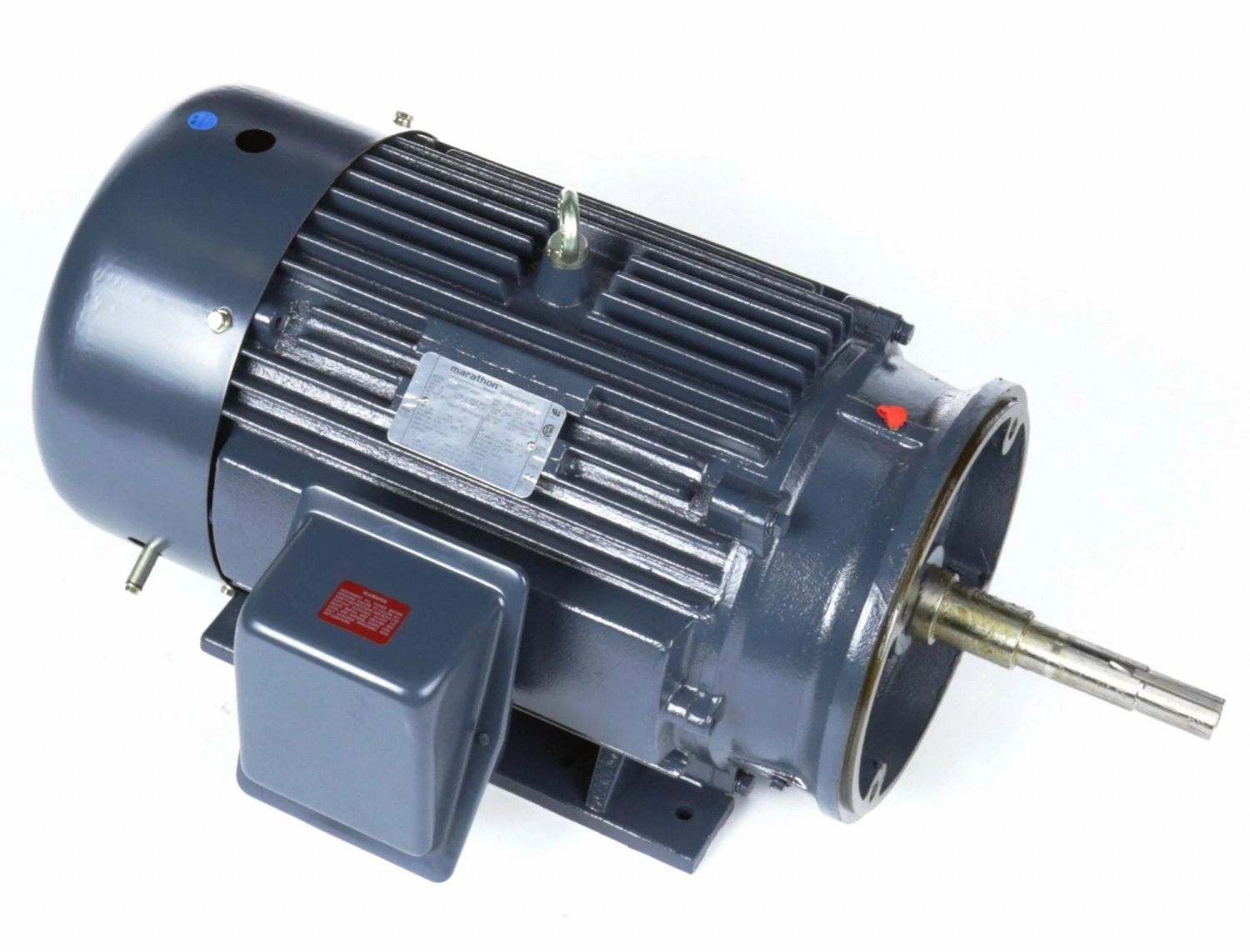

Marathon Motors 30 HP Close-Coupled Pump Motor,3-Phase,3555 Nameplate RPM,230/460 Voltage,286JP – 286TTFCD6012
Original price was: $380.00.$97.99Current price is: $97.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 30; Nameplate RPM: 3555; Frame: 286JP; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 68/34; Phase: 3; Hz: 60/50; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 1 1/4 in; Shaft Length: 8 1/8 in; Motor Shaft Design: JP Threaded; Length Less Shaft: 26 7/8 in; Overall Length: 35 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 94.1 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Standards: CE, CSA Certified, UL Listed; Voltage Compatibility: 220-230/460, 230/460, 460
