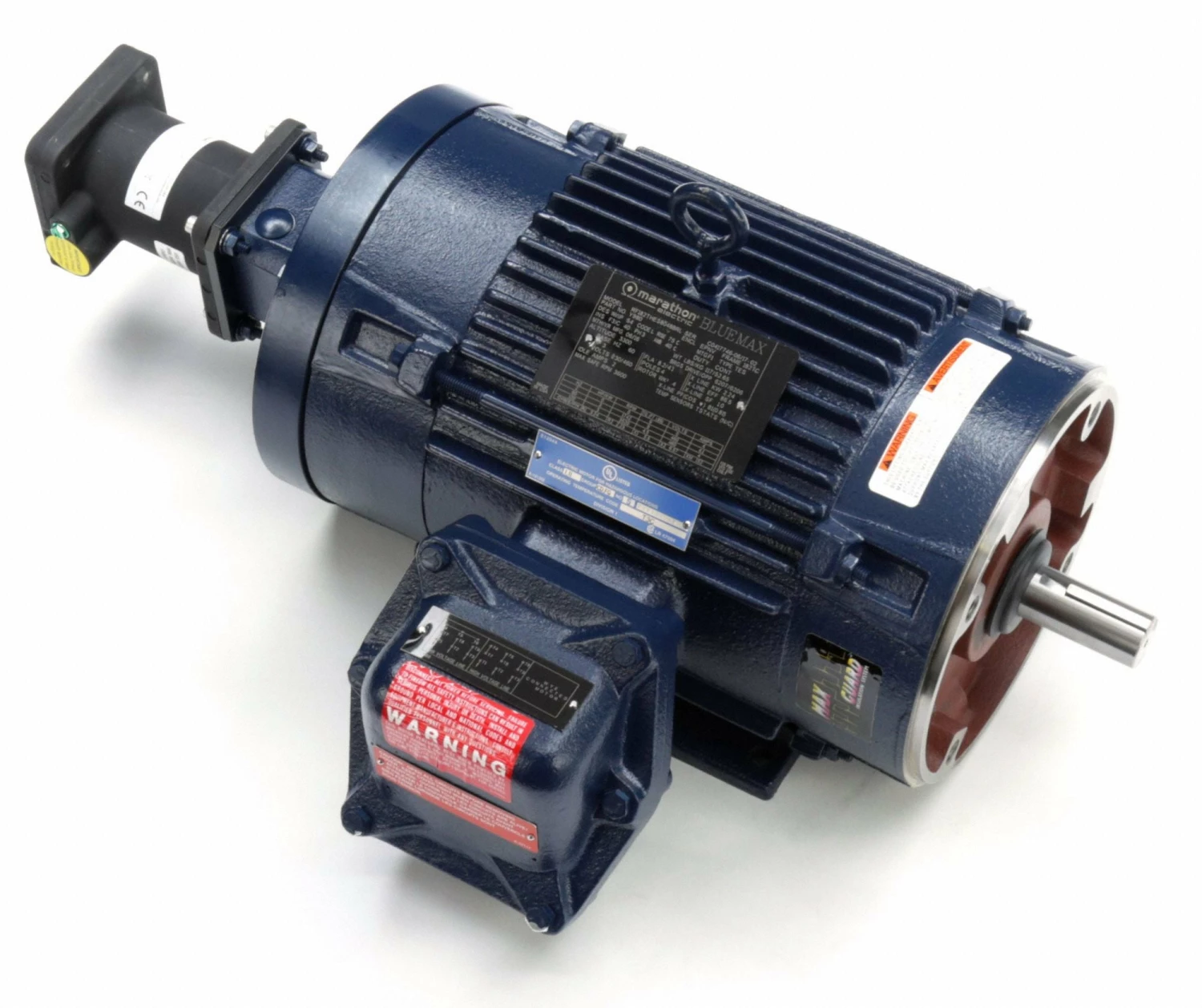

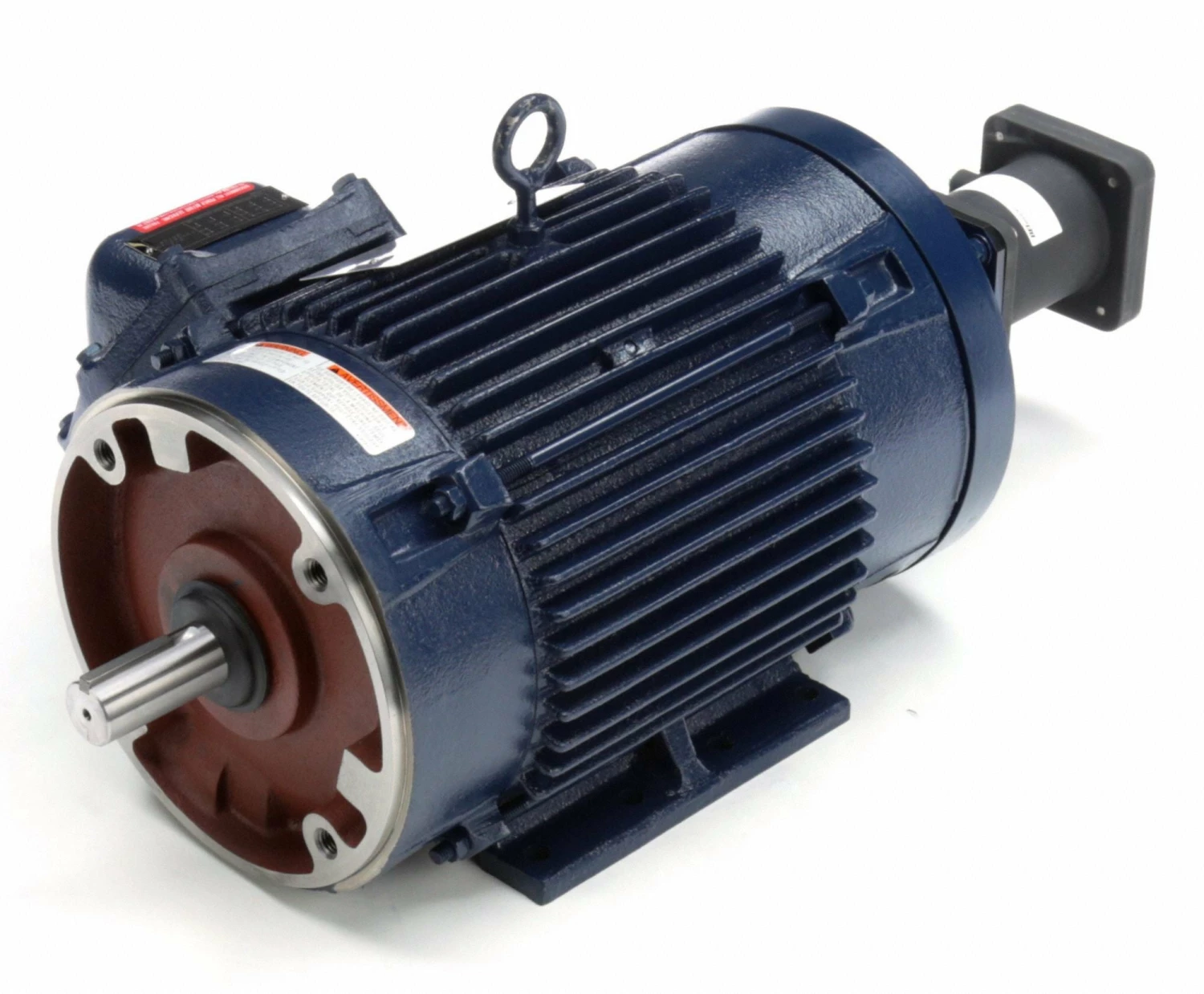

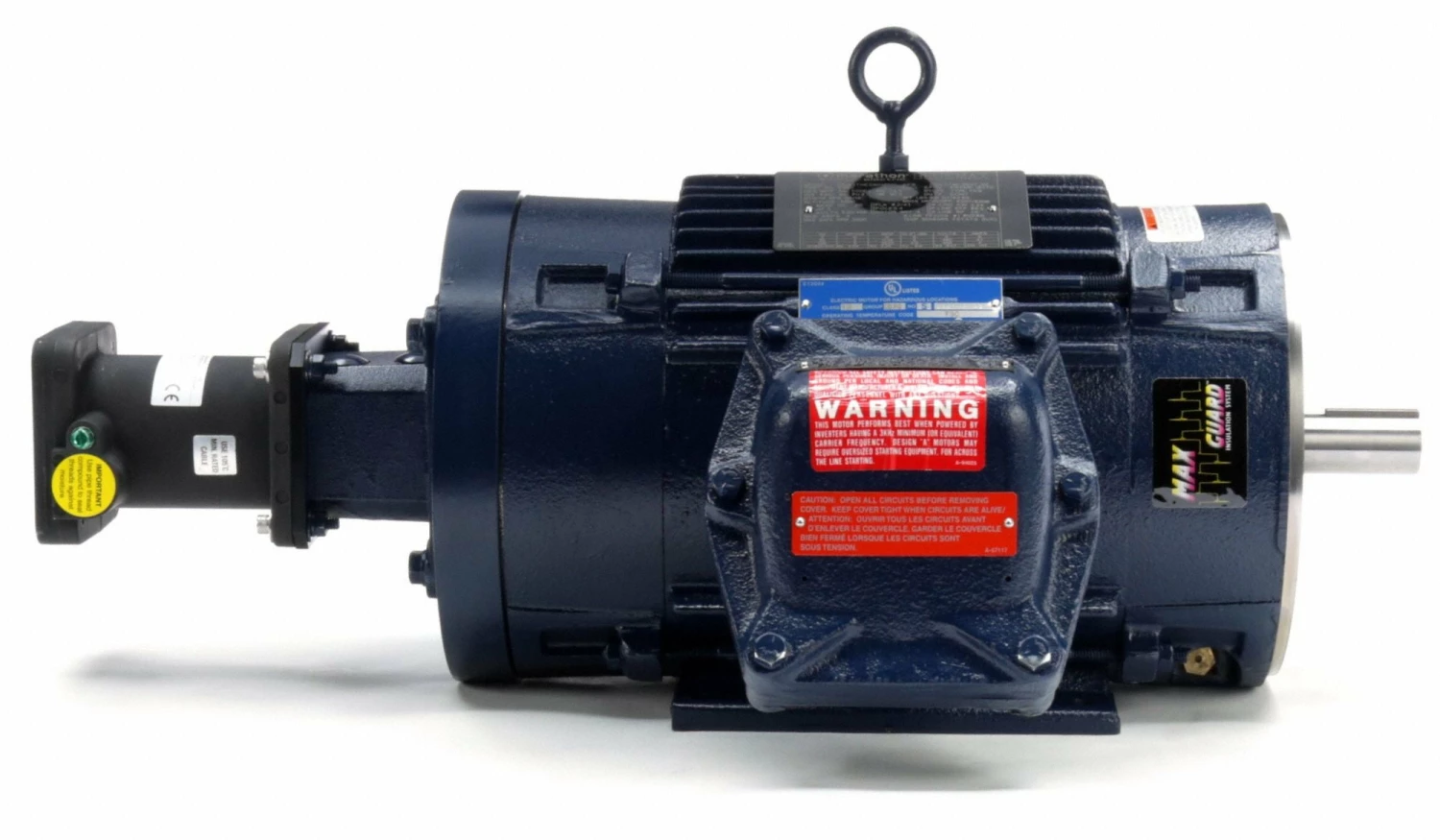

Marathon Motors 3 HP Vector Motor,3-Phase,1745 Nameplate RPM,230/460 Voltage,Frame 182TC – 182THES8048

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Hazardous Location; HP: 3; Nameplate RPM: 1745; Speed Range: 2000:1 CT; Max. Speed: 3,600 RPM; Frame: 182TC; Max. Operating Frequency: 120 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 8.2/4.1; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: F; Insulation Feature: Max Guard; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 86.5 %; Motor Efficiency Group: Standard Efficient; NEMA Design: A; Motor Frame Material: Cast Iron; Finish: Blue; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 5/8 in; Motor Shaft Design: Keyed; Shaft Dia.: 1 1/8 in; Shaft Length: 2 5/8 in; Overall Length: 24 13/16 in; Standards: UL LISTED(E12044); CSA CERTIFIED (LR47504); CL I GR C&D; CL II GR F&G; Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460
