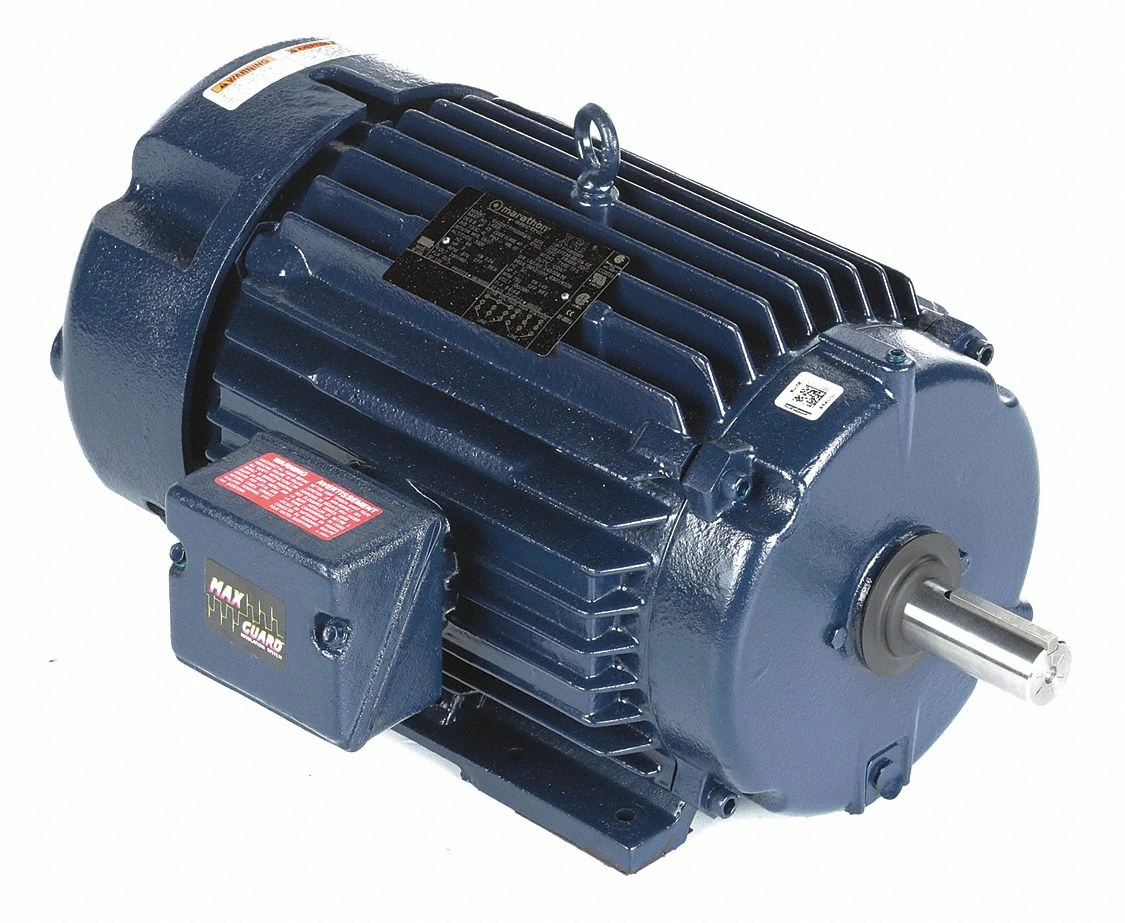

Marathon Motors 3 HP, General Purpose Motor, 3-Phase, 875 Nameplate RPM, 230/460 Voltage, 215T Frame – 215TTFN16101

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 3; Nameplate RPM: 875; Frame: 215T; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 10/5; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 3/8 in; Shaft Length: 3 3/8 in; Length Less Shaft: 19 1/4 in; Overall Length: 22 5/8 in; Motor Shaft Design: Keyed; Standards: CE Approved, CSA (LR2025), UL (E49747); Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 85.5 %; CC Number: CC003A; Inverter Rated: No; Manufacturers Warranty Length: 1 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated
