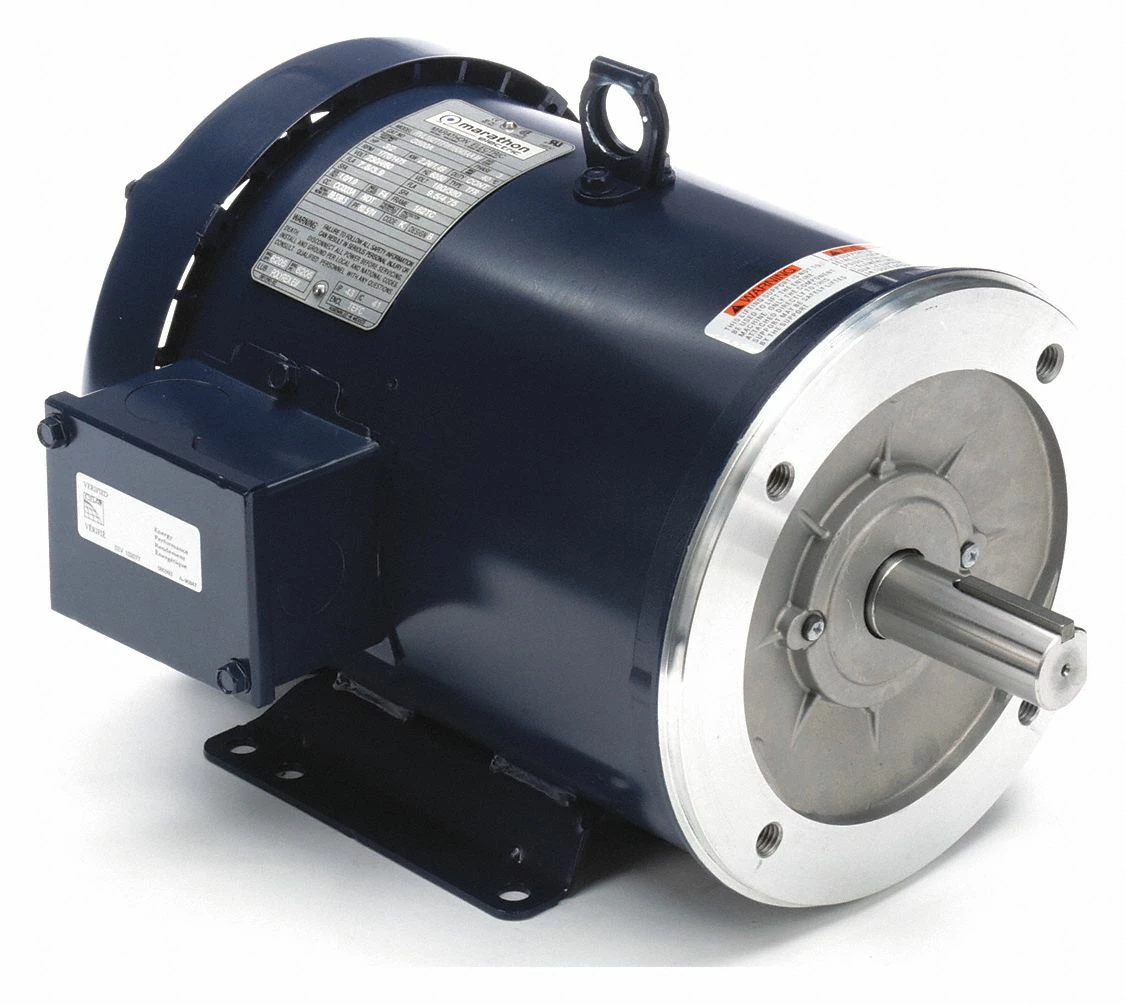

Marathon Motors 3 HP, General Purpose Motor, 3-Phase, 1770 Nameplate RPM, 230/460 Voltage, 182TC Frame – 182TTFW16045
Original price was: $379.00.$96.99Current price is: $96.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 3; Nameplate RPM: 1770; Frame: 182TC; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 7.8/3.9; No. of Speeds: 1; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 1/8 in; Shaft Length: 2 5/8 in; Length Less Shaft: 11 13/16 in; Overall Length: 14 1/2 in; Motor Shaft Design: Keyed; Standards: CE Approved, CSA (LR2025), UL (E49747); Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 89.5 %; CC Number: CC003A; Inverter Rated: No; Manufacturers Warranty Length: 1 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated
