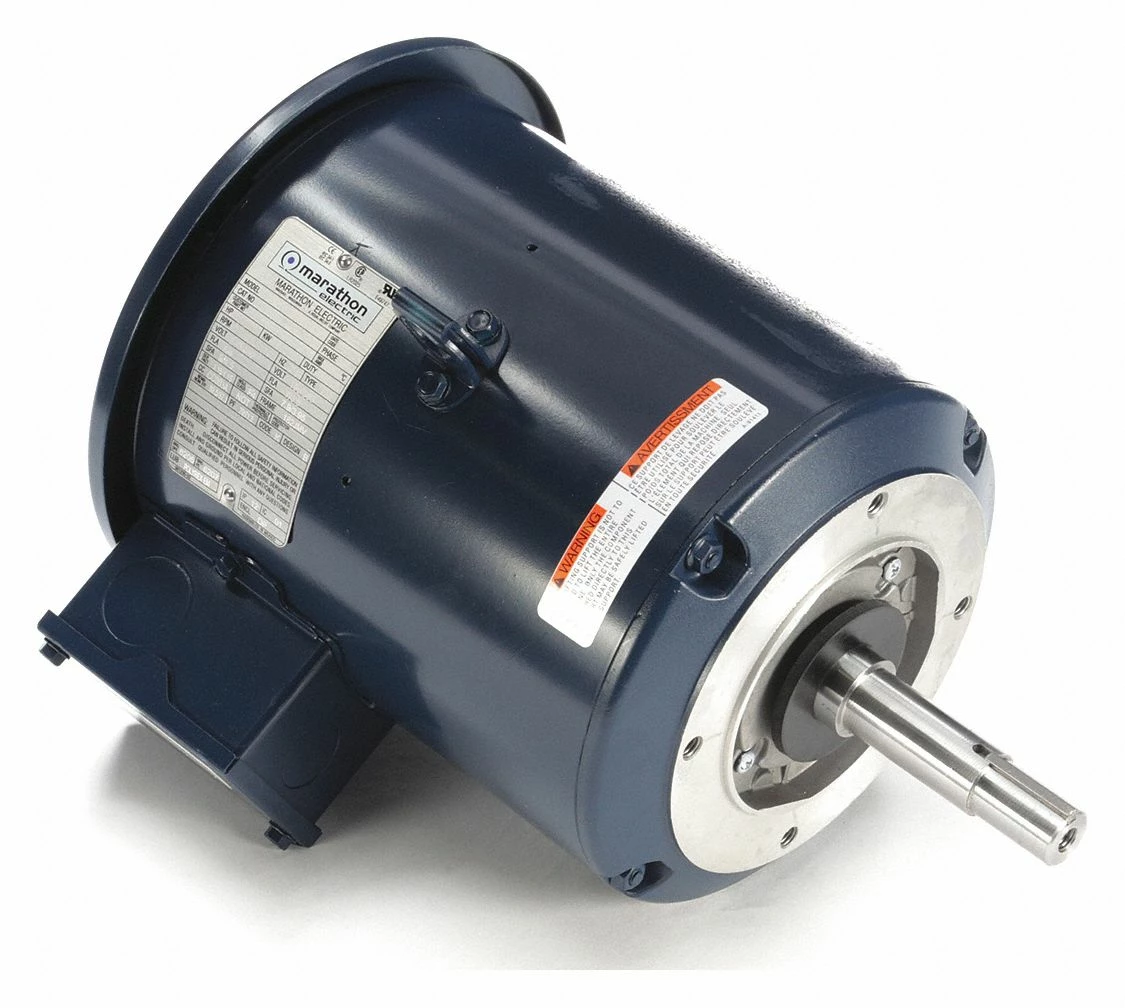

Marathon Motors 3 HP Close-Coupled Pump Motor,3-Phase,1760 Nameplate RPM,200 Voltage,182JMV – 182TTDW16067
Original price was: $344.00.$99.99Current price is: $99.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 3; Nameplate RPM: 1760; Frame: 182JMV; Motor Shaft Rotation: CW/CCW; Voltage: 200; Full Load Amps: 8/4; Phase: 3; Hz: 60/50; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 4 1/8 in; Motor Shaft Design: Keyed and Drilled On Center; Length Less Shaft: 10 13/16 in; Overall Length: 14 15/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 87.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: No; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 200, 200-208, 200-230, 200-230/440, 200-230/460; Green Certification or Other Recognition: NEMA Premium(R) Rated
