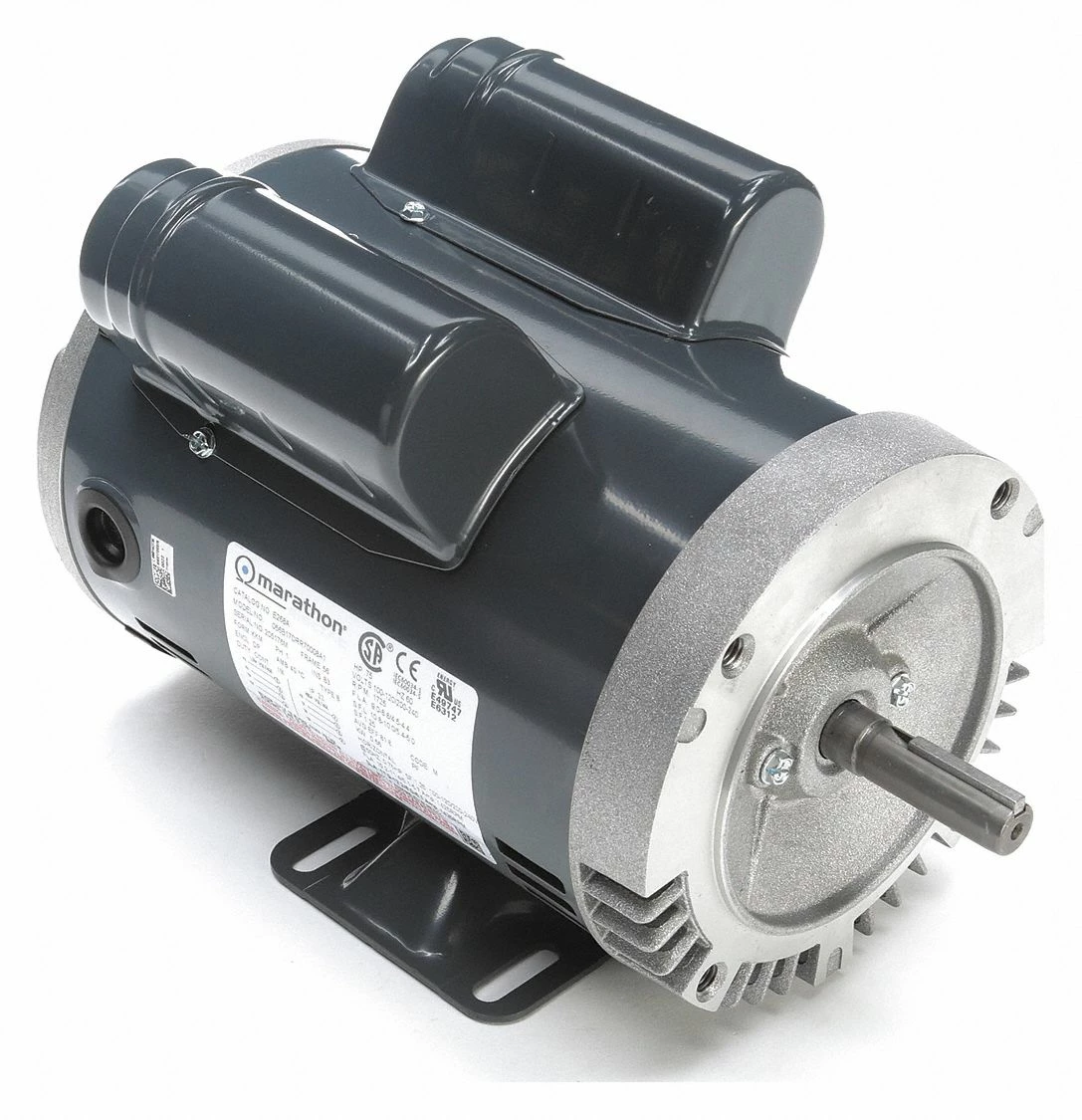

Marathon Motors 3/4 HP, General Purpose Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 120/240 Voltage – 056B17DRR70008A1
Original price was: $366.00.$98.99Current price is: $98.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
General Purpose Motor; Motor Application: General Application; Motor Design: Capacitor-Start/Run; Motor Enclosure Design: Open Dripproof; HP: 3/4; Nameplate RPM: 1725; Frame: 56C; Voltage: 120/240; Hz: 60/50; Phase: 1; Full Load Amps: 6.2/3.1; No. of Speeds: 1; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: Manual; Ins. Class: B; Motor Service Factor: 1.25; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 10 7/16 in; Overall Length: 12 5/16 in; Motor Shaft Design: Keyed; Standards: CE, CSA (LR2025), UL (E49747); Duty: Continuous; Motor Efficiency Group: Premium Efficient; Nominal Efficiency: 82.6 %; Inverter Rated: No; Manufacturers Warranty Length: 1 yr
