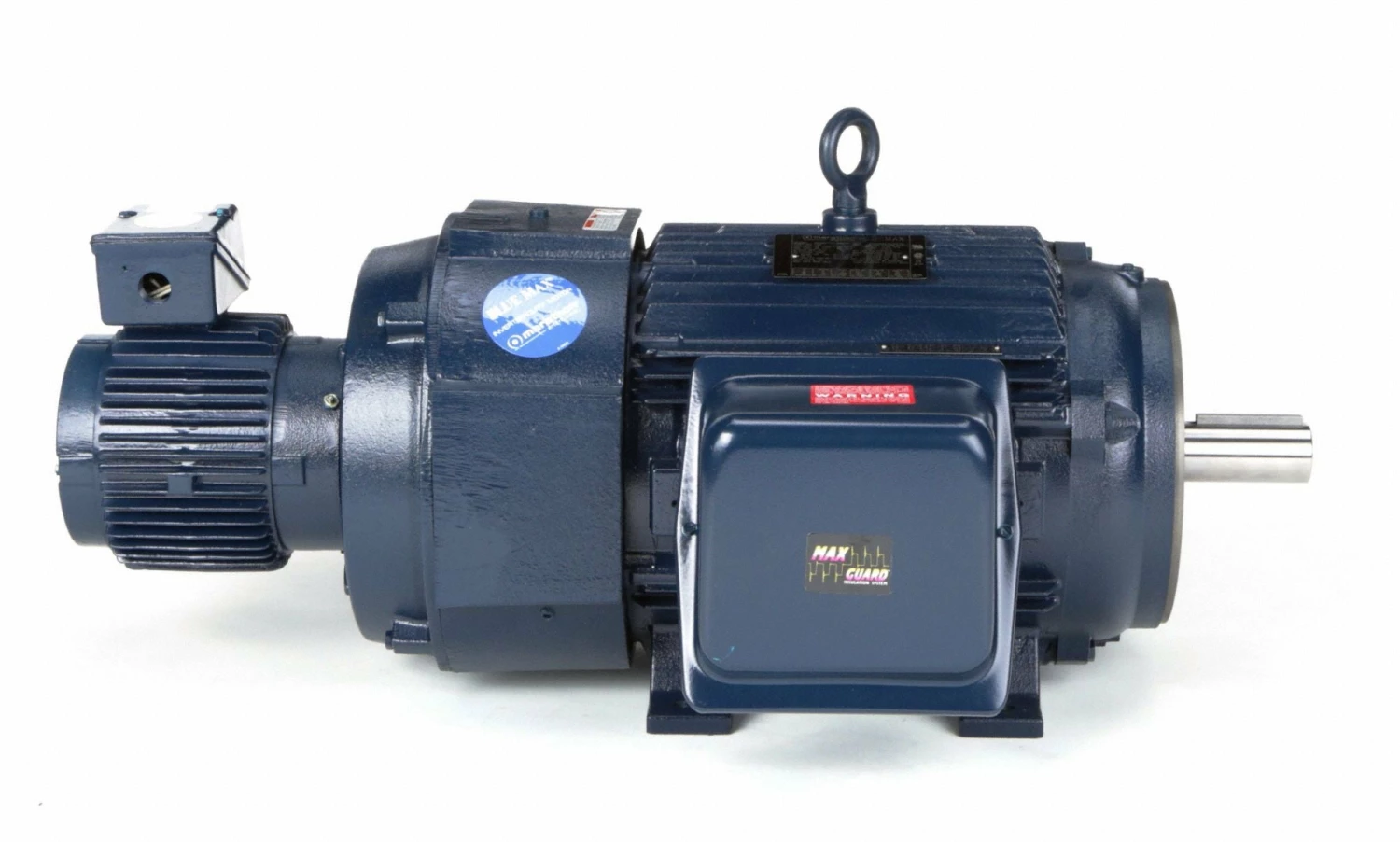

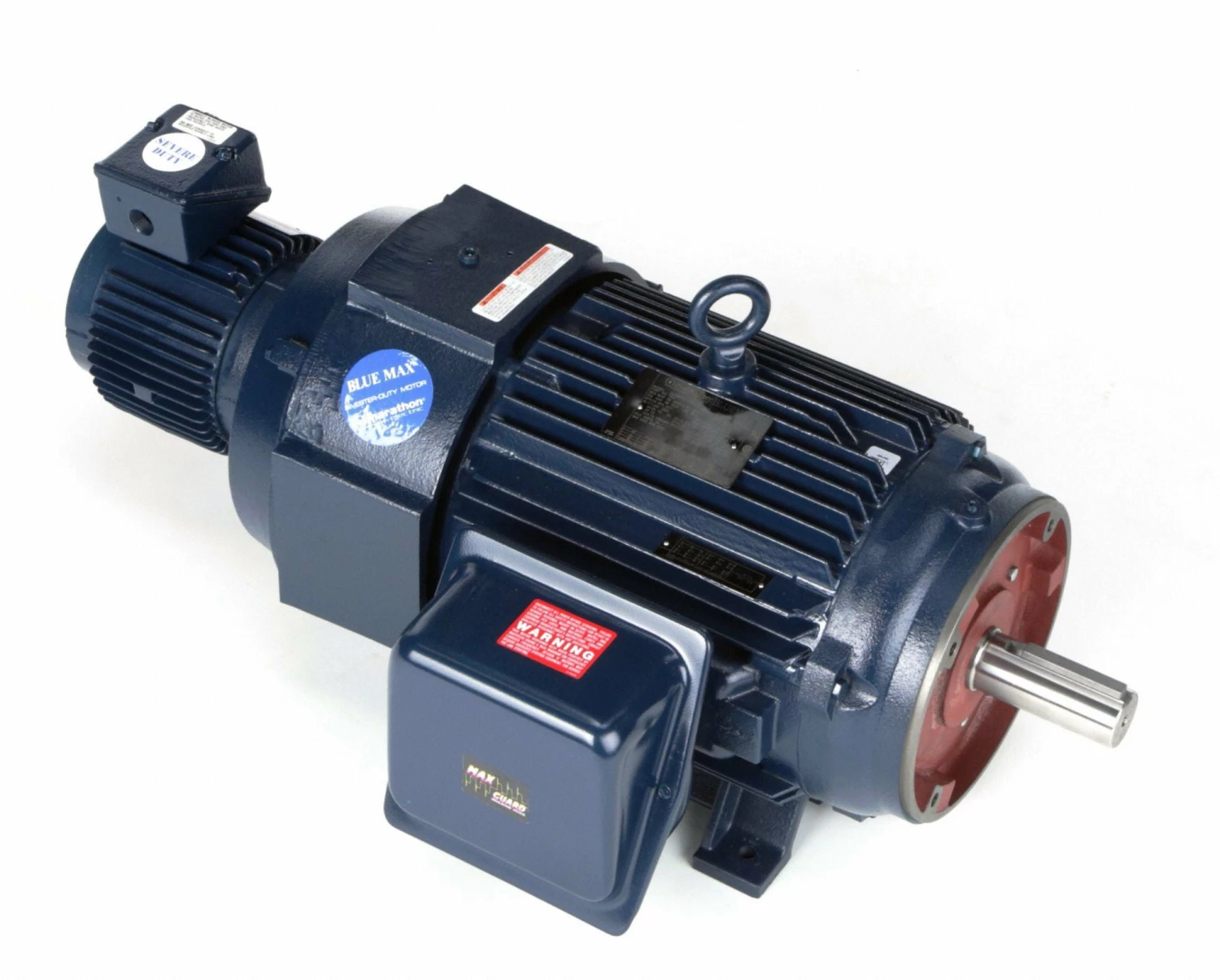

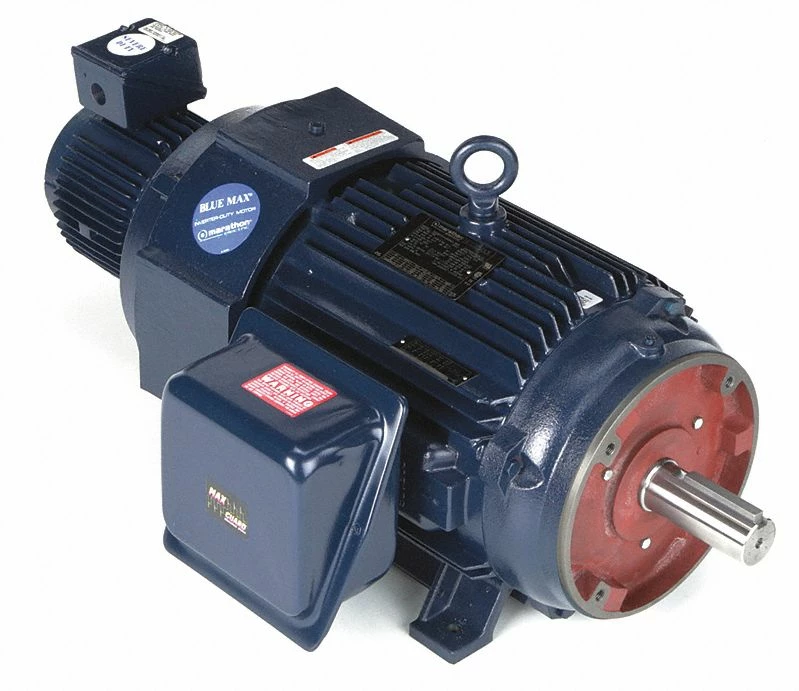

Marathon Motors 25 HP Vector Motor,3-Phase,1765 Nameplate RPM,230/460 Voltage,Frame 284TC – 284THFPA8038
Original price was: $328.00.$99.99Current price is: $99.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Blower-Cooled; HP: 25; Nameplate RPM: 1765; Speed Range: 2000:1 CT; Max. Speed: 3,600 RPM; Frame: 284TC; Max. Operating Frequency: 90 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 63/31.5; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: H; Insulation Feature: Class F; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 94.5 %; Motor Efficiency Group: Standard Efficient; NEMA Design: A; Motor Frame Material: Cast Iron; Finish: Blue Enamel; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 1 in x 1-3/4 in; Motor Shaft Design: Keyed; Shaft Dia.: 1 7/8 in; Shaft Length: 4 3/8 in; Overall Length: 37 13/16 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460
