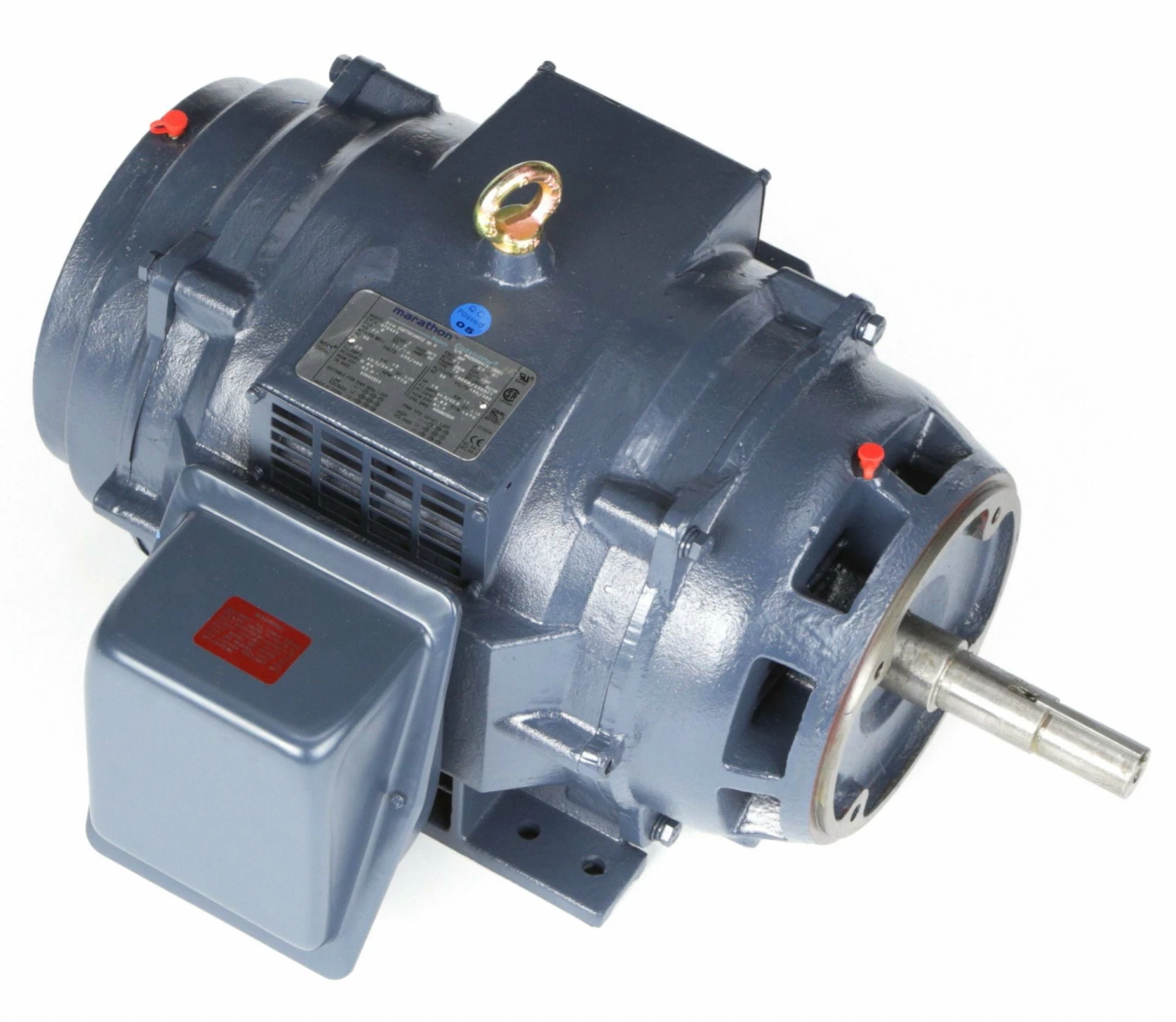

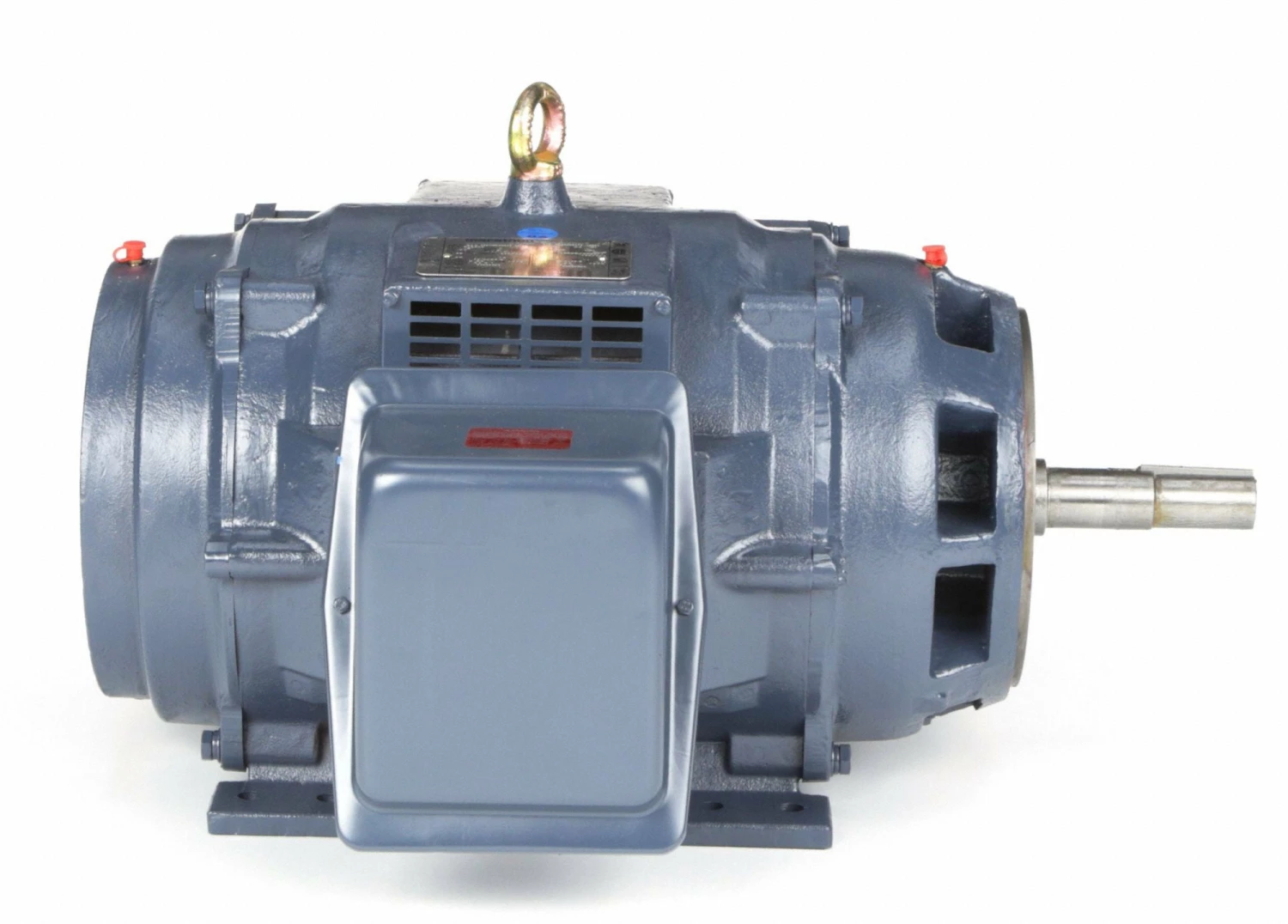

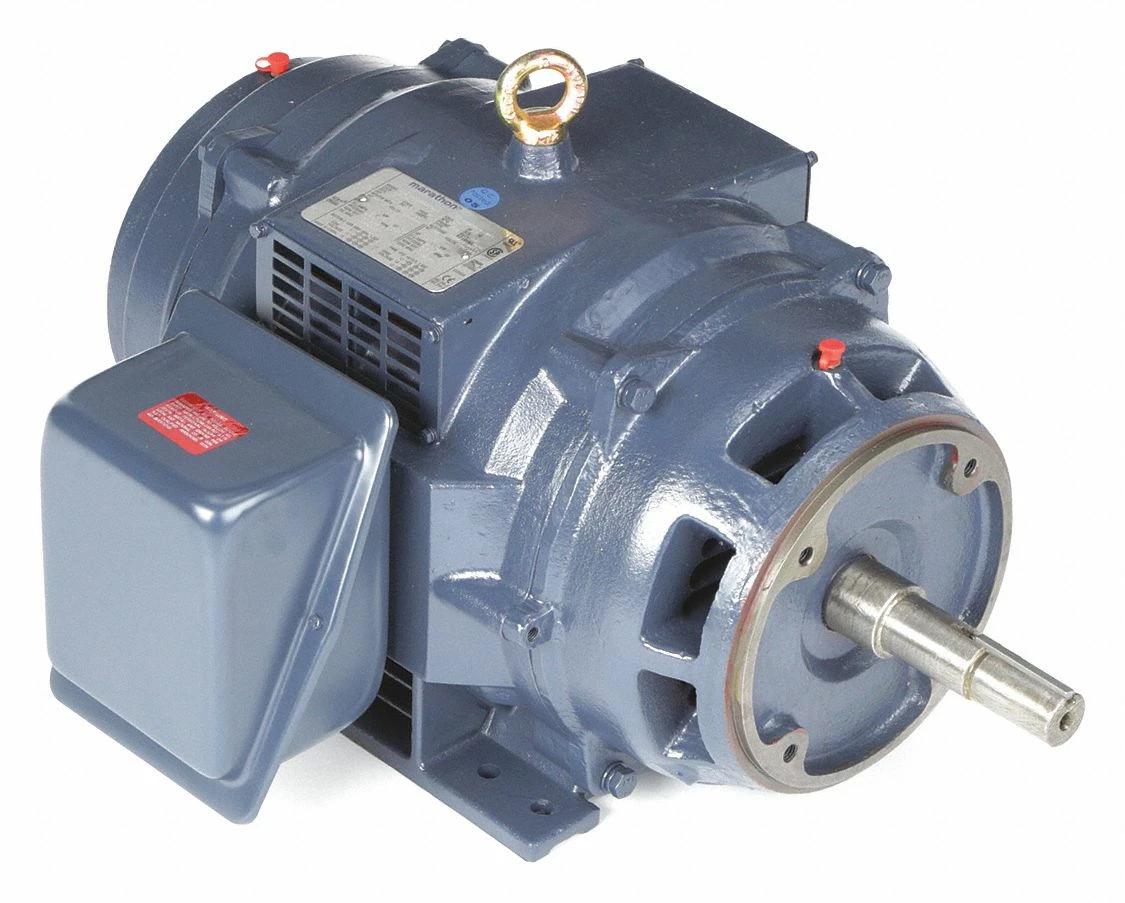

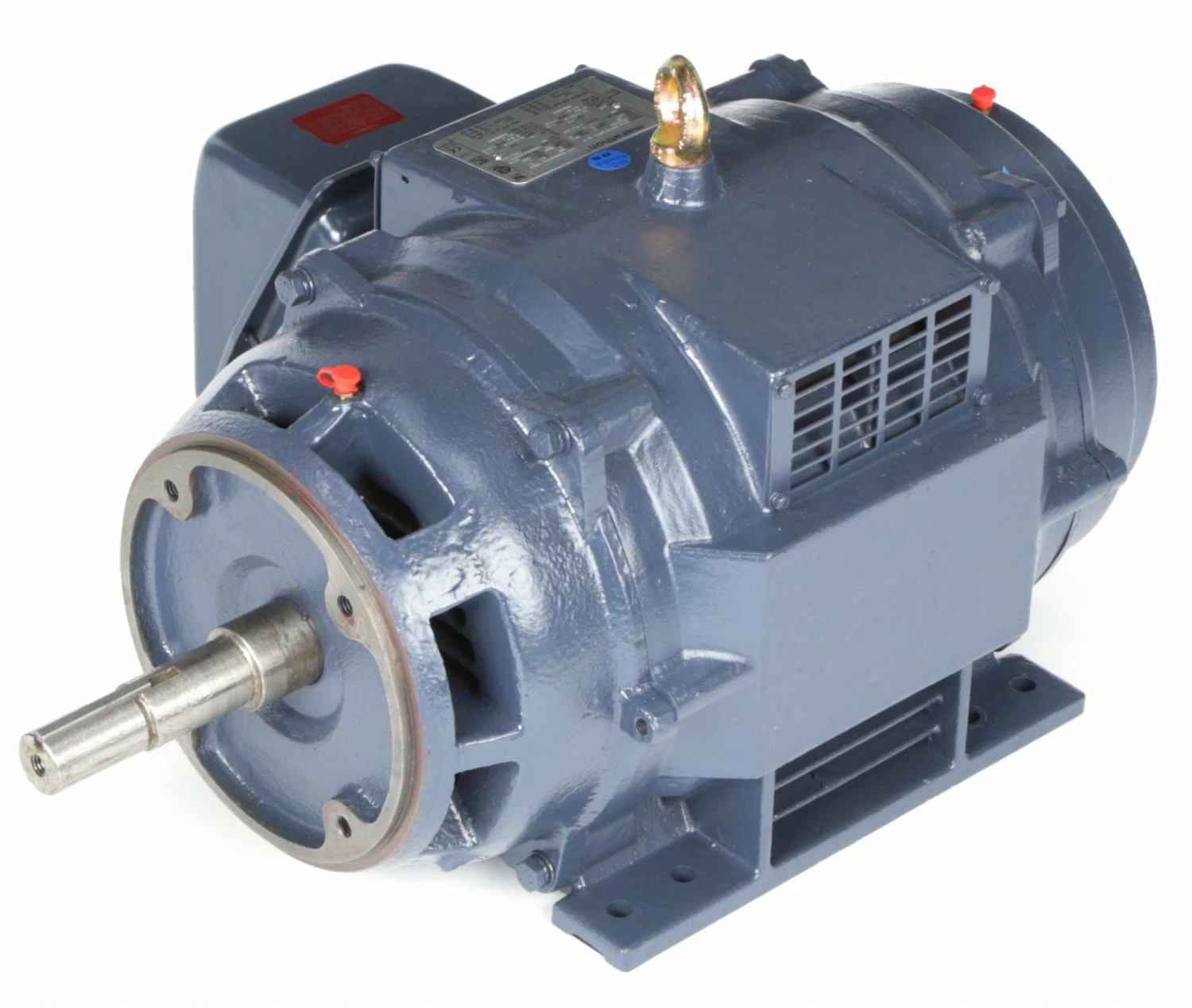

Marathon Motors 20 HP Close-Coupled Pump Motor,3-Phase,1768 Nameplate RPM,208-230/460 Voltage,256JM – 256TTDBD6032
Original price was: $360.00.$95.99Current price is: $95.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 20; Nameplate RPM: 1768; Frame: 256JM; Motor Shaft Rotation: CW/CCW; Voltage: 208-230/460; Full Load Amps: 53-49/24.5; Phase: 3; Hz: 60/50; Motor Mounting Type: Face/Base; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 1 1/4 in; Shaft Length: 5 1/4 in; Motor Shaft Design: Keyed; Length Less Shaft: 20 3/4 in; Overall Length: 26 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 90.2 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: Yes; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
