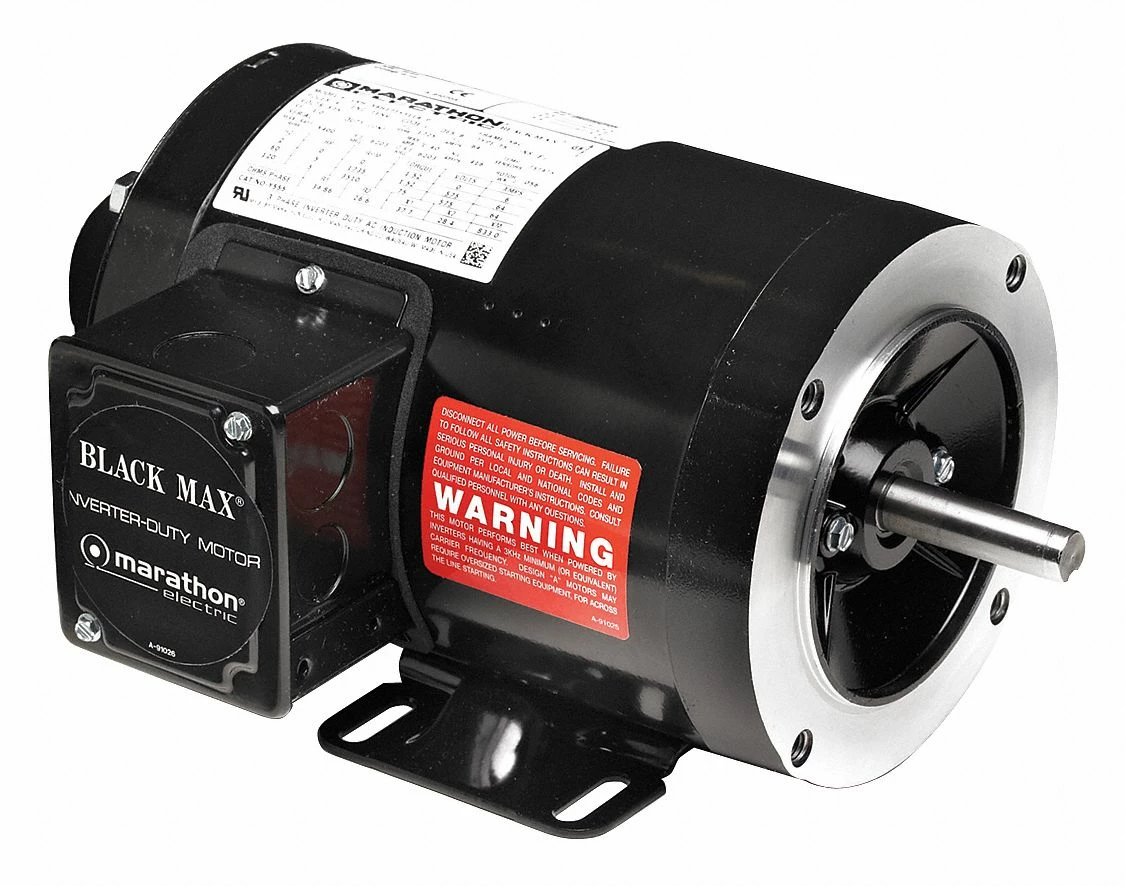

Marathon Motors 15 HP Vector Motor,3-Phase,1765 Nameplate RPM,230/460 Voltage,Frame 254TC – 254THTL5726

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 15; Torque: 44.6 lb-ft; Nameplate RPM: 1765; Speed Range: 1000:1 CT; Max. Speed: 4,200 RPM; Frame: 254TC; Max. Operating Frequency: 120 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 40/20; Motor Mounting Type: Face/Base; Motor Mounting Position: All Angle; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: F; Insulation Feature: Patented MAX GUARD; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 93.6 %; Motor Efficiency Group: Energy Efficient; NEMA Design: A; Motor Frame Material: Cast Aluminum; Finish: Black; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 5/8 x 1-3/4 in; Motor Shaft Design: Keyed; Shaft Dia.: 1 5/8 in; Shaft Length: 3 3/4 in; Overall Length: 26 7/8 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E6312); Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460
