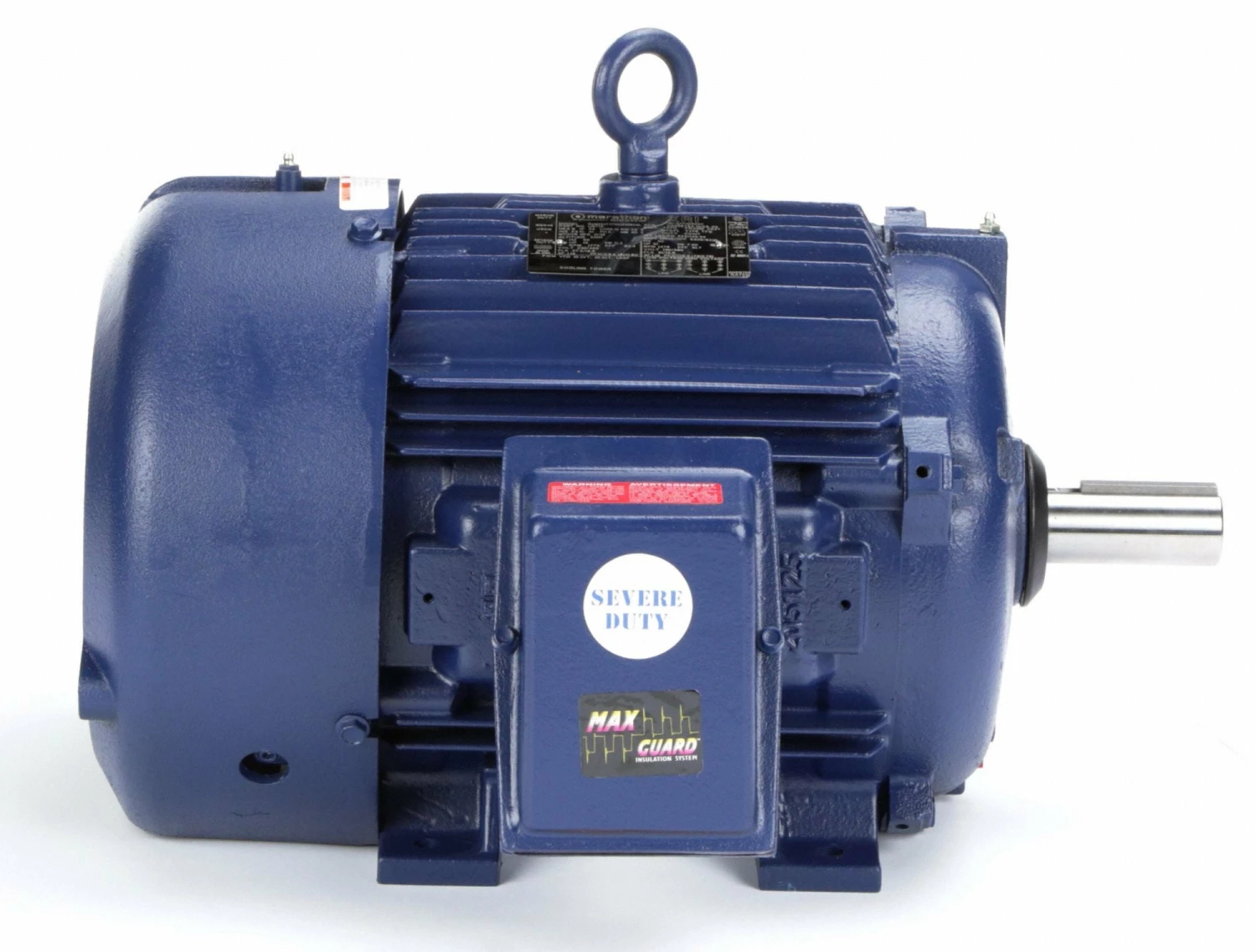

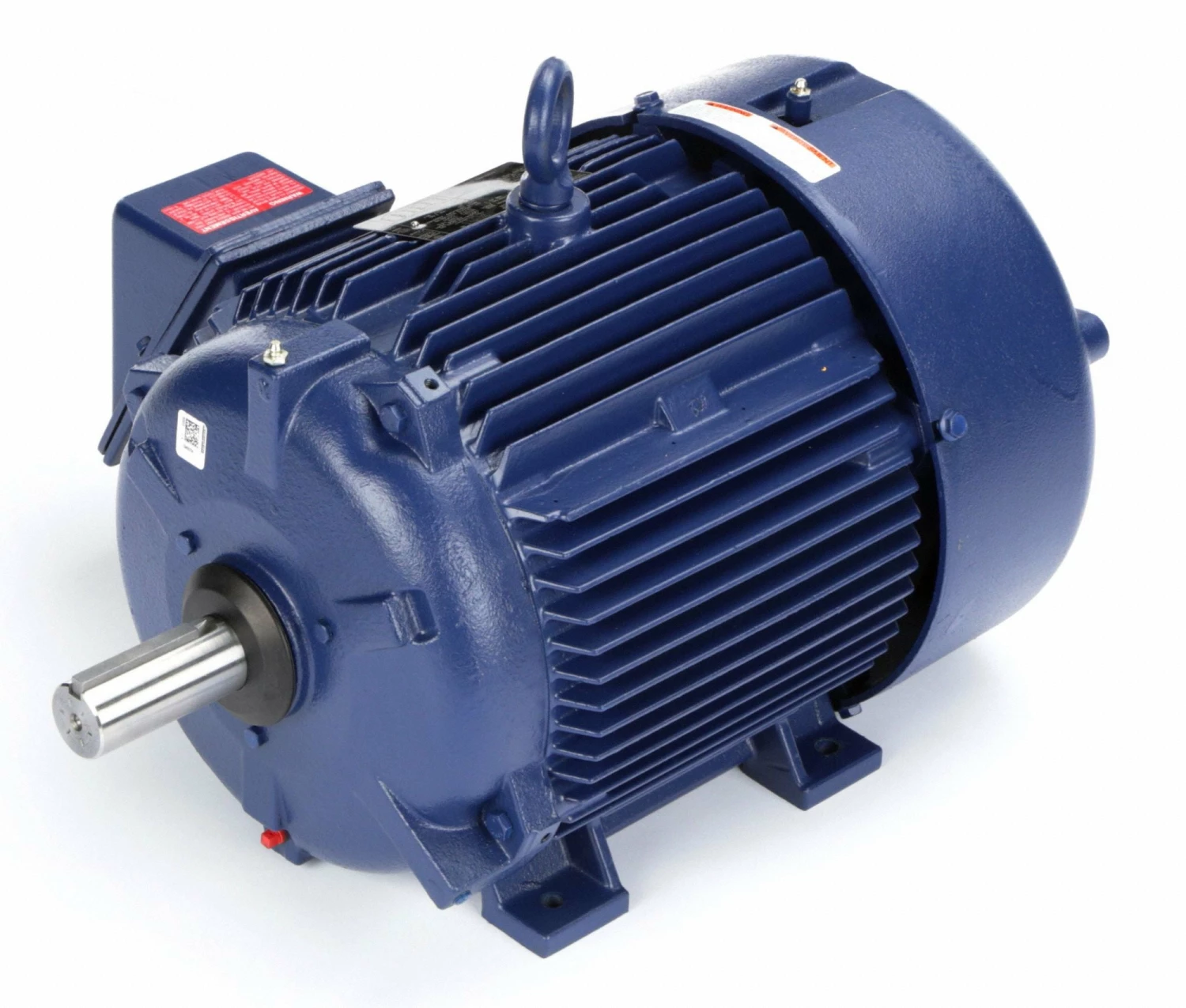

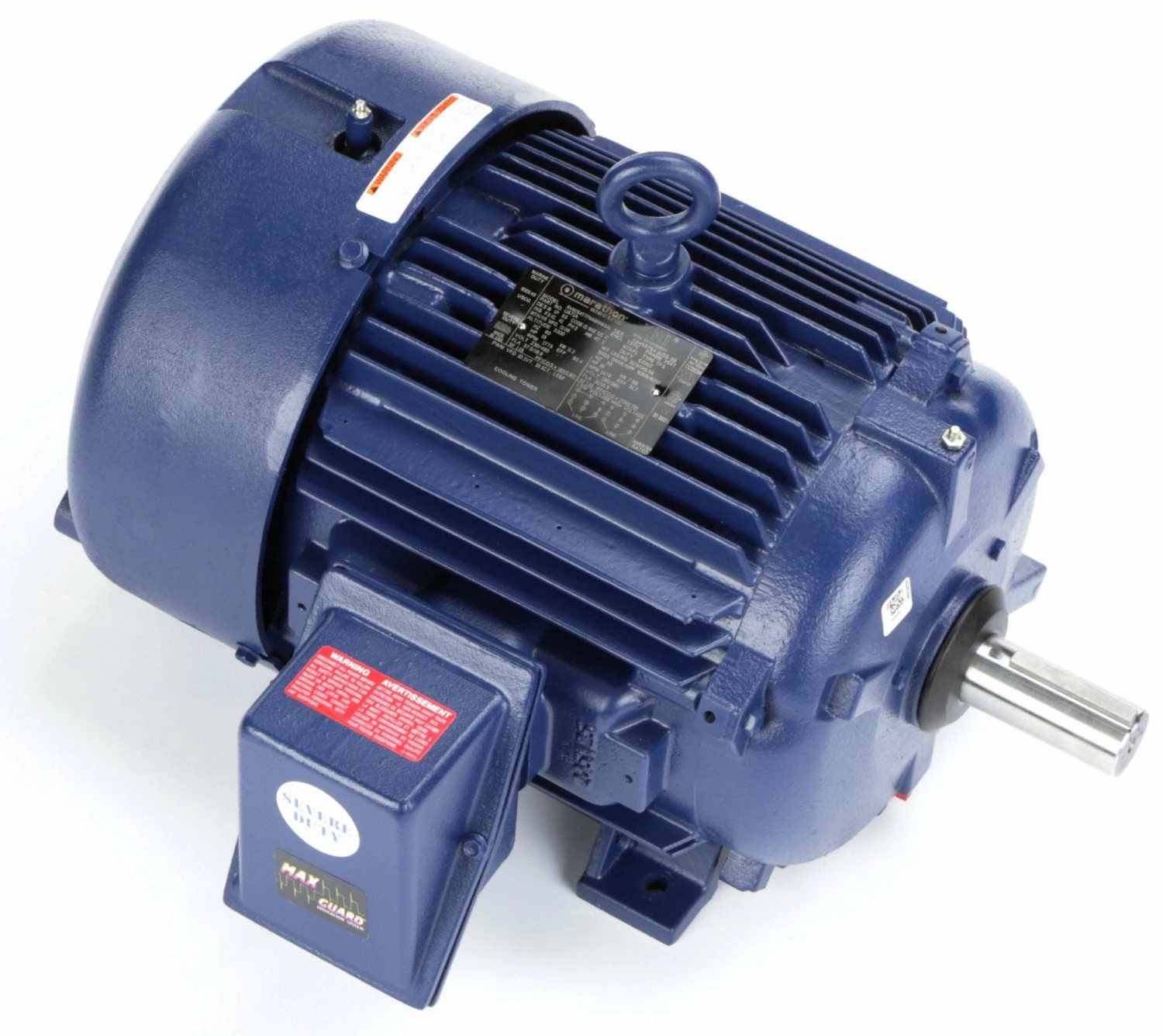

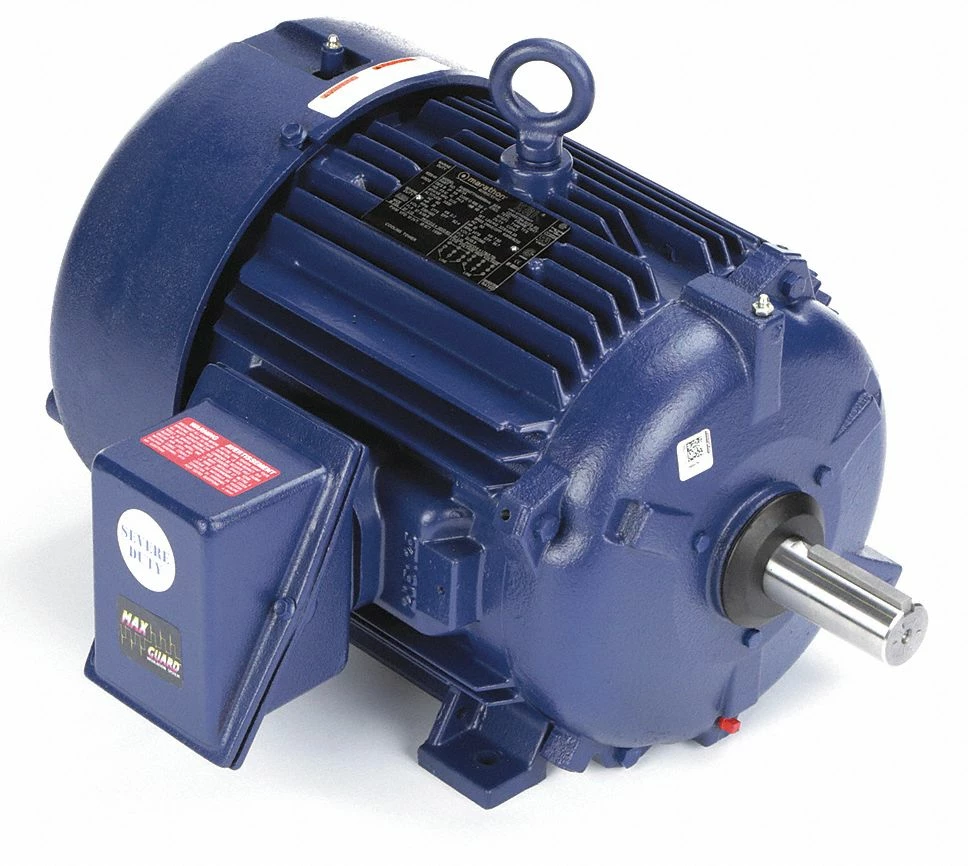

Marathon Motors 15 HP Cooling Tower Motor,3-Phase,1775 Nameplate RPM,230/460 Voltage,Frame 254T – 254TTFCD16568
Original price was: $349.00.$95.99Current price is: $95.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Cooling Tower Motor; Motor Application: Cooling Tower; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 15; Nameplate RPM: 1775; Frame: 254T; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 37.5/18.8; Phase: 3; Hz: 60/50; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Ambient Temperature: 40 Degrees C; Shaft Dia.: 1 5/8 in; Shaft Length: 4 3/16 in; Length Less Shaft: 19 1/4 in; Overall Length: 23 7/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 93.6 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Finish: Blue Epoxy; Standards: CSA (LR2025), IP55, UL (E49747; Warranty: 1 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460
