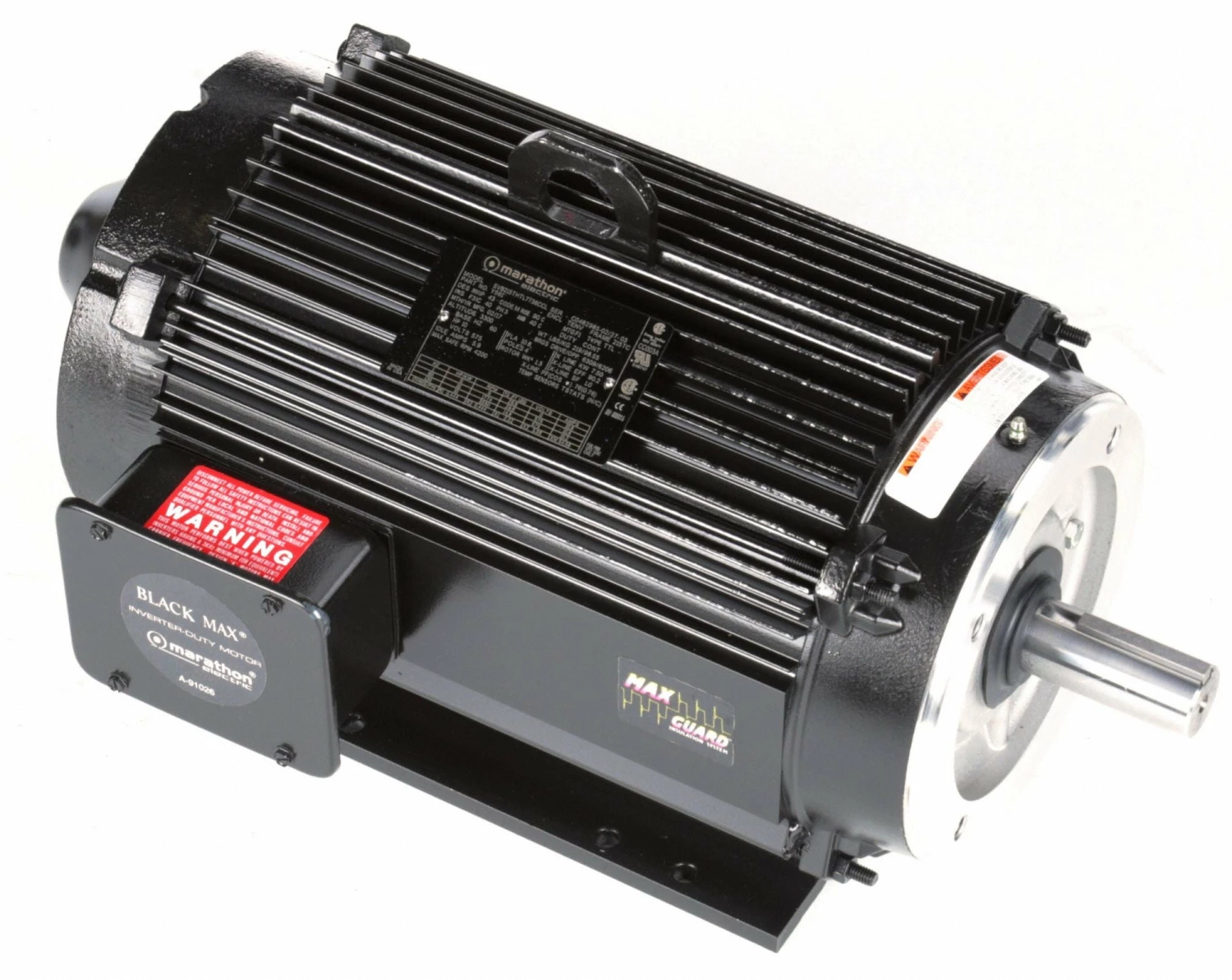

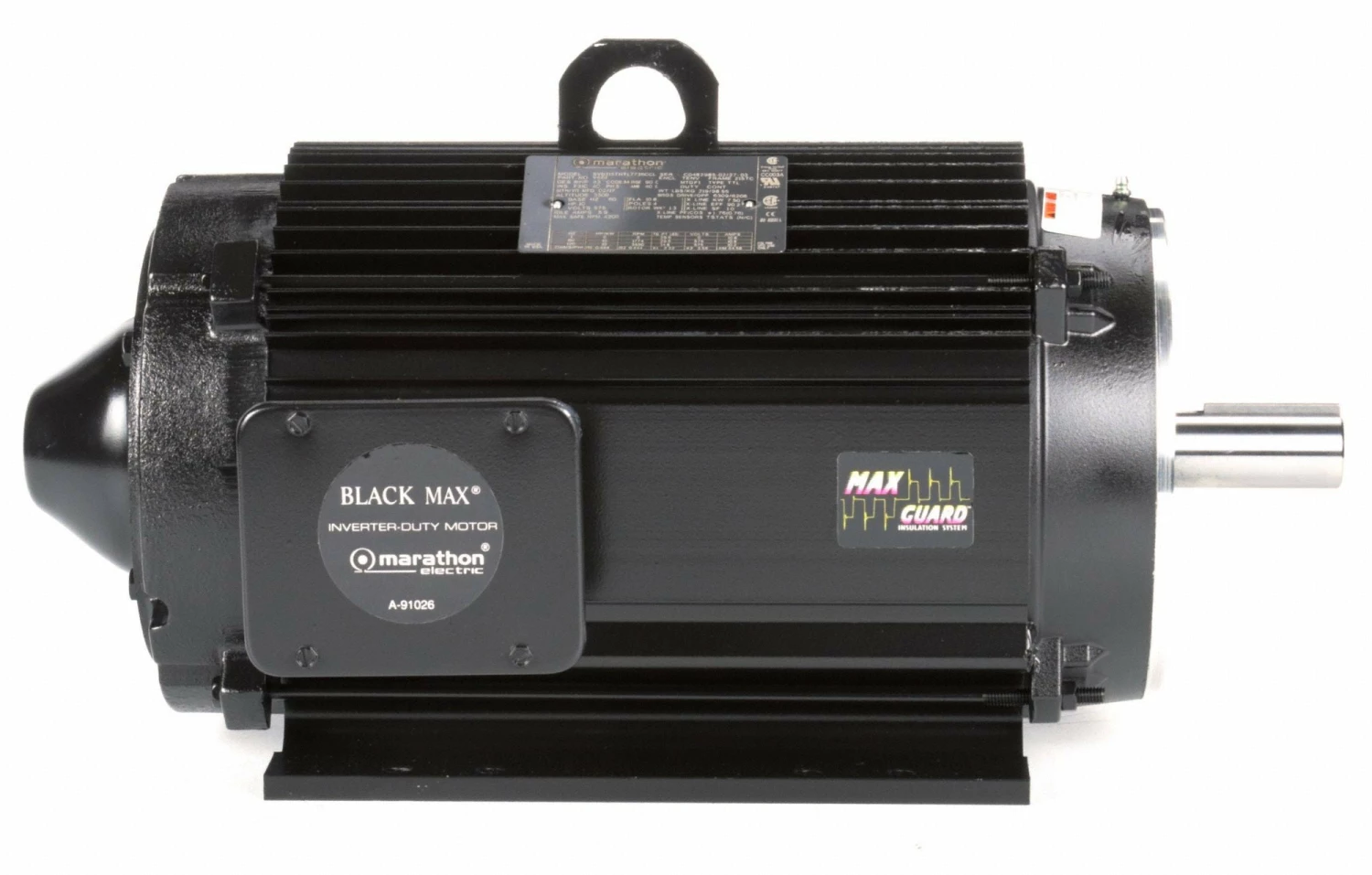

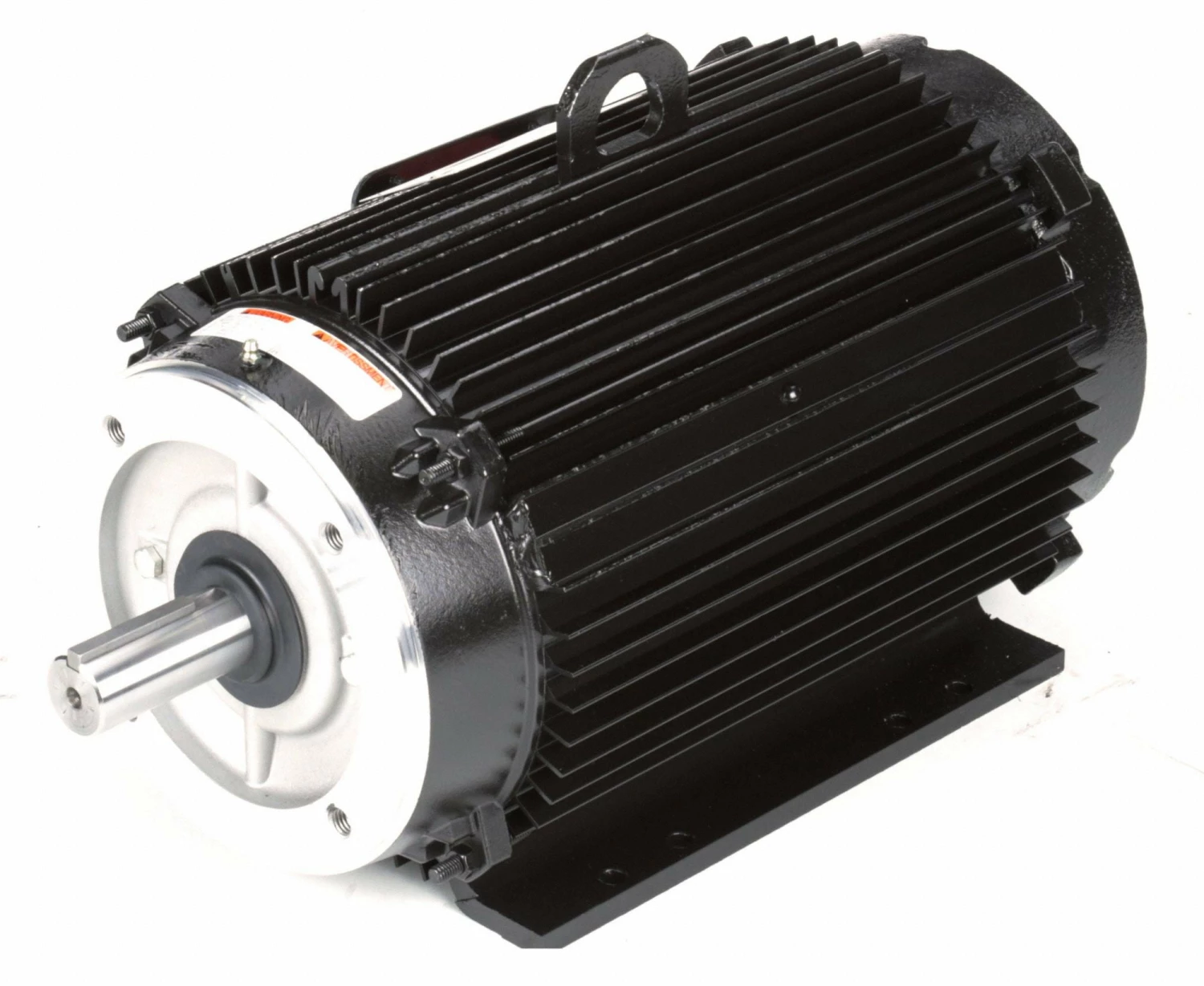

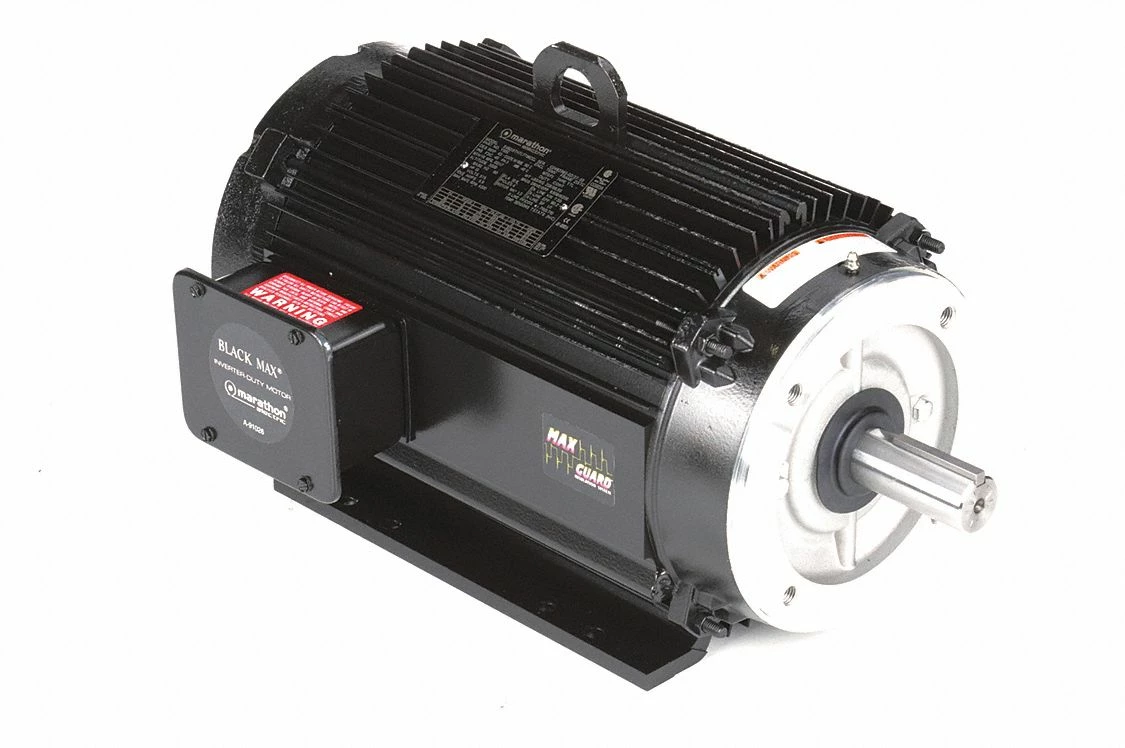

Marathon Motors 10 HP Vector Motor,3-Phase,1774 Nameplate RPM,575 Voltage,Frame 215TC – 215THTL7736
Original price was: $364.00.$96.99Current price is: $96.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 10; Torque: 29.6 lb-ft; Nameplate RPM: 1774; Speed Range: 1000:1 CT; Max. Speed: 4,200 RPM; Frame: 215TC; Max. Operating Frequency: 120 Hz; Voltage: 575; Hz: 60; Phase: 3; Full Load Amps: 10.8; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: F; Insulation Feature: MAX GUARD Class F; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 90.2 %; Motor Efficiency Group: Energy Efficient; NEMA Design: A; Motor Frame Material: Cast Aluminum; Finish: Black; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: Yes; Motor Shaft Design: Keyed; Shaft Dia.: 1 3/8 in; Shaft Length: 3 1/8 in; Overall Length: 23 1/16 in; Standards: CE, CSA Certified (LR2025), UL Listed (E49747); RPM Range: 1701-1800; Voltage Compatibility: 575
