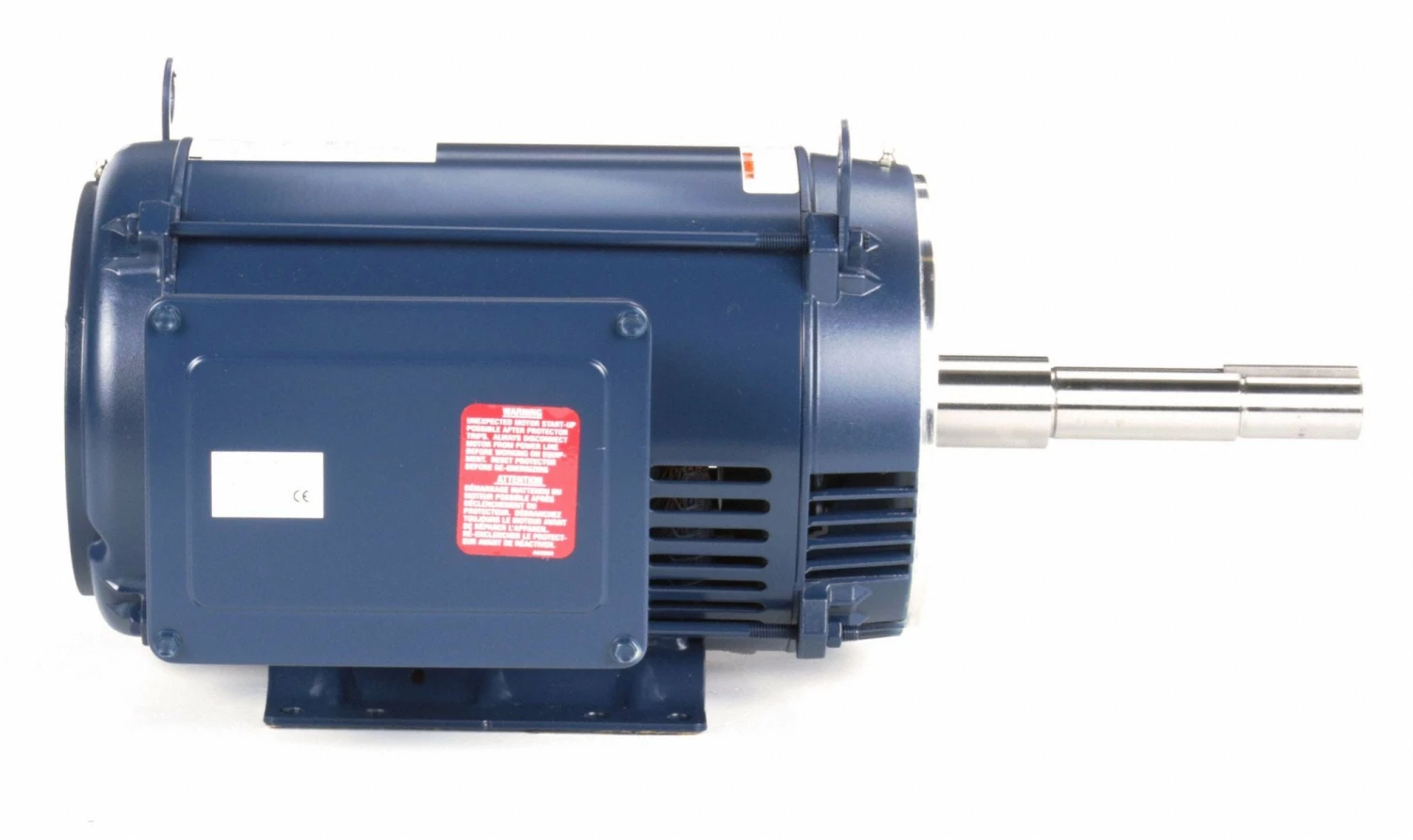

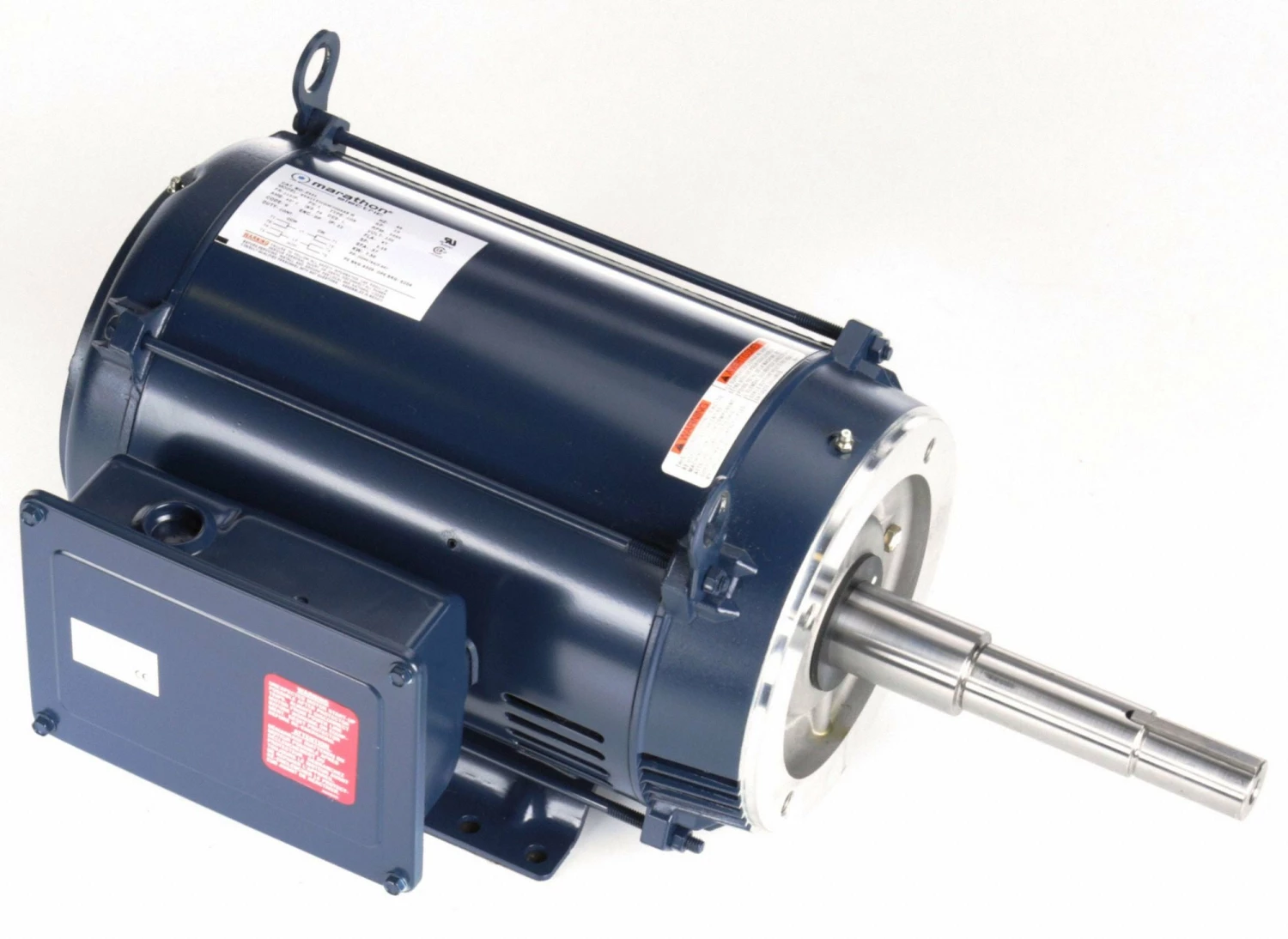

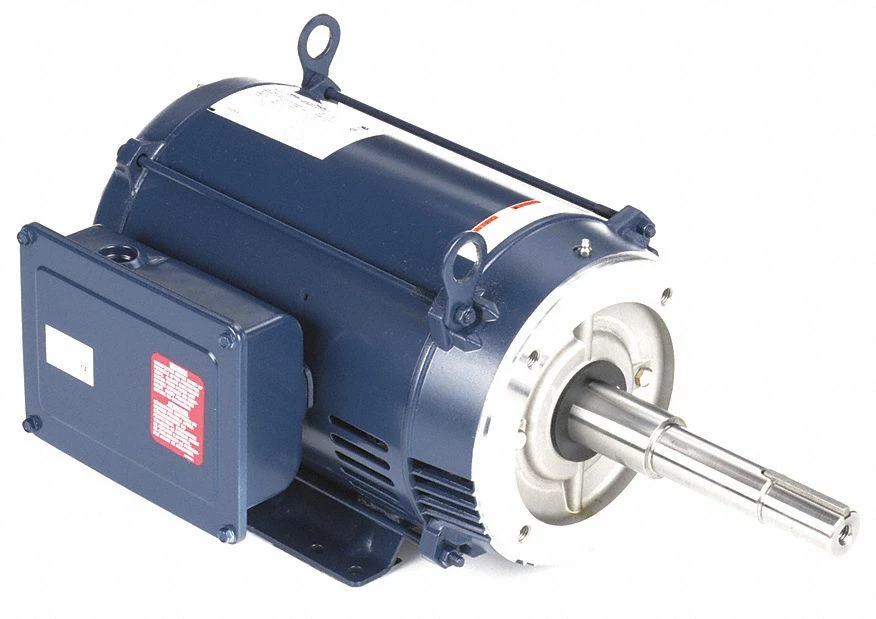

Marathon Motors 10 HP Close-Coupled Pump Motor,Capacitor-Start,3465 Nameplate RPM,230 Voltage,215JP – 215TCDW7004
Original price was: $355.00.$96.99Current price is: $96.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: Capacitor-Start; Motor Enclosure Design: Open Dripproof; HP: 10; Nameplate RPM: 3465; Frame: 215JP; Motor Shaft Rotation: CW/CCW; Voltage: 230; Full Load Amps: 47; Phase: 1; Hz: 60; Motor Mounting Type: Face/Base; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 1 3/4 in; Shaft Length: 8 1/8 in; Motor Shaft Design: Keyed; Length Less Shaft: 15 11/16 in; Overall Length: 23 13/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 81.5 %; Motor Efficiency Group: Standard Efficient; Inverter Rated: No; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 115/230, 120/240, 230, 240
