Washdown Motor; Motor Application: Washdown; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1; Nameplate RPM: 1760; Frame: 56HC; NEMA Design: B; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 3.2/1.6; Phase: 3; Hz: 60/50; Motor Mounting Position: All Angle; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 4 1/4 in; Motor Shaft Design: Keyed; Body Dia.: 6 1/2 in; Length Less Shaft: 15 9/16 in; Overall Length: 17 1/2 in; Ins. Class: F; RPM Range: 1701-1800; Duty: Continuous; Shaft Material: 303 Stainless Steel; Conduit Box: Cast Aluminum with Buna-N Gasketed Cover; Drain Plugs: (4) Shaft End, (4) Lead End, (2) In Conduit Box; Endshields: 380 Aluminum Alloy; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 86.5 %; CC Number: CC003A; Application: Washguard; Standards: CE Approved, CSA (LR2025), UL (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
-68%

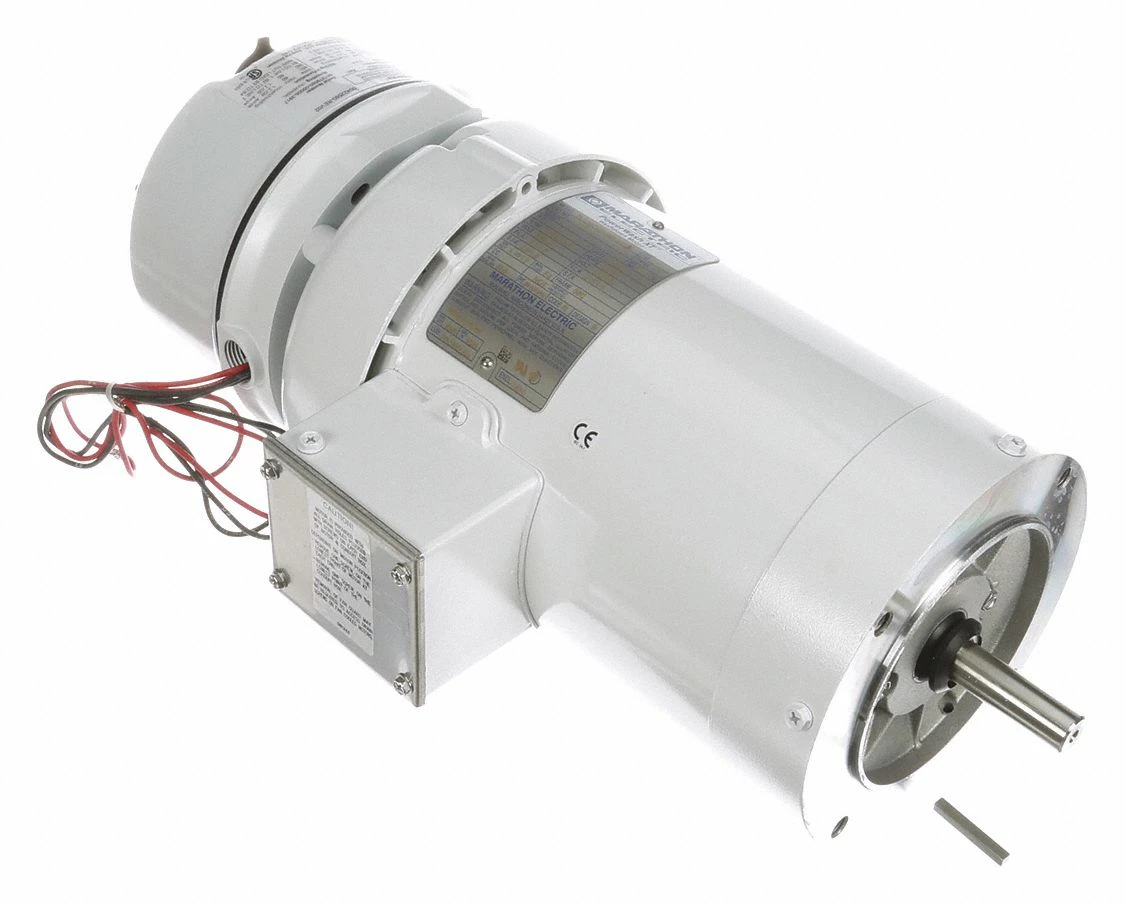

Marathon Motors 1 HP Washdown Motor,3-Phase,1760 Nameplate RPM,230/460 Voltage,Frame 56HC – 056T17W99046
Original price was: $305.00.$96.99Current price is: $96.99.
