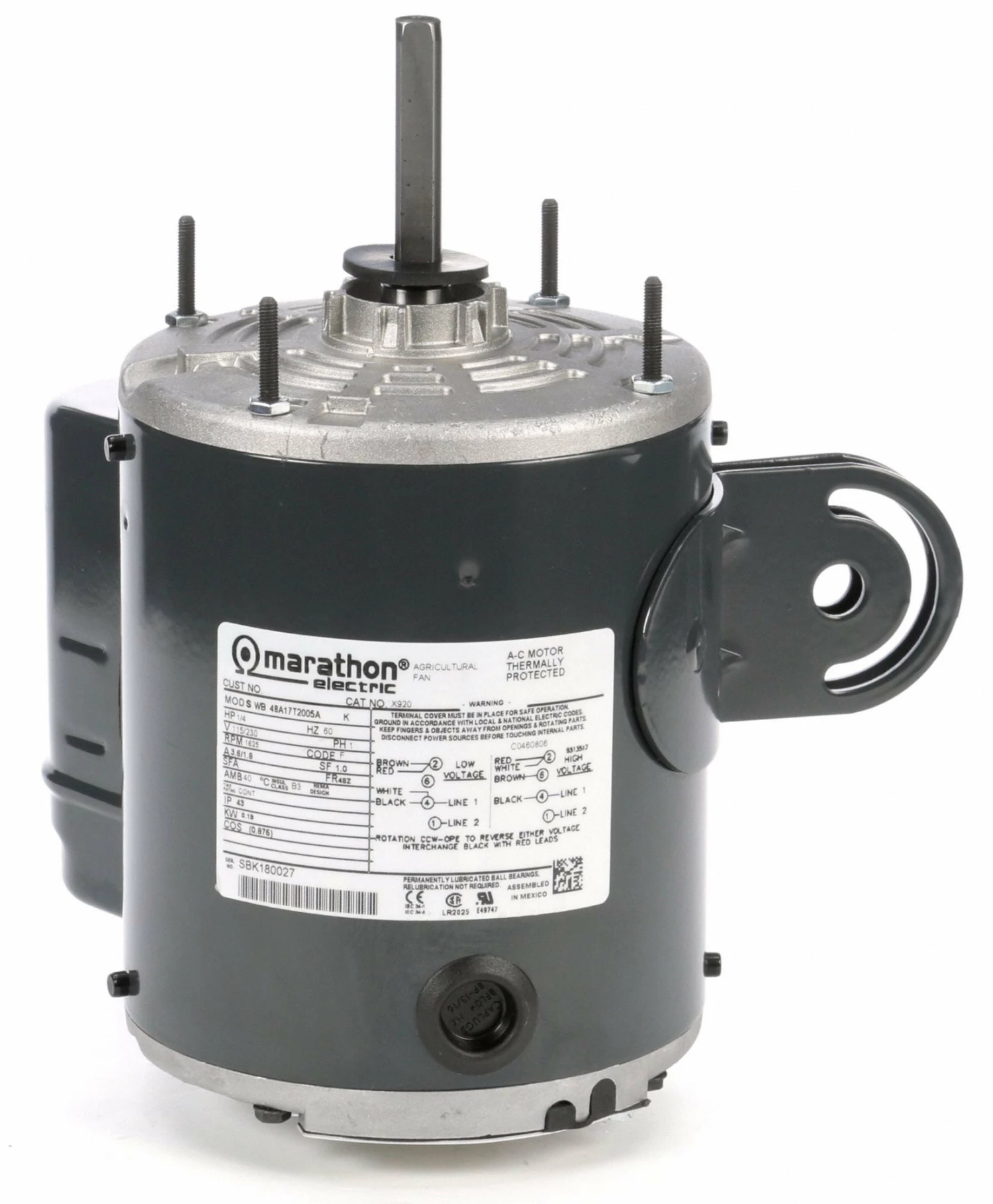

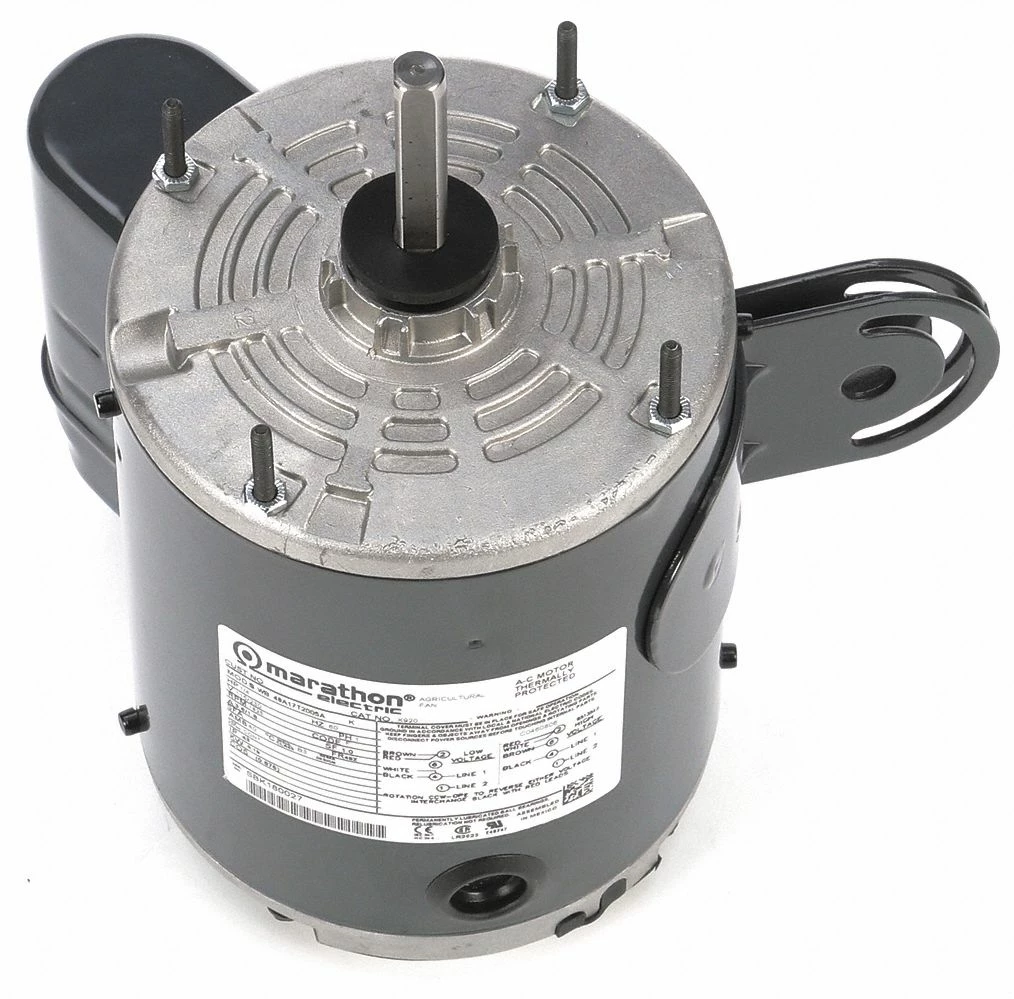

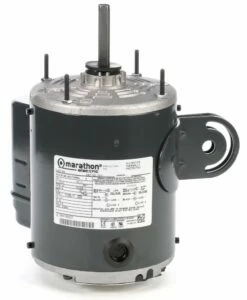

Marathon Motors 1/4 HP Pedestal Fan Motor, Permanent Split Capacitor, 1625 Nameplate RPM,115/230 Voltage, Frame 48Z – 048A17T2005
Original price was: $285.49.$96.99Current price is: $96.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Pedestal Fan Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/4; No. of Speeds: 1; Voltage: 115/230; Motor Shaft Rotation: CW/CCW; Frame: 48Z; Motor Enclosure Design: Totally Enclosed Nonventilated; Motor Mounting Type: Yoke; Shaft Dia.: 1/2 in; Shaft Length: 2 9/16 in; Motor Thermal Protection: Auto; 10 Ft. Cord and Pull Chain Switch: No; Nameplate RPM: 1625; Motor Application: HVAC/R; Motor Sub Application: Pedestal Fans; Full Load Amps: 3.6/1.8; Hz: 60; Motor Service Factor: 1; Max. Ambient Temp.: 40 Degrees C; Ins. Class: B; Duty: Continuous; Motor Bearings: Ball; Body Dia.: 5 3/4 in; Overall Length: 10 9/16 in; Motor Shaft Design: Double-Flat; Application: Pedestal Fans; Capacitor Required: Included; Standards: CSA Certified (LR2025), UL Recognized (E6312); Manufacturers Warranty Length: 1 yr
