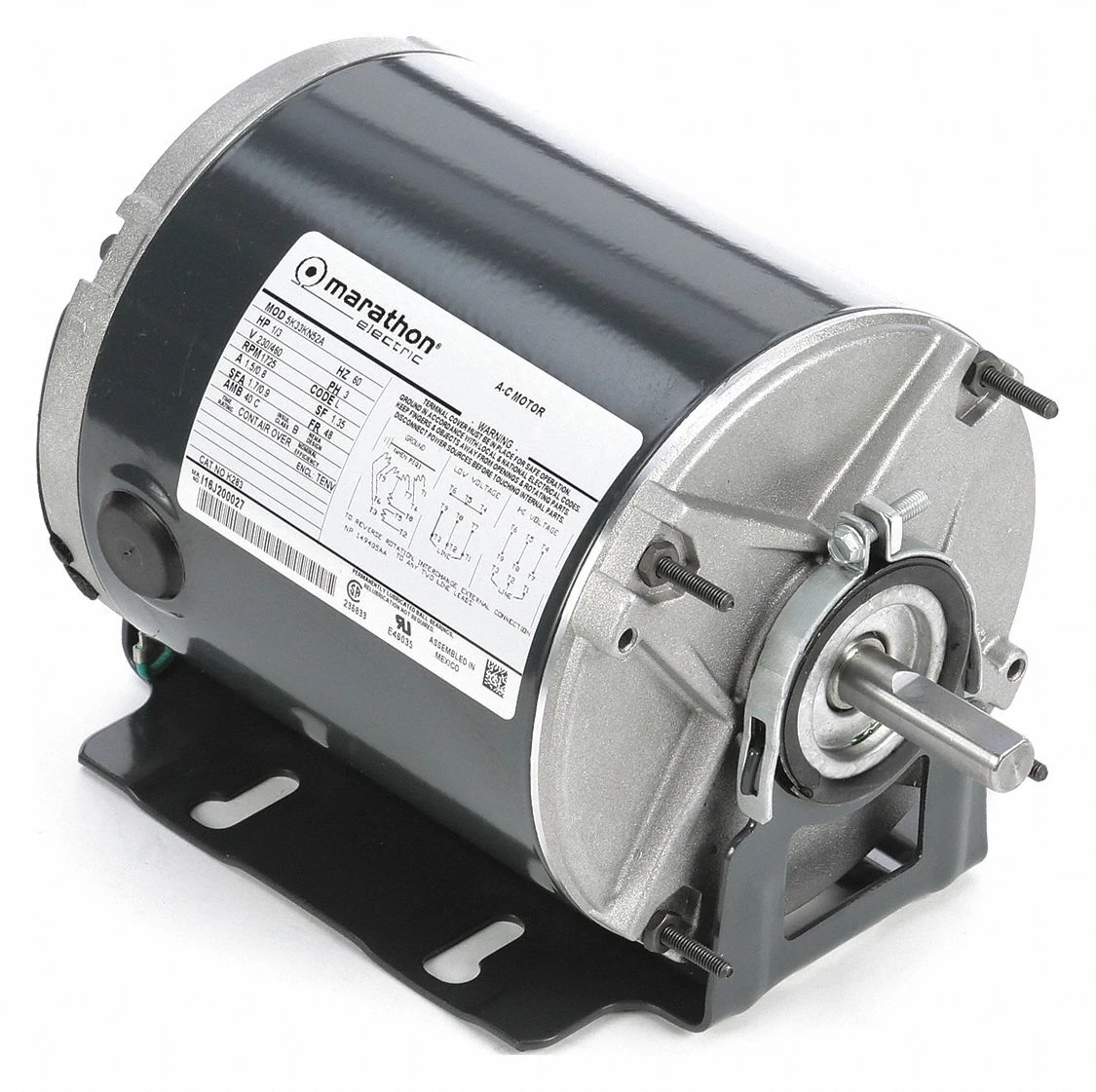

Marathon Motors 1/3 HP Belt Drive Motor, 3-Phase, 1725 Nameplate RPM, 230/460 Voltage, Frame 48 – 5K33KN52
Original price was: $390.00.$98.99Current price is: $98.99.
- Shop with confidence, we guarantee quality.
- Shop the Best Quality Online
- Secure Payments, Secure Shopping
- Multiple payment options for secure shopping with SSL
Belt Drive Motor; Motor Application: HVAC/R; Motor Sub Application: Belt Drive Fan/Blower; Motor Design: 3-Phase; HP: 1/3; No. of Speeds: 1; Nameplate RPM: 1725; Voltage: 230/460; Frame: 48; Motor Enclosure Design: Totally Enclosed Nonventilated; Motor Mounting Type: Cradle Base; Motor Mounting Position: Horizontal; Hz: 60; Full Load Amps: 1.5/0.8; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.35; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Flat; Shaft Dia.: 1/2 in; Shaft Length: 1 1/2 in; Length Less Shaft: 7 11/16 in; Overall Length: 9 3/16 in; Body Dia.: 5 5/8 in; Mounting Stud Pattern: 3-5/8 in x 3-5/8 in; Resilient Ring Dia.: 2 1/4 in; Ring to Ring Center: 7 9/16 in; Nominal Efficiency: 60.2 %; Duty: Continuous; Phase: 3; Manufacturers Warranty Length: 1 yr; Standards: CSA (MC236833), UL (E46035); Voltage Compatibility: 220-230/460, 230/460, 460
