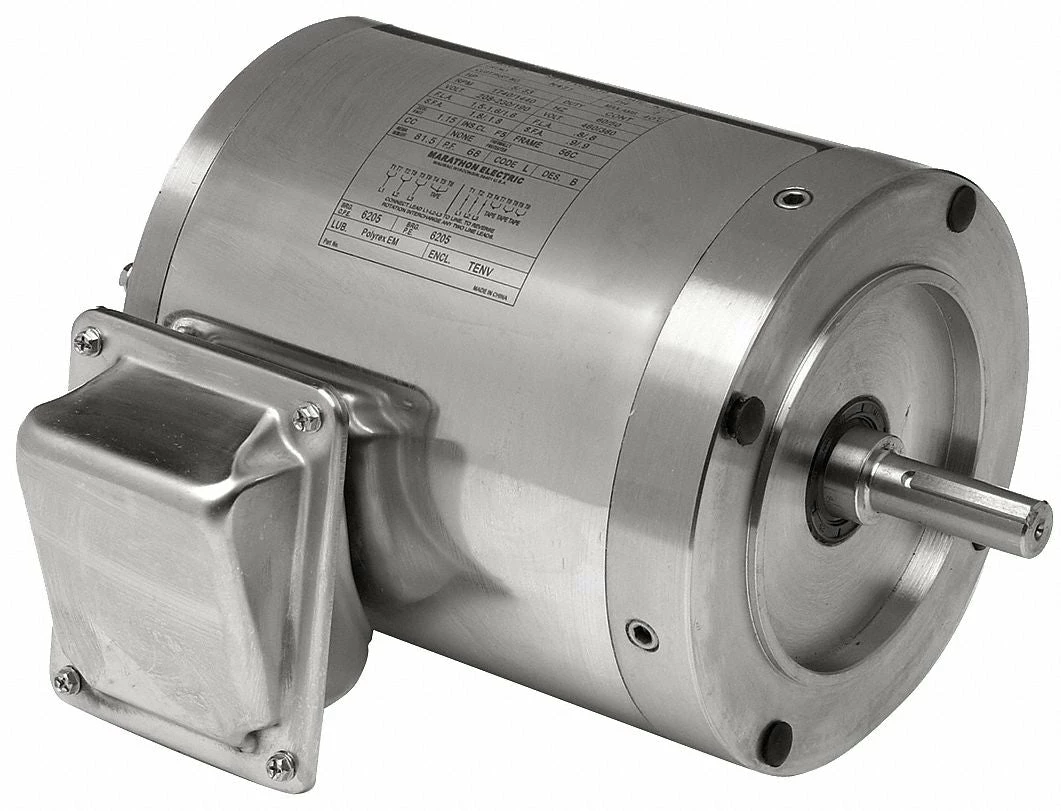

Marathon Motors 1 1/2 HP Washdown Motor,3-Phase,1750 Nameplate RPM,230/460 Voltage,Frame 56C – 056T17W99028

Washdown Motor; Motor Application: Washdown; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1 1/2; Nameplate RPM: 1750; Frame: 56C; NEMA Design: B; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 4.8/2.4; Phase: 3; Hz: 60/50; Motor Mounting Position: All Angle; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Stainless Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Motor Shaft Design: Keyed; Body Dia.: 6 1/2 in; Length Less Shaft: 10 13/16 in; Overall Length: 12 11/16 in; Ins. Class: F; RPM Range: 1701-1800; Duty: Continuous; Shaft Material: 303 Stainless Steel; Conduit Box: 300 Annealed Stainless Steel; Endshields: 300 Series Stainless Steel; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 94.1 %; CC Number: CC003A; Application: Washguard; Standards: CE Approved, CSA (LR2025), UL (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
