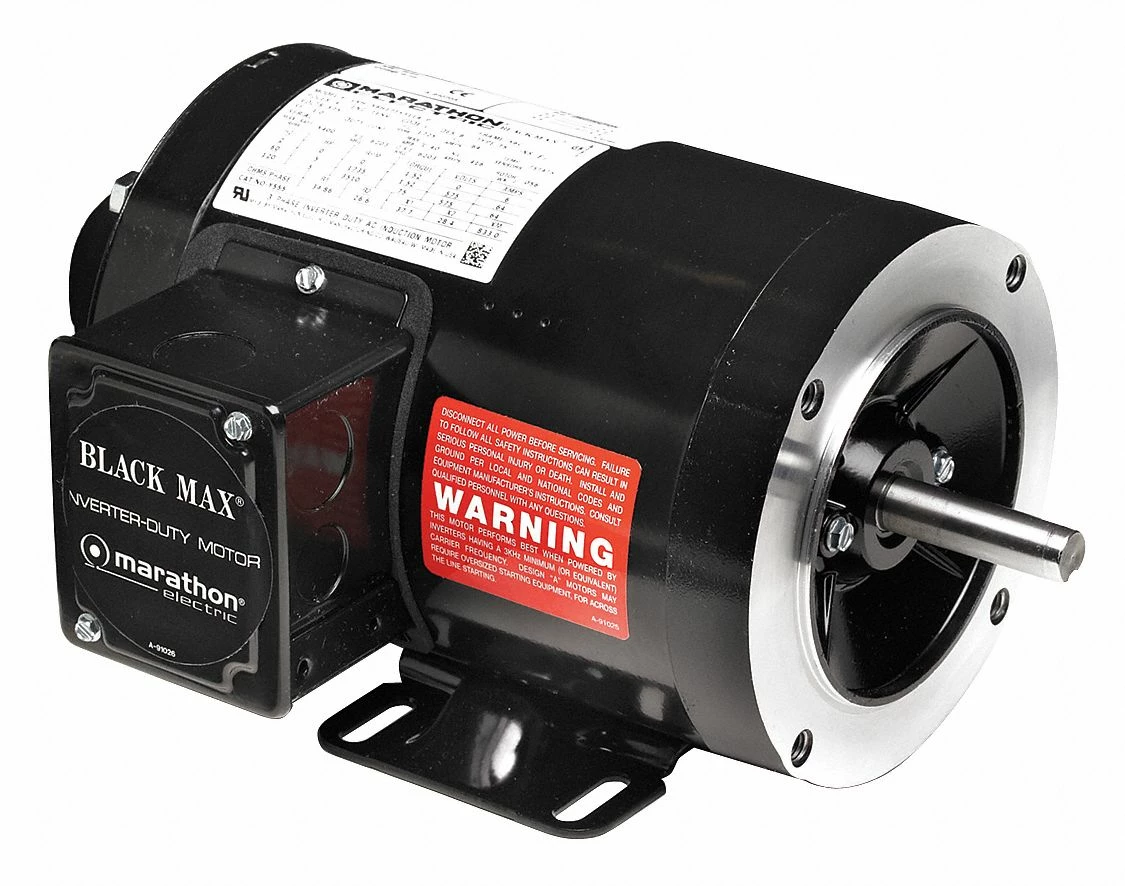

Marathon Motors 1 1/2 HP Vector Motor,3-Phase,1755 Nameplate RPM,230/460 Voltage,Frame 145TC – 145THTR5326

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 1 1/2; Torque: 4.5 lb-ft; Nameplate RPM: 1755; Speed Range: 1000:1 CT; Max. Speed: 5,400 RPM; Frame: 145TC; Max. Operating Frequency: 120 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 4.8/2.4; Motor Mounting Type: Face/Base; Motor Mounting Position: All Angle; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: F; Insulation Feature: Patented MAX GUARD; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 87.5 %; Motor Efficiency Group: Energy Efficient; NEMA Design: A; Motor Frame Material: Rolled Steel; Finish: Black; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 5/8 x 1-3/4 in; Motor Shaft Design: Keyed; Shaft Dia.: 7/8 in; Shaft Length: 2 1/8 in; Overall Length: 16 1/16 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E6312); Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460
